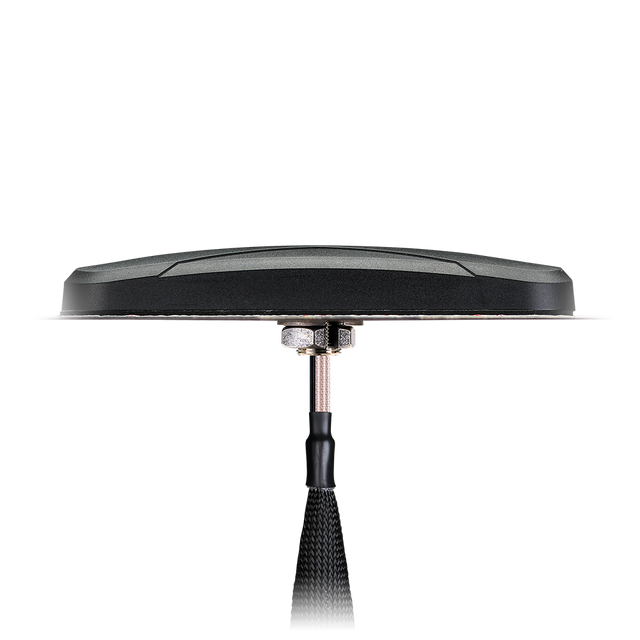

MA460.K.LBIC.002 Antenna Low-Profile High-Gain 2x LTE MIMO 4G/LTE, GNSS, Wi-Fi screw mount Storm 4-in-1 for Internet of Things (IoT), Remote Asset and Pipeline Monitoring, HD Video over LTE, First Responder and Emergency Services

The Storm MA460 is a low-profile, heavy-duty external antenna designed for telematics and M2M deployments that need strong cellular MIMO performance alongside satellite navigation and dual-band Wi-Fi.

• 4-in-1 combination design: integrates LTE MIMO, GNSS, and Wi-Fi in a single low-profile housing.
• Built for harsh environments: rugged, waterproof enclosure suited to demanding field installations.
• Optimized RF performance: engineered to support high data-rate cellular links and reliable positioning.

Typical applications include:

• Internet of Things (IoT)
• Remote Asset and Pipeline Monitoring
• HD Video over LTE
• First Responder and Emergency Services
• Automotive Vehicle Tracking and Telematics

Connections

2x LTE MIMO 698-960/1710-2170/2490-2690/3300-3600MHz
1x Wi-Fi 2.4GHz/5.8GHz
1x GPS-GLONASS-GALILEO-BeiDou

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 216*93*31mm 3M CFD-200 and RG-174 with SMA(M)/RP-SMA(M) connectors
Weight: 1120g

4G/3G/2G LTE (2x MIMO)

Frequency: 698~803, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690, 3300~3600 MHz
Polarization: Linear
VSWR: < 3
Envelope Correlation Coefficient: All bands < 0.3
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

Wi-Fi

Frequency: 2400~2500, 4900~5850 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: < 2
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Frequency: BeiDou: 1561.098±2.046MHz; GPS/GALILEO: 1575.42±1.023MHz; GLONASS: 1602±5MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1 Max
Gain@3V: 1561MHz: 29±3dBi; 1575.42MHz: 29±3dBi; 1602MHz: 32±3dBi
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
