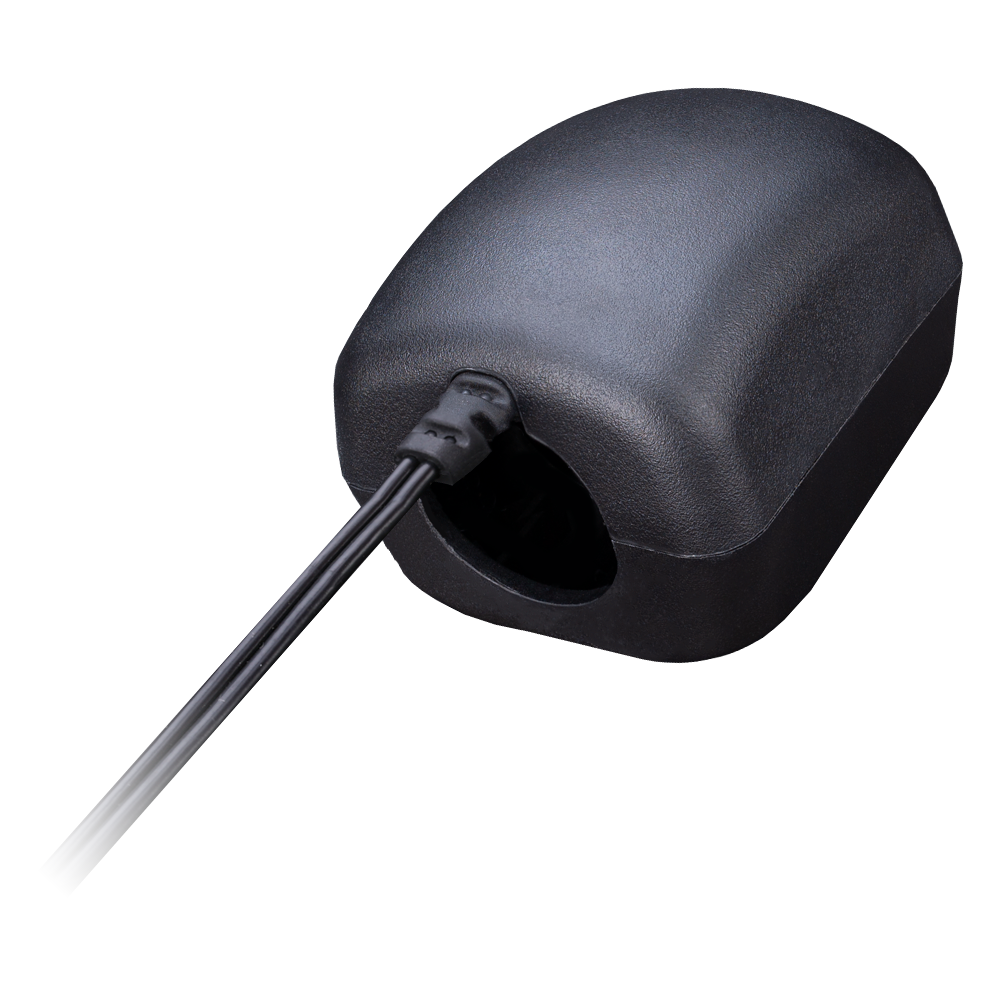

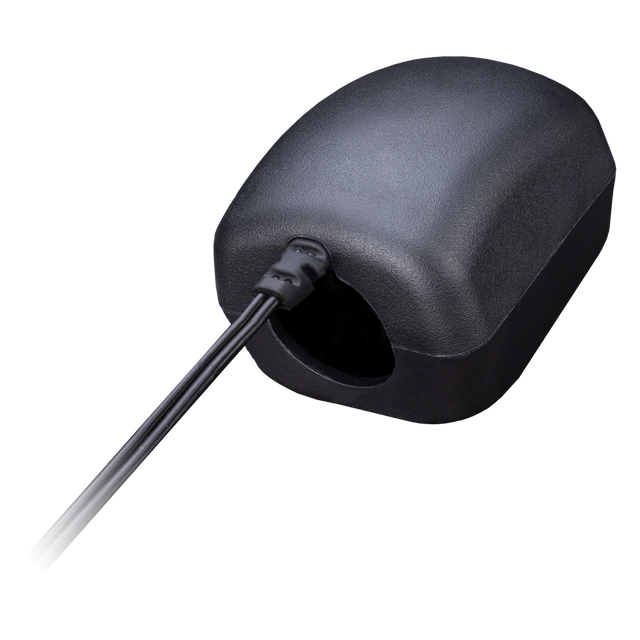

MA5022.A.AX.002 Antenna External GNSS, SDARS mirror rail mount 2-in-1 for Aftermarket automotive applications, Heavy-duty plant, Trucking requirements

The MA5022 is a rugged 2-in-1 mirror rail mount antenna designed for combined GNSS positioning and SDARS reception in demanding environments. Its clamping, two-part housing is built for heavy-duty use cases and is well-suited to aftermarket automotive installations where a robust, weather-resistant antenna is required.

• Rugged rail clamp design: Two-part housing screws around a rail/pole for secure mounting
• Designed for harsh environments: IP67-rated waterproof enclosure
• Dual-function performance: Supports GNSS (GPS/Galileo/BeiDou) plus SDARS (Gen 3)
• Automotive-focused build quality: TS16949 approved production

Connections

1x GNSS (GPS/Galileo/BeiDou)
1x SDARS

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Mirror Rail Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50 Ω
Dimensions: 151.8*59*13 mm
Through Hole Diameter: 31.5mm
Weight: 0.22kg

GNSS

Standards: GPS/GALILEO/BeiDou
Frequency: 1559.052-1563.144 MHz (BeiDou), 1574.397-1576.443 MHz (GPS L1)
Polarization: RHCP
Return loss (GPS L1): < -10 dB
Efficiency: 57%
Passive Gain at Zenith (GPS L1): +3 dBi typ.
Average Gain (GPS L1): -2.3dB
Impedance: 50 Ω
Connector Type: FAKRA SMB Code C
Cable Length: 30cm
Cable Type: RG-174

SDARS

Frequency: 2320-2345MHz
Polarization: LHCP
Return loss: < -10 dB
Efficiency: >50%
Passive Gain (at zenith): 5.4dBi typ
Average Gain: >-3.4dB
Impedance: 50 Ω
Connector Type: FAKRA SMB Code K
Cable Length: 30cm
Cable Type: RG-174

Download Datasheet PDF
