Description

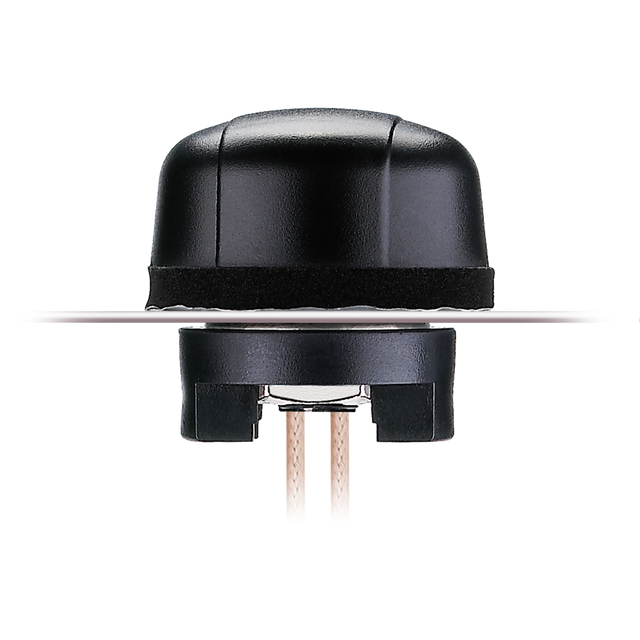

The Hercules MA510 is a low-profile, heavy-duty external MIMO antenna designed to support high data-rate wireless links with strong isolation between antenna elements. Its rugged, vandal-resistant housing and weatherproof design make it well suited for demanding deployments where durable, reliable Wi-Fi connectivity is required.
- Dual-band performance: Supports 2.4GHz and 5.8GHz bands for flexible wireless coverage.
- MIMO capability: Built to improve throughput and link stability for modern Wi-Fi systems.
- Rugged design: Heavy-duty construction for harsh environments and long-term outdoor use.
Typical use cases include: transportation, remote monitoring, smart meter systems, construction equipment, and public safety.
Connections
2x Wi-Fi MIMO 2.4~2.5GHz / 4.8~5.8GHz
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount, Pole Mount, Wall Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP65
Dimensions: 47.8 * 47.8 * 28.5mm (Also available in White)
Weight: 135g
Wi-Fi / ISM (MIMO)
Frequency: 2.4~2.5GHz; 4.8~5.8GHz
Polarization: Linear
Impedance (ohms): 50
Min Isolation (dB): -22 (2.4~2.5GHz); -28 (4.8~5.8GHz)
Max VSWR: 2.0:1
Max Return Loss (dB): -10
Peak Gain (dBi): 4.2 (2.4~2.5GHz); 4.0 (4.8~5.8GHz)
Efficiency (%): 60 (2.4~2.5GHz); 40 (4.8~5.8GHz)
Average Gain (dB): -2.2 (2.4~2.5GHz); -3.9 (4.8~5.8GHz)
Radiation Properties: Omni
Max Input Power: 2W max
Connector Type: 2x RP-SMA Male
Cable Length: 100cm
Cable Type: RG-316
