Description

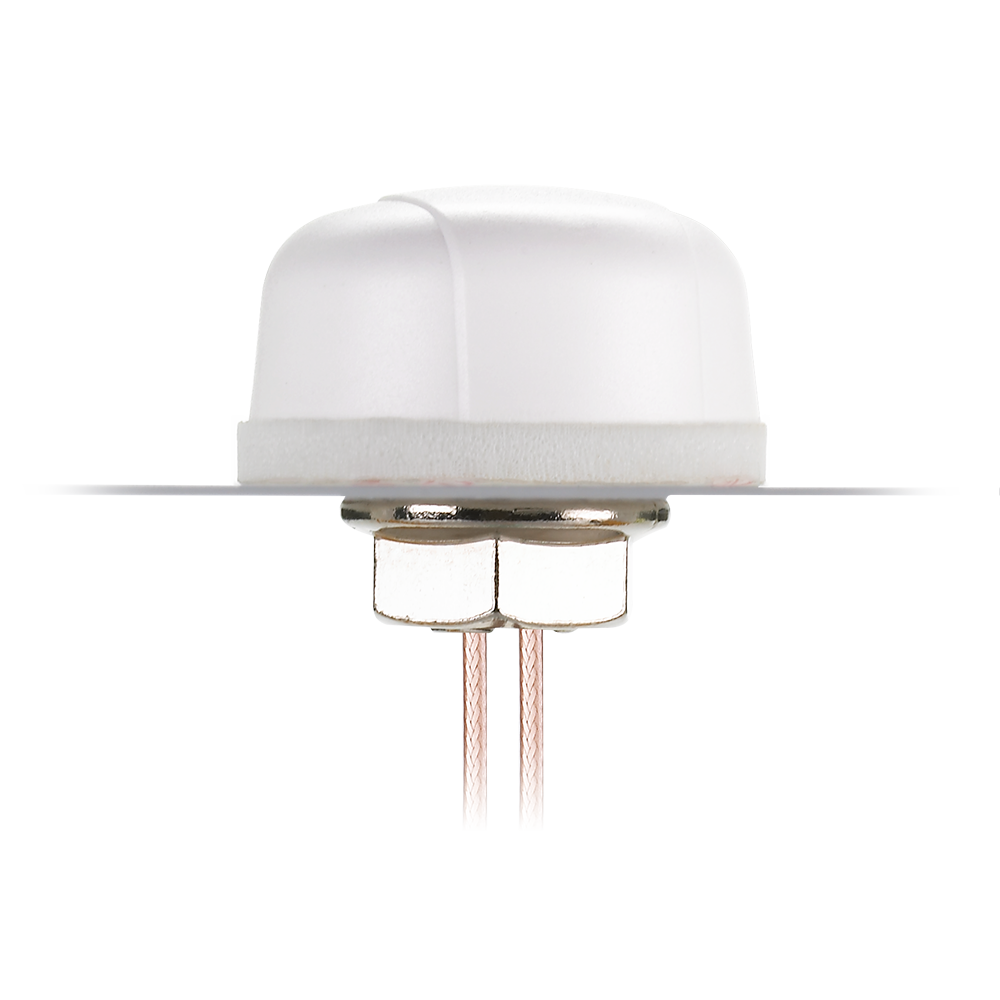

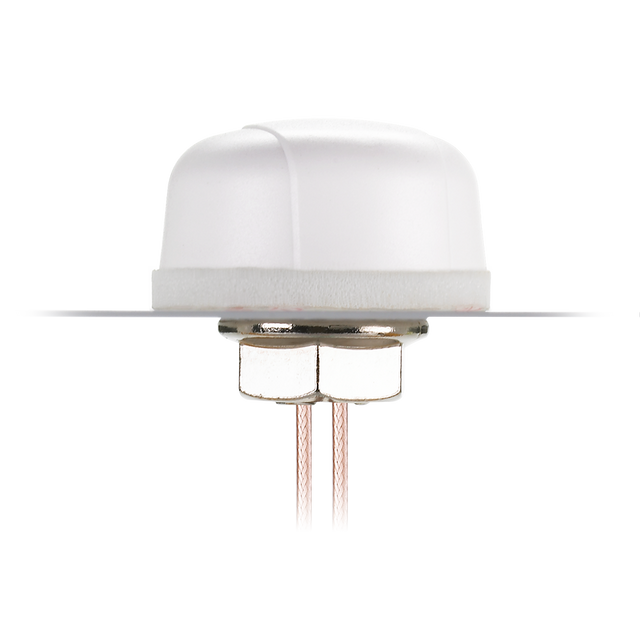

This low-profile, heavy-duty external antenna is designed to deliver reliable dual-band Wi-Fi MIMO performance in demanding environments. Its rugged, vandal-resistant housing and weatherproof design make it well suited for long-term outdoor and mobile installations.
- Dual-band Wi-Fi MIMO: Supports 2.4 GHz and 5.8 GHz operation for robust connectivity.
- High isolation between antenna elements: Helps improve MIMO performance in compact installations.
- Rugged enclosure: UV and vandal-resistant housing with an IP65-rated enclosure for harsh environments.
- Permanent mounting: Screws down permanently onto a roof or metal panel and can be pole- or wall-mounted.
Typical use cases include: transportation, remote monitoring, smart meter systems, construction equipment, and public safety deployments.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount, Wall Mount, Pole Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
IP Rating: IP65
Dimensions: 49 * 49 * 28.5mm IP65 Rated Enclosure (Also available in Black)
Weight: 134g
Wi-Fi MIMO Port A
Frequency: 2.4~2.5 GHz; 4.8~5.8 GHz
Standards: IEEE 802.11n, IEEE 802.11ac, WLAN, Bluetooth, ZigBee, ISM
Polarization: Linear
Impedance: 50Ω
Max VSWR: 2.0:1
Min Isolation (dB): -22 (2.4~2.5 GHz), -28 (4.8~5.8 GHz)
Peak Gain (dBi): 4.2 (2.4~2.5 GHz), 4.0 (4.8~5.8 GHz)
Efficiency (%): 60 (2.4~2.5 GHz), 40 (4.8~5.8 GHz)
Radiation Properties: Omni
Max Input Power: 2W max
Connector Type: RP-SMA Male (Reverse Polarity)
Cable Length: 100cm
Cable Type: RG-316
Wi-Fi MIMO Port B
Frequency: 2.4~2.5 GHz; 4.8~5.8 GHz
Standards: IEEE 802.11n, IEEE 802.11ac, WLAN, Bluetooth, ZigBee, ISM
Polarization: Linear
Impedance: 50Ω
Max VSWR: 2.0:1
Min Isolation (dB): -22 (2.4~2.5 GHz), -28 (4.8~5.8 GHz)
Peak Gain (dBi): 4.2 (2.4~2.5 GHz), 4.0 (4.8~5.8 GHz)
Efficiency (%): 60 (2.4~2.5 GHz), 40 (4.8~5.8 GHz)
Radiation Properties: Omni
Max Input Power: 2W max
Connector Type: RP-SMA Male (Reverse Polarity)
Cable Length: 100cm
Cable Type: RG-316
