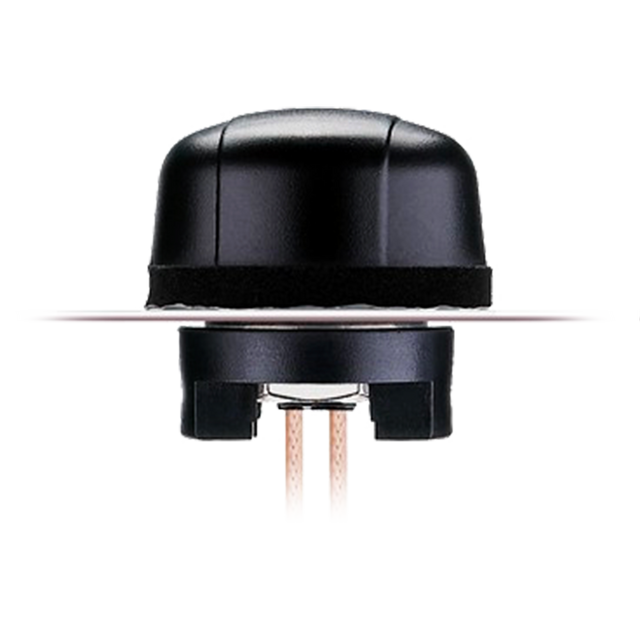

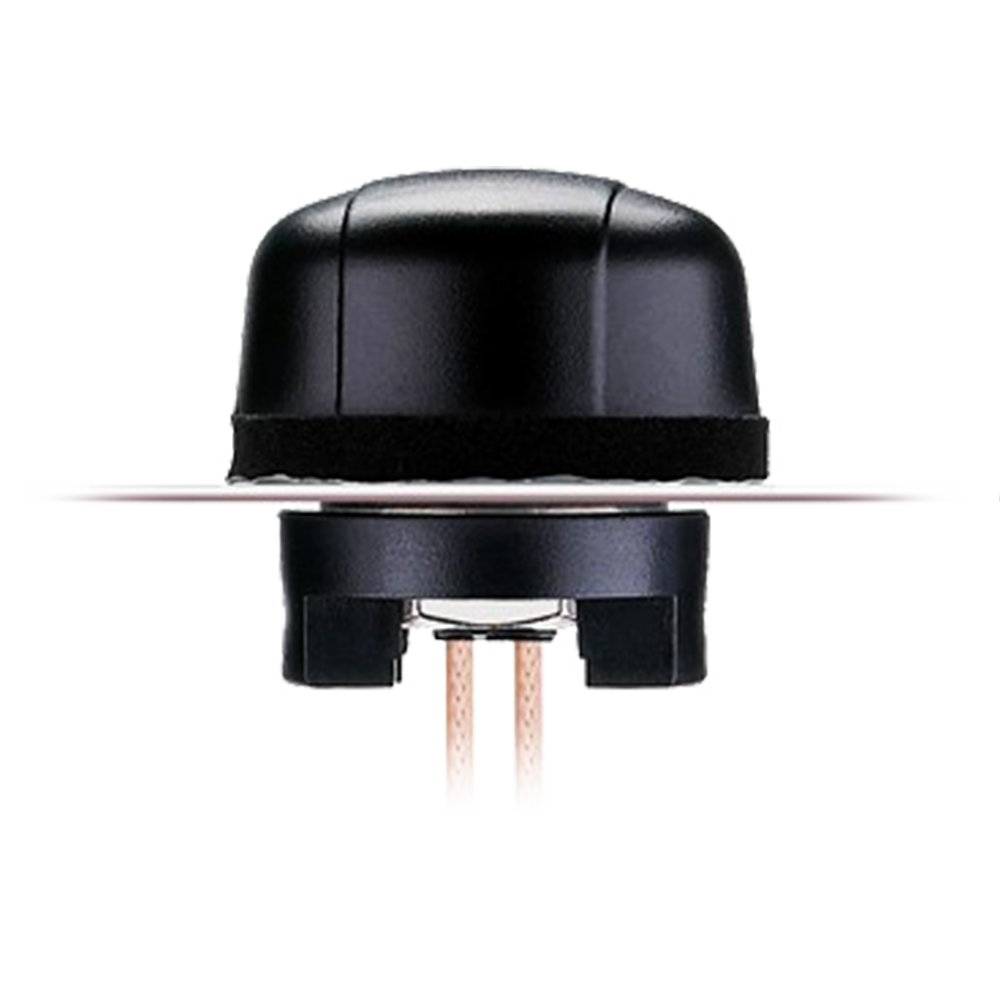

MA515.C.CG.001 Antenna External 2xMIMO Low-Profile Wi-Fi, Bluetooth, ISM permanent screw mount Hercules for Remote Monitoring, Smart Meter Systems, Construction Equipment, Public Safety

The Hercules MA515 is a heavy-duty, low-profile external MIMO antenna designed for 2.4GHz wireless applications where reliable throughput and robust mechanical performance are required. Its MIMO design supports improved channel capacity and reduced transmit power compared with SISO systems, while maintaining strong isolation between antenna elements for stable performance.

• MIMO performance for 2.4GHz wireless: built for high-speed Wi-Fi applications and other 2.4GHz ISM-band devices
• Rugged, low-profile housing: designed for harsh environments and long-term deployments
• Permanent mounting options: intended for mounting on a roof or metal panel and can also be pole- or wall-mounted

Typical use cases include remote monitoring, smart meter systems, construction equipment, and public safety deployments.

Connections

2x Wi-Fi/Bluetooth/ISM MIMO 2.4~2.5 GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount, Wall Mount, Pole Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP65
Dimensions: 49*49*29mm
Weight: 135g

Wi-Fi/Bluetooth/ISM 2.4GHz (Antenna 1)

Frequency: 2.4~2.5 GHz
Polarization: Linear
Impedance: 50Ω
VSWR (Max): 2.0:1
Return Loss (Max): -10 dB
Peak Gain: 3.0 dBi
Efficiency: 56%
Average Gain: -2.5 dB
Radiation Pattern: Omni
Isolation (Min): -25 dB
Max Input Power: 2W max
Connector Type: RP-SMA Male
Cable Length: 100cm
Cable Type: RG316

Wi-Fi/Bluetooth/ISM 2.4GHz (Antenna 2)

Frequency: 2.4~2.5 GHz
Polarization: Linear
Impedance: 50Ω
VSWR (Max): 2.0:1
Return Loss (Max): -10 dB
Peak Gain: 3.0 dBi
Efficiency: 56%
Average Gain: -2.5 dB
Radiation Pattern: Omni
Isolation (Min): -25 dB
Max Input Power: 2W max
Connector Type: RP-SMA Male
Cable Length: 100cm
Cable Type: RG316
