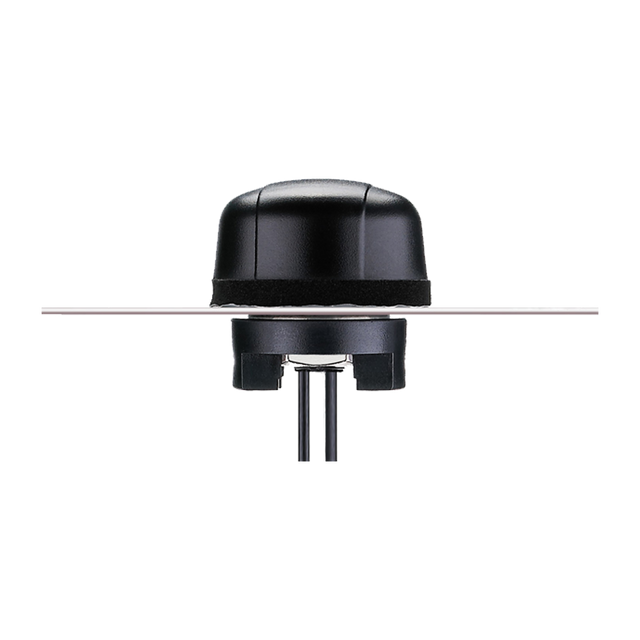

MA520.A.BC.008 Antenna Outdoor External Router 4G/LTE, Wi-Fi permanent mount Hercules 2-in-1 for Smart Metering, Routers and Gateways, Connected Enterprise

Hercules MA520 2-in-1 is a compact, low-profile permanent-mount antenna that combines cellular and dual-band Wi-Fi performance in a single rugged housing for external deployment on vehicles and outdoor assets. By integrating both radios into one enclosure, it helps simplify installations while supporting reliable connectivity for gateway and hotspot devices.

• 2-in-1 design: Cellular + dual-band Wi-Fi in one housing to reduce antenna count
• Rugged build: UV-resistant, vandal-resistant enclosure with an IP65 rating
• Permanent mount: Heavy-duty screw-mount format suited to demanding environments
• Designed for gateways: Well-suited to routers that provide Wi-Fi hotspots

Connections

1x Cellular 3G/2G (824-2170 MHz)
1x Wi-Fi Dual Band 2.4/5.8 GHz (2400-2500 MHz, 5150-5850 MHz)

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Combination
IP Rating: IP65
Dimensions: 48*48*29mm RoHS & REACH Compliant
Weight: 170 g

Cellular

Frequency: 824MHz - 2170MHz
Standards: HSPA/GSM/GPRS/CDMA/EVDO/UMTS/WCDMA 850/900/1800/1900/2100MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2
Gain (Max): 2.9 dBi
Radiation Pattern: Omni
Max Input Power: 10W
Connector Type: SMA(M) Straight
Cable Length: 200cm
Cable Type: RG-316

Wi-Fi / ISM

Frequency: 2400~2500 MHz, 5150~5850 MHz
Standards: Wi-Fi®/ISM/ZigBee® (Dual Band 2.4/5.8GHz)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 10W
Peak Gain (dBi): 2.1 (2.4GHz), -3.2 (5.8GHz)
Connector Type: RP-SMA(M) Straight (Reverse Polarity)
Cable Length: 200cm
Cable Type: RG-316
