MA582.A.001 Antenna MIMO 5G, 4G/LTE permanent mount puck Comet for Telematics, Transport and Fleet Management, Gateways and Routers, Digital Signage, Smart Kiosks and Point of Sale Terminals, First Responders, Public Safety and Critical Communications

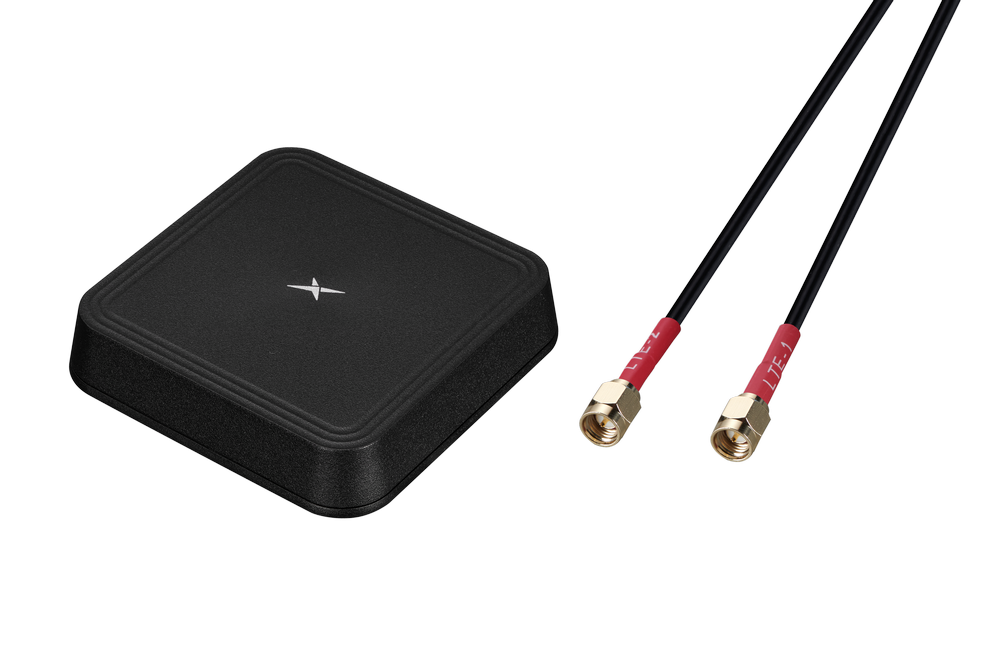

The Comet MA582 is a low-profile, puck-style permanent-mount antenna integrating two high-performance cellular MIMO elements for reliable 5G/4G connectivity in compact installations.

It is engineered to maintain strong performance when mounted directly on metallic enclosures, making it well-suited for discreet, rugged deployments where stable connectivity is required.

• Low-profile puck form factor for unobtrusive integration
• 2-element cellular MIMO design to support higher data rates and improved link reliability
• Designed for metal mounting surfaces to help minimize performance loss on enclosures
• Permanent screw-mount installation for secure attachment in high-vibration environments

Typical use cases include: telematics and fleet management, gateways/routers, digital signage and kiosks, public safety communications, and heavy equipment.

Connections

2x 5G/4G MIMO 600-6000MHz

Installation / Environmental

Installation Instructions
Comet MA58x Series
Low Profile Permanent Mount Combination Antenna
A Introduction
The Comet MA58x Series is a low-profile, puck-style,
screw-mount antenna that integrates two high-performance
5G/4G MIMO cellular elements and one GNSS element.
Covering all worldwide cellular frequencies from 600 MHz to 6
GHz, along with GPS, GLONASS, and BeiDou bands, it achieves
stable gain and efficiency that are typically difficult to realize in
such a compact 101 × 101 × 20 mm form factor.
Electrical Safety
The Comet can contains an active GPS/GNSS antenna.
Rated voltage: 1.8-5.5VDC Rated current: 10mA maximum
The supply to this device must be provided with overcurrent protection of 1A maximum.
Power consumption @ 1.8-5.5V ; 10 mA
B Mounting & Location

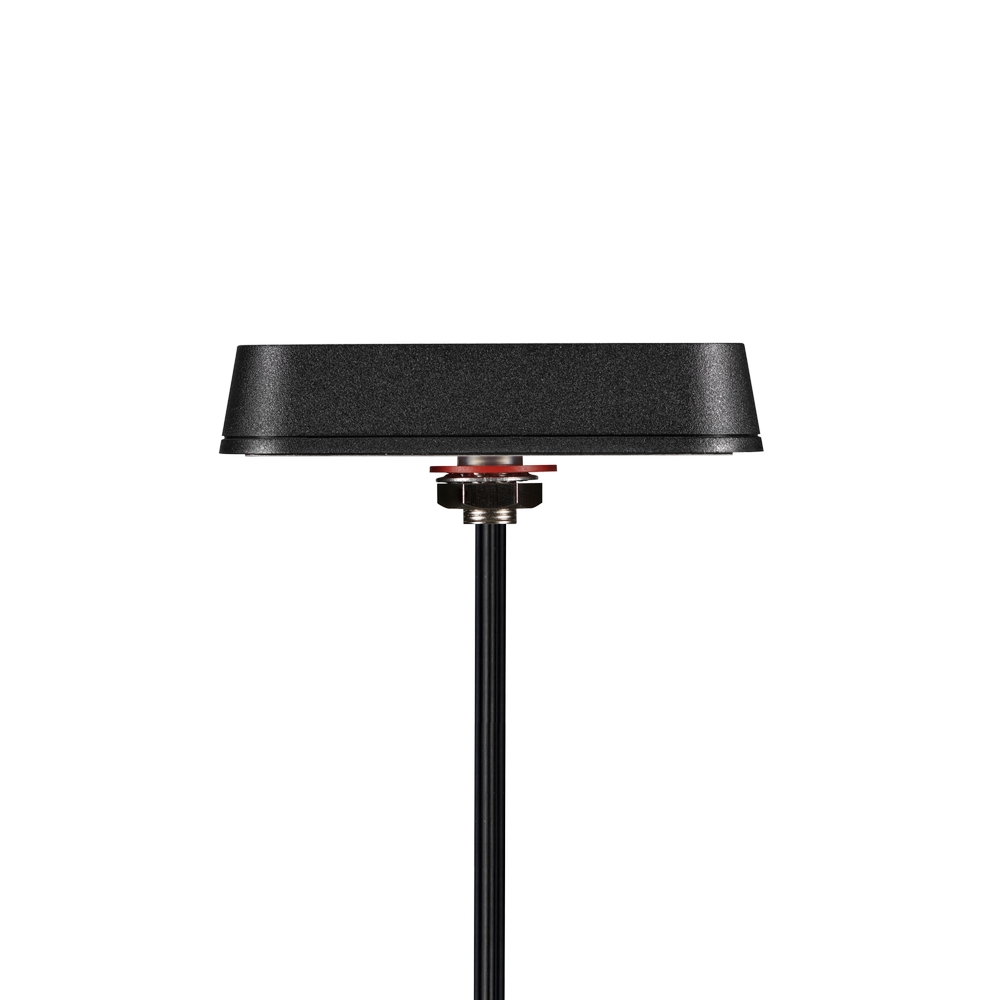

Secured via a Ø12mm diameter threaded mounting stud, The Comet is
recommended to be fitted by drilling a Ø13mm hole will need to be drilled
in the roof or enclosure surface.
When mounting on a vehicle roof panel ensure to mount on a flat surface,
and measure for a central position. Care should be taken to mount the
Comet antenna as far as possible from other roof-mounted features such
as the aircon unit, light bar etc.
Sealing
In order to ensure that the installation is properly sealed against the mounting surface care must be taken regarding curvature
of the mounting panel. It is highly recommended to install the antenna on a clean, flat and level surface. After installation the

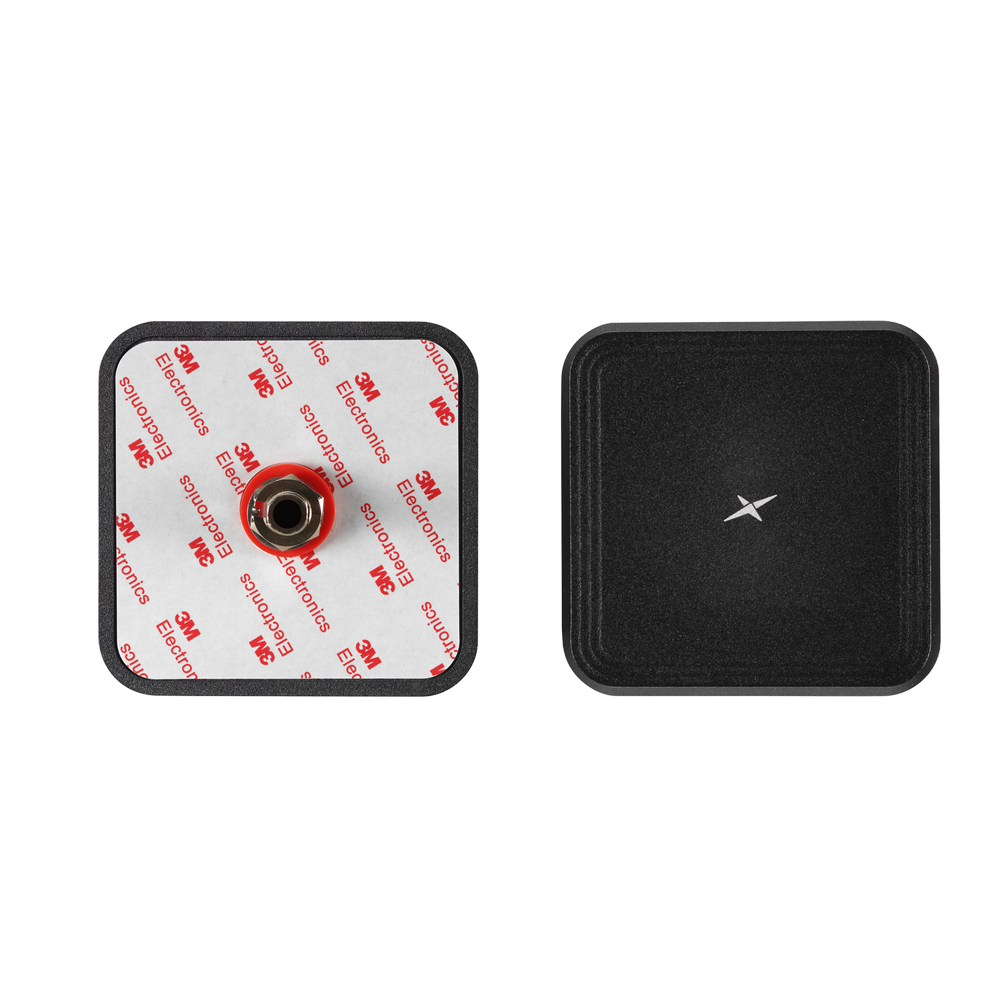

compression of the foam gasket and adhesive against the mounting panel should be checked and a small bead of neutral cure
silicone sealant can be applied around the periphery of the enclosure if required.
C Surface Preparation
When preparing to drill the hole, mask the area around the hole position to
protect the surface. If an existing OEM antenna mounting hole is not present,
drill a pilot hole and increase the hole size to Ø12mm (0.472”). Ensure the drill
bit does not contact the headliner. Then deburr and clean the area around the
hole carefully removing all waste.
13mm
Remove paint and primer from under panel surface to ensure adequate earth
contact by washer and nut. Apply petroleum jelly or paint around cut edge of
the hole to prevent corrosion

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: PIFA, MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Screw Mount, Permanent Mount
Type: Combination
IP Rating: IP67
Dimensions: 101mm x 101mm x 20mm 2m Low Loss TGC-1.5DS cable with SMA(M) connectors Custom C
Weight: 175g

2x 5G/4G MIMO

Frequency: 600-6000 MHz
Standards: 5G/4G/3G/2G, Cat-M, NB-IoT
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 7.01 dBi
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
