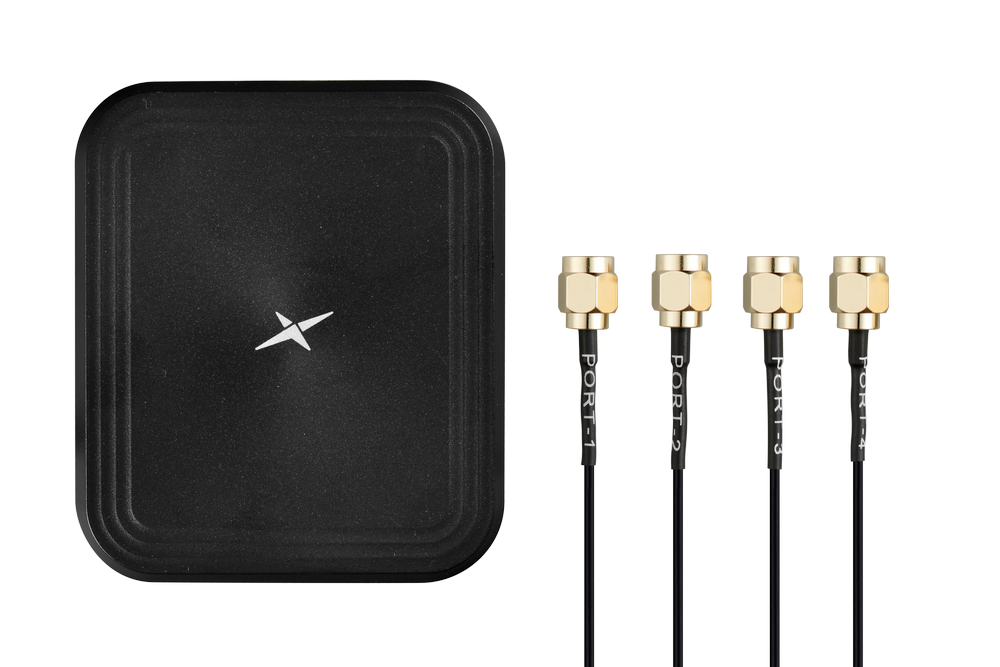

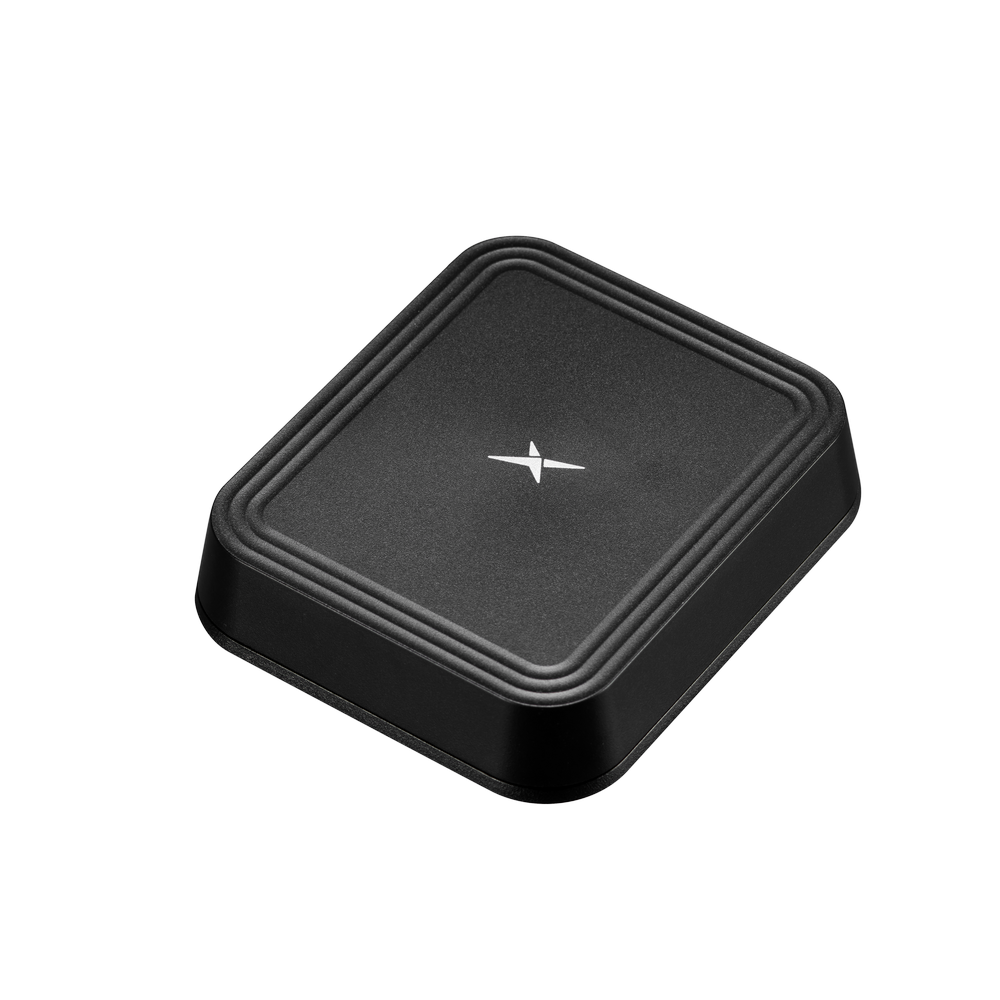

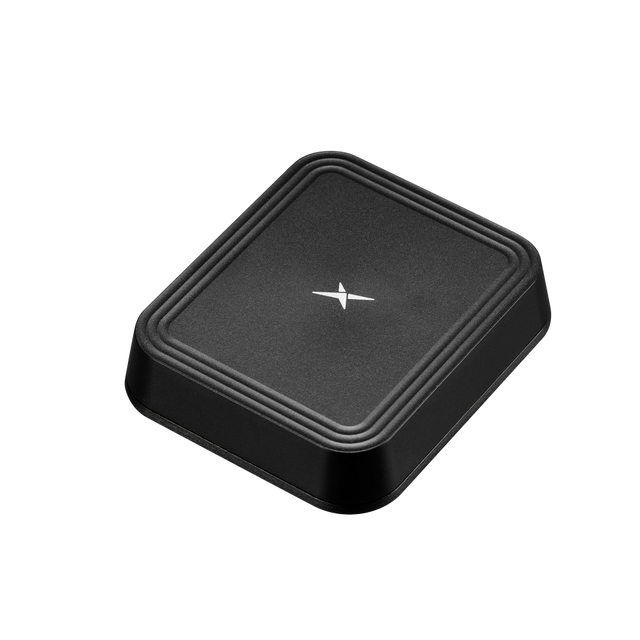

MA584.A.003 Antenna External Low-Profile 4-in-1 4x MIMO Wi-Fi 6E/7 permanent mount puck Comet for Fleet and transport telematics, Public safety, Gateways, Routers & Industrial Networks

This low-profile puck antenna integrates four Wi-Fi elements to deliver dependable multi-band performance across 2.4 GHz, 5.8 GHz, and 5.925–7.125 GHz. Its robust permanent (screw) mount design is built for reliable connectivity on metallic or equipment surfaces, including higher-vibration environments where discreet, secure installations are required.

Well-suited for mission-critical deployments such as fleet and transport telematics, public safety systems, industrial networking, and connected signage/terminal infrastructure.

Connections

4x Wi-Fi MIMO 2400-2500 / 5150-5850 / 5925-7125 MHz

Installation / Environmental

B Mounting & Location
Secured via a Ø12mm diameter threaded mounting stud, The Comet is recommended to be fitted by drilling a Ø13mm hole will need to be drilled in the roof or enclosure surface.
When mounting on a vehicle roof panel ensure to mount on a flat surface, and measure for a central position. Care should be taken to mount the Comet antenna as far as possible from other roof-mounted features such as the aircon unit, light bar etc.

Sealing
In order to ensure that the installation is properly sealed against the mounting surface care must be taken regarding curvature of the mounting panel. It is highly recommended to install the antenna on a clean, flat and level surface. After installation the compression of the foam gasket and adhesive against the mounting panel should be checked and a small bead of neutral cure silicone sealant can be applied around the periphery of the enclosure if required.

C Surface Preparation
When preparing to drill the hole, mask the area around the hole position to protect the surface. If an existing OEM antenna mounting hole is not present, drill a pilot hole and increase the hole size to Ø12mm (0.472”). Ensure the drill bit does not contact the headliner. Then deburr and clean the area around the hole carefully removing all waste.
13mm
Remove paint and primer from under panel surface to ensure adequate earth contact by washer and nut. Apply petroleum jelly or paint around cut edge of the hole to prevent corrosion

D Adhesive Foam Gasket
On the underside of the antenna there is a 3M adhesive foam gasket. Peel away the 3M adhesive protection and feed the cables through the hole. Position the antenna over the hole and press down onto the panel with pressure. This adhesion will ensure the antenna is securely mounted and will also allow for extremely minimal curvature on the roof of a vehicle.

E Securing the Mount
A split nut is used to easily fit onto the thread through the cables. After tightening, double check the antenna to make sure that it is properly secured.

F Cable Routing and Connection
The cables supplied are RG-174 and TGC-1.5DS for all feeds. The heatshrink will denote which cable is which for ease of installation. Connect each individual connector to the correct port of the router, if any cable is unused please fit a 50Ω terminator to the individual connection.

G Notices
Caution
To comply with FCC RF Exposure requirements in section 1.1310 of the FCC Rules, antennas used with this device must be installed to provide a separation distance of at least 20 cm from all persons to satisfy RF exposure compliance.
Warning
Do not operate the equipment in an explosive atmosphere.
European Waste Electronic Equipment Directive 2012/19/EU
Please ensure that your old Waste Electricals and Electronics are recycled do not throw them away into standard waste.
Hazardous Substances Directive (RoHS) 2011/65/EU / 2015/863/EU
Directive 2014/53/EU Radio Equipment Directive (RED)
View CE Certificate online:
www.taoglas.com/assets/ce/CE-Declaration-of-Conformity-RoHS-RED-Patriot-Series.pdf

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Frequency: 2400MHz - 8000MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Gain (Max): 6.79
Dimensions: 101mm x 101mm x 20mm 1.37 Micro Coa x Black cable with SMA(M) connectors Custom C
Weight: 102g
Material: ASA
Thread Diameter: M12

Wi-Fi MIMO (4x)

Frequency: 2400-2500 MHz; 5150-5850 MHz; 5925-7125 MHz
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 30cm
Cable Type: 1.37 Micro Coax Black
