Taoglas  |  SKU: MA584.W.003

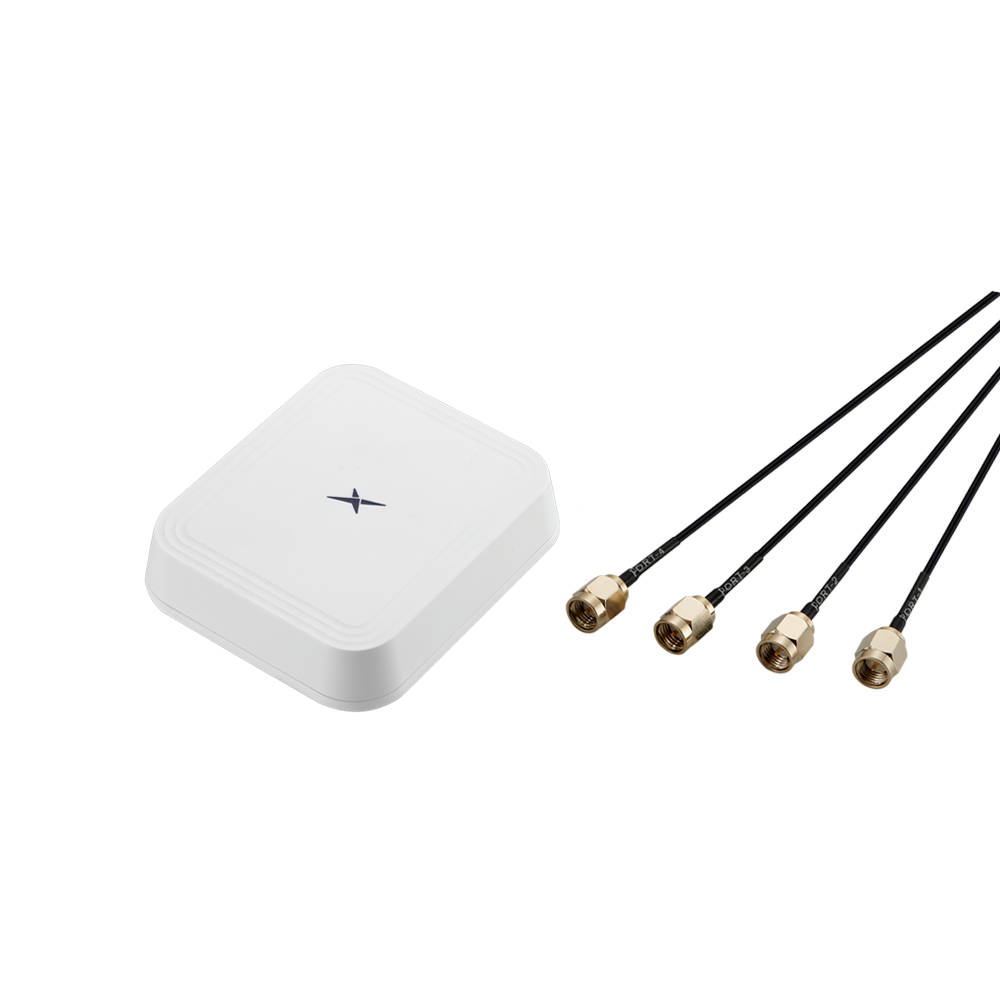

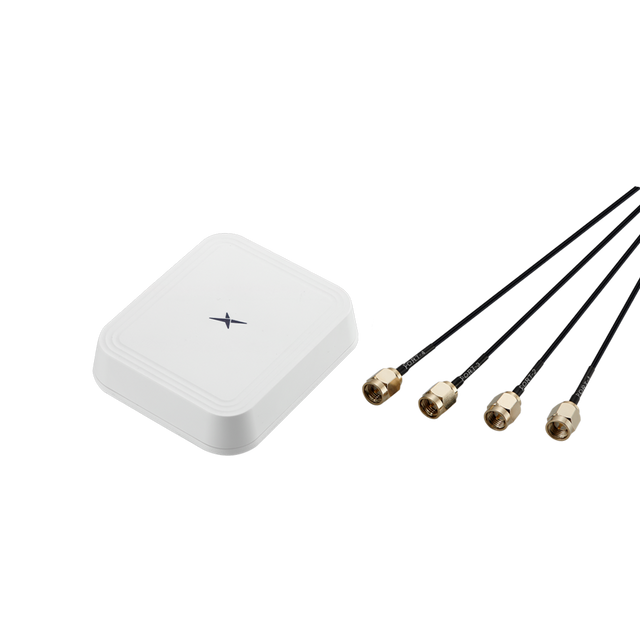

MA584.W.003 Antenna Low-Profile MIMO Router Wi-Fi 6E/7 permanent mount puck Comet 4-in-1 IP67 for Fleet and transport telematics, Public safety, Gateways, Digital Signage

Unit Price excluding VAT. Shipping calculated at checkout.


Datasheet

Description

Comet MA584 is a low-profile, puck-style antenna designed to deliver reliable multi-band Wi-Fi performance in a compact permanent-mount form factor. It integrates four Wi-Fi elements to support multi-band coverage across 2.4 GHz, 5.8 GHz, and 7.125 GHz, helping maintain consistent gain and efficiency where smaller low-profile antennas often struggle.

Built for dependable connectivity on metallic or equipment surfaces, it is well-suited to mission-critical deployments that need a discreet, ruggedized solution.

  • Use cases: fleet and transport telematics, public safety, gateways/routers, industrial networks
  • Additional applications: digital signage, point of sale terminals, first responder and emergency services

Connections

4x Wi-Fi MIMO 2.4GHz/5.8GHz/5.925-7.125GHz

Installation / Environmental

Installation Instructions
Comet MA58x Series
Low Profile Permanent Mount Combination Antenna

A Introduction
The Comet MA58x Series is a low-profile, puck-style,
screw-mount antenna that integrates two high-performance
5G/4G MIMO cellular elements and one GNSS element.
Covering all worldwide cellular frequencies from 600 MHz to 6
GHz, along with GPS, GLONASS, and BeiDou bands, it achieves
stable gain and efficiency that are typically difficult to realize in
such a compact 101 × 101 × 20 mm form factor.

Electrical Safety
The Comet can contains an active GPS/GNSS antenna.
Rated voltage: 1.8-5.5VDC Rated current: 10mA maximum
The supply to this device must be provided with overcurrent protection of 1A maximum.
Power consumption @ 1.8-5.5V ; 10 mA

B Mounting & Location
Secured via a Ø12mm diameter threaded mounting stud, The Comet is
recommended to be fitted by drilling a Ø13mm hole will need to be drilled
in the roof or enclosure surface.
When mounting on a vehicle roof panel ensure to mount on a flat surface,
and measure for a central position. Care should be taken to mount the
Comet antenna as far as possible from other roof-mounted features such
as the aircon unit, light bar etc.

Sealing
In order to ensure that the installation is properly sealed against the mounting surface care must be taken regarding curvature
of the mounting panel. It is highly recommended to install the antenna on a clean, flat and level surface. After installation the
compression of the foam gasket and adhesive against the mounting panel should be checked and a small bead of neutral cure
silicone sealant can be applied around the periphery of the enclosure if required.

C Surface Preparation
When preparing to drill the hole, mask the area around the hole position to
protect the surface. If an existing OEM antenna mounting hole is not present,
drill a pilot hole and increase the hole size to Ø12mm (0.472”). Ensure the drill
bit does not contact the headliner. Then deburr and clean the area around the
hole carefully removing all waste.
13mm
Remove paint and primer from under panel surface to ensure adequate earth
contact by washer and nut. Apply petroleum jelly or paint around cut edge of
the hole to prevent corrosion

D Adhesive Foam Gasket
On the underside of the antenna there is a 3M adhesive foam gasket. Peel away
the 3M adhesive protection and feed the cables through the hole. Position
the antenna over the hole and press down onto the panel with pressure. This
adhesion will ensure the antenna is securely mounted and will also allow for
extremely minimal curvature on the roof of a vehicle.

E Securing the Mount
A split nut is used to easily fit onto the thread through the cables. The nut
i t s h r a e t a ta d c a h n e d d t fr h o e m n s th ec e u u r n ed d e i r n s i p d l e a c o e f w th i e th p a a n fi e n l a , l i t t i s g h h o t u e l n d w ea it s h i ly a t s w pa is n t n o e n r. t o A ft th e e r ACROSS 1 F 8 L . A 0 TS
tightening, double check the antenna to make sure that it is properly secured.
4.0 SLOT

F Cable Routing and Connection
The cables supplied are RG-174 and TGC-1.5DS for all feeds. The heatshrink
will denote which cable is which for ease of installation. Connect each
individual connector to the correct port of the router, if any cable is unused
please fit a 50Ω terminator to the individual connection.

G Notices
Caution
To comply with FCC RF Exposure requirements in section 1.1310 of the FCC Rules, antennas used with this device must be installed
to provide a separation distance of at least 20 cm from all persons to satisfy RF exposure compliance.
Warning
Do not operate the equipment in an explosive atmosphere.
European Waste Electronic Equipment Directive 2012/19/EU
Please ensure that your old Waste Electricals and Electronics are recycled do not throw them away into standard waste.
Hazardous Substances Directive (RoHS) 2011/65/EU / 2015/863/EU
Directive 2014/53/EU Radio Equipment Directive (RED)
View CE Certificate online:
CE-Declaration-of-Conformity-RoHS-RED-Patriot-Series.pdf
Harmonised Standards and References:
EN 301 489-1 (V2.2.3): ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements. Referencing CENELEC EN 55032 Class B.
Waiver: This document represents information compiled to the best of current knowledge. This is not intended to be used as a representation
or warranty of fitness of the products described for any particular purpose. This document details guidelines for general information purposes only. When
planning installations, always seek specialist advice and ensure that the products are always installed by a properly qualified installer in accordance with
applicable regional laws and regulations.



Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount, Permanent Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Frequency: 2400MHz - 8000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 6.79
Dimensions: 101mm x 101mm x 20mm 1.37 Micro Coa x Black cable with SMA(M) connectors Custom C
Weight: 102g
Material: ASA

Wi-Fi MIMO (4 ports)

Standards: Wi-Fi® 2.4GHz/5.8GHz/5.925-7.125GHz
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 30cm
Cable Type: 1.37 Micro Coaxial Black Cable

Download Datasheet PDF
