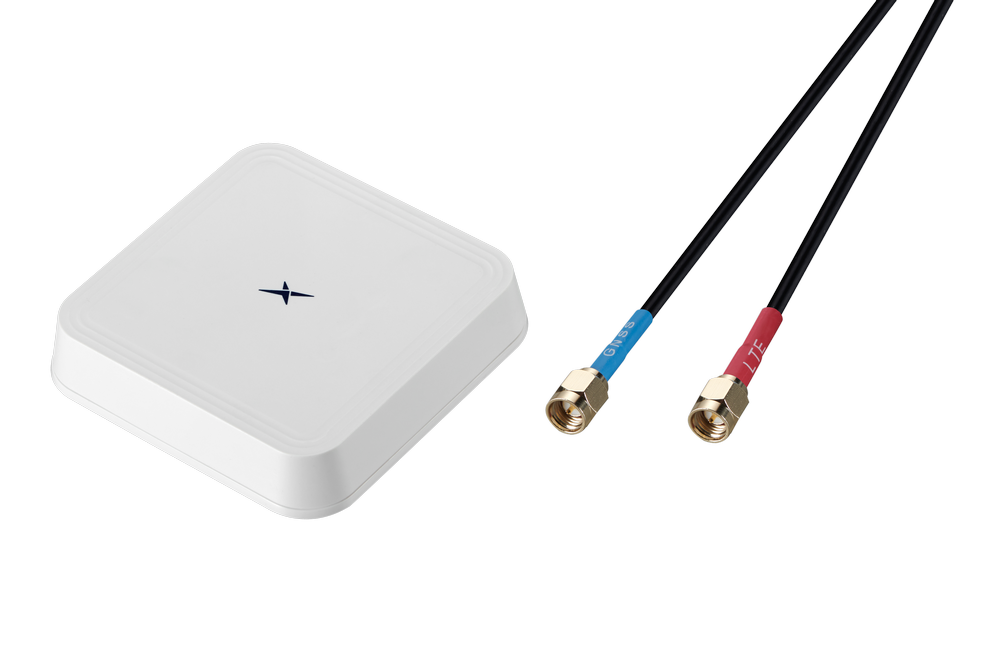

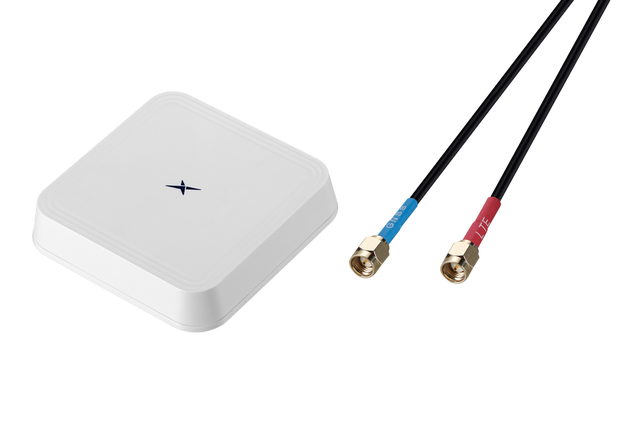

MA585.W.001 Antenna External Low-Profile Router 5G, GNSS permanent mount puck Comet 2-in-1 IP67 for Telematics, Gateways and Routers, Digital Signage, Point of Sale Terminals

This low-profile, puck-style permanent mount antenna combines wideband 5G/4G cellular and multi-constellation GNSS in a single rugged housing for reliable connectivity and positioning.

Designed to maintain strong performance when mounted directly on metallic enclosures, it is well-suited to mission-critical installations that require a secure mechanical attachment and dependable operation in harsh, high-vibration environments.

• 2-in-1 design: Cellular + GNSS in one compact enclosure
• Rugged protection: IP67-rated waterproof enclosure
• Optimized for metal mounting: Designed to reduce performance loss on metallic surfaces

Typical applications include:

• Telematics, Transport and Fleet Management
• Gateways and Routers
• Digital Signage, Smart Kiosks and Point of Sale Terminals
• First Responders, Public Safety and Critical Communications
• Construction, Mining, and Heavy Equipment

Connections

1x 5G/4G 617-6000MHz
1x GNSS (GPS/GLONASS/Galileo/BeiDou)

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: PIFA, MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M

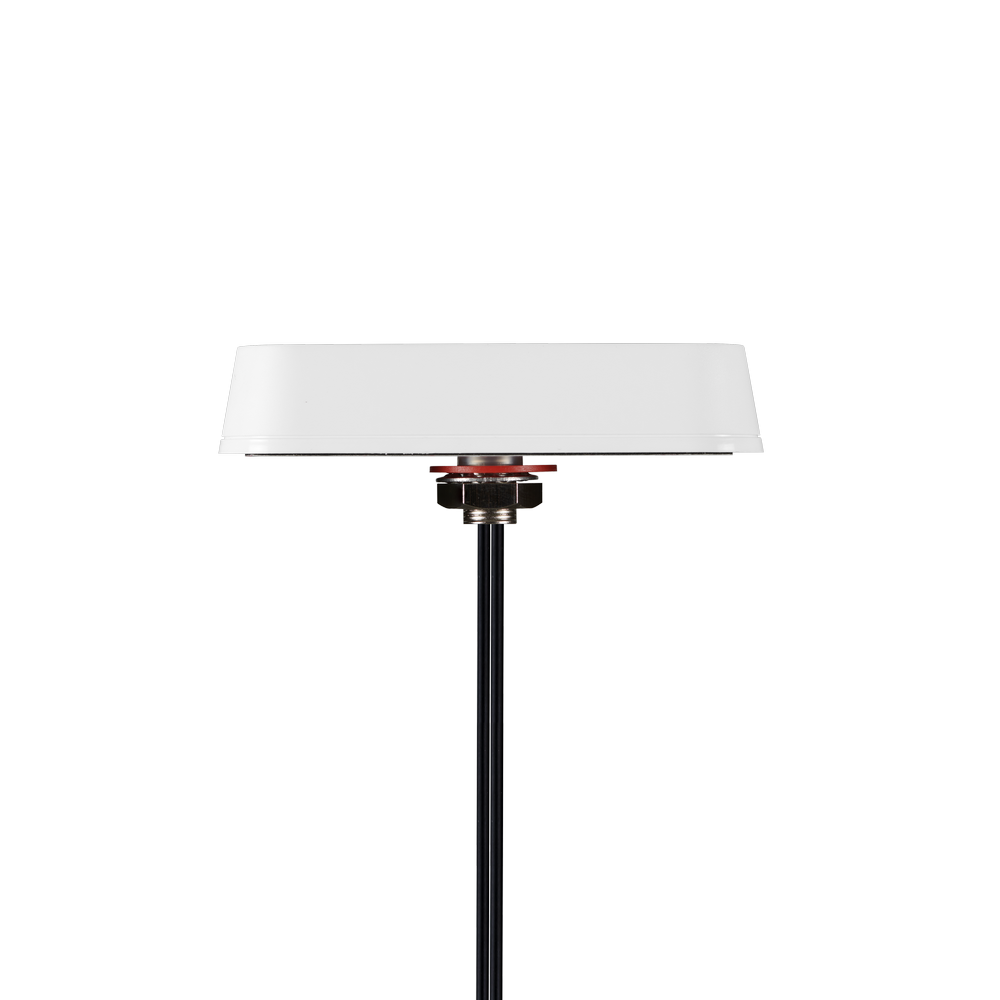

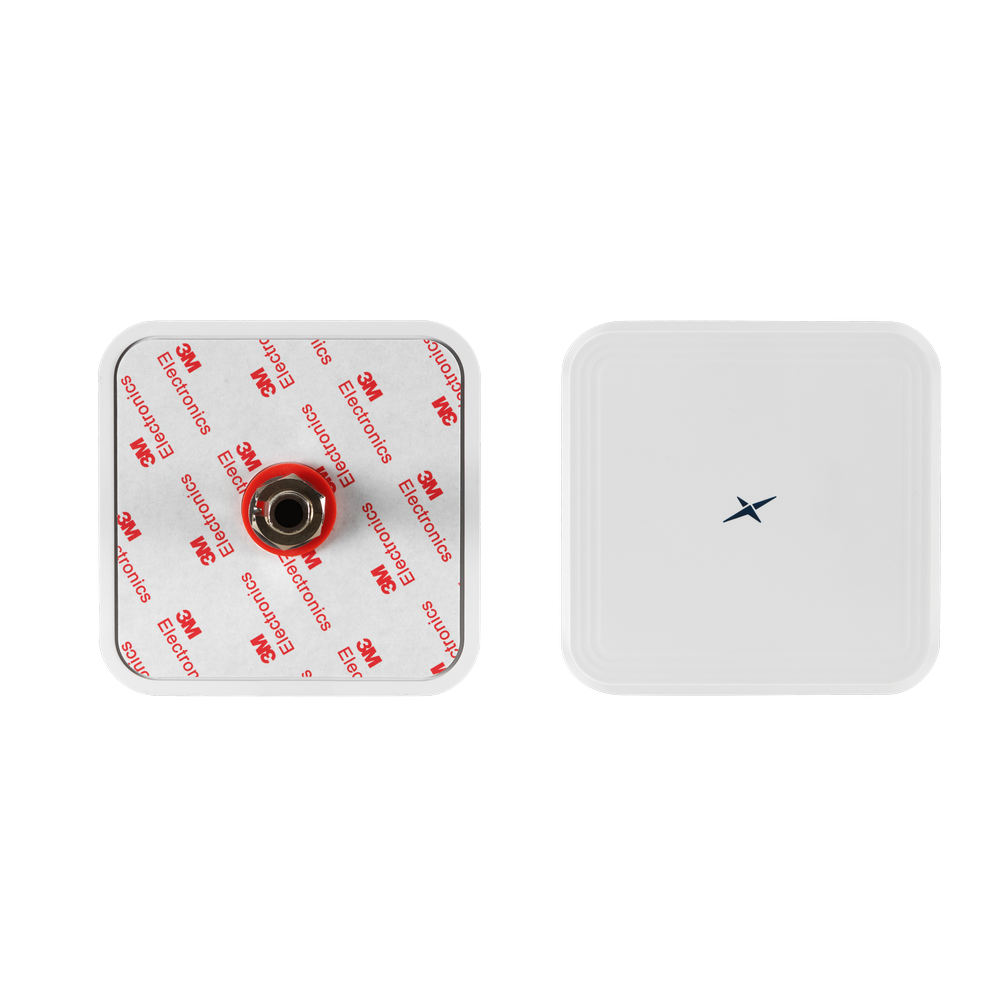

Mounting: Screw Mount, Permanent Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 101 x 101 x 20 mm Cables: 2 m low-loss TGC-1.5DS Connectors: SMA(M) Custom cable
Weight: 185g
Material: ASA
Thread Diameter: M12

5G/4G Cellular

Frequency: 617-6000 MHz
Polarization: Linear
Max. Input Power: 10W
VSWR: <2
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS

GNSS

Frequency: 1561-1602 MHz
Standards: GPS/GLONASS/Galileo/BeiDou
Polarization: RHCP
VSWR (max.): 2:1
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
