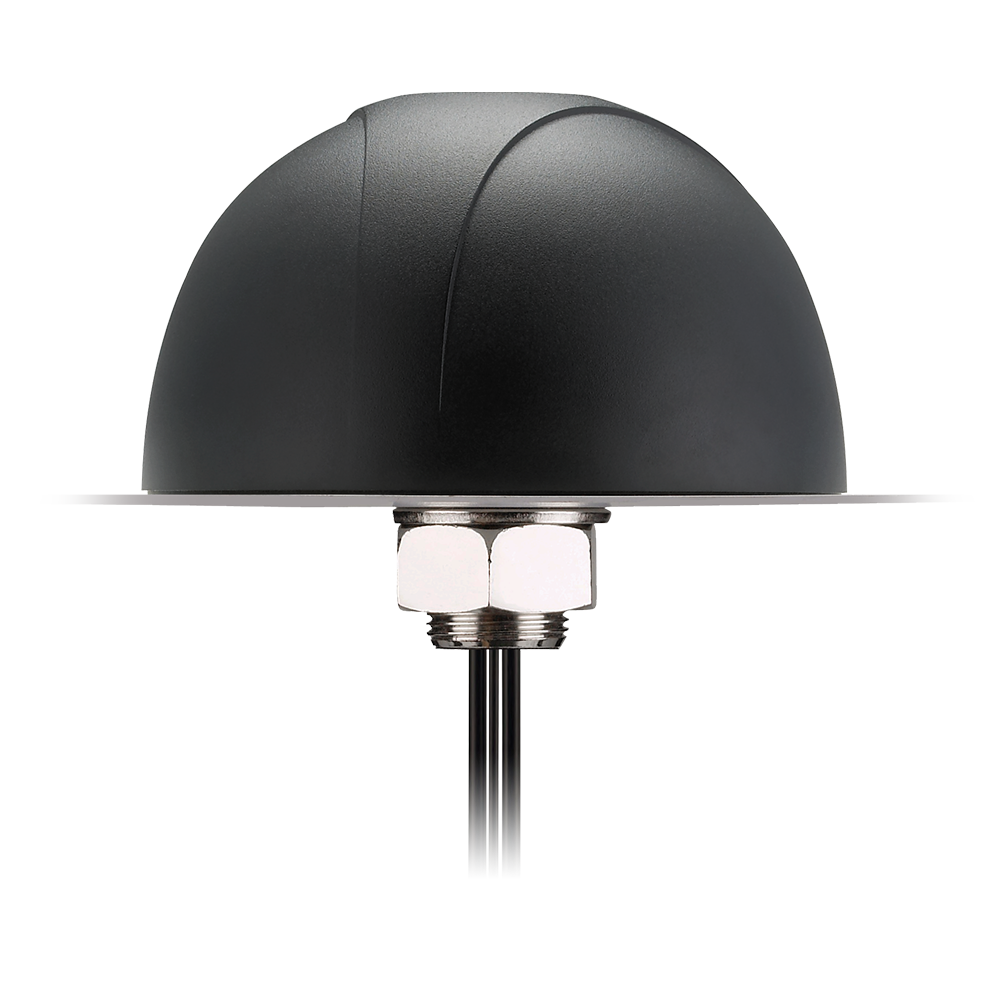

MA700.A.ABC.002 Antenna Outdoor External MIMO 5G, GNSS, Wi-Fi permanent mount Pantheon IP67 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

The Pantheon MA700 is a rugged, omnidirectional permanent-mount antenna designed to combine high-performance cellular, Wi-Fi, and GNSS into one IP67-rated enclosure for demanding outdoor deployments. It supports wideband cellular coverage across 600–6000MHz, Wi-Fi MIMO, and active GNSS with a front-end SAW filter to help improve positioning performance.

Built for mission-critical and transportation use cases, this compact solution is suited to harsh environments and varied mounting surfaces while helping simplify multi-radio installations.

• 3-in-1 multi-radio platform: Cellular + Wi-Fi + GNSS in one housing
• Wideband cellular support: 600–6000MHz coverage
• Active GNSS: GPS/GLONASS/Galileo support with front-end SAW filter
• Durable enclosure: IP67 waterproof rating for outdoor installations

Connections

1x 5G/4G 600-6000MHz Antennas (MIMO)
1x GPS/GLONASS/Galileo 1575.42/1602MHz Active Antenna
1x Wi-Fi 2.4GHz/5.8GHz Antennas (MIMO)

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: Diameter 145.19mm * Height(profile) 82.4mm
Weight: 1290g

5G/4G (MIMO)

Frequency: 600-6000MHz
Standards: 5G/4G
Polarization: Linear
Impedance: 50Ω
VSWR: 3 Max
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Frequency: 1575.42MHz / 1602MHz
Standards: GPS/GLONASS/Galileo
Bandwidth: 10MHz
Impedance: 50Ω
VSWR: 2
DC Power Input Range: 3 - 5V
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174

Wi-Fi (MIMO)

Frequency: 2400~2500MHz, 5150~5850MHz
Standards: Wi-Fi
Polarization: Linear
Impedance: 50Ω
VSWR: 2 Max
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
