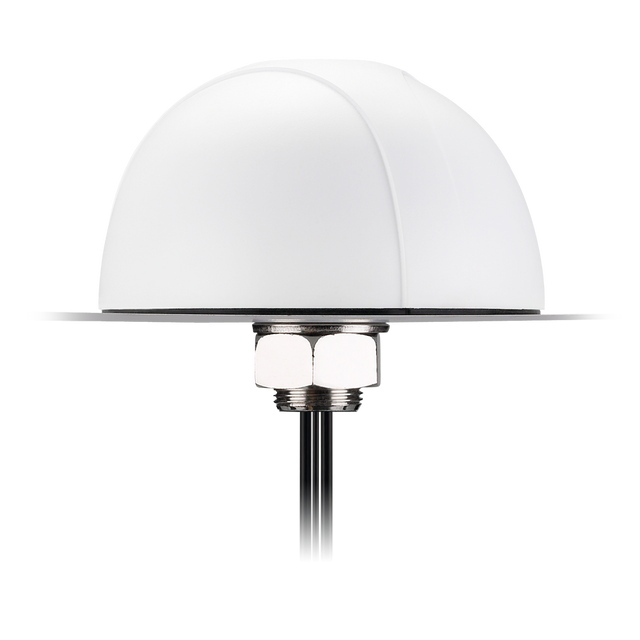

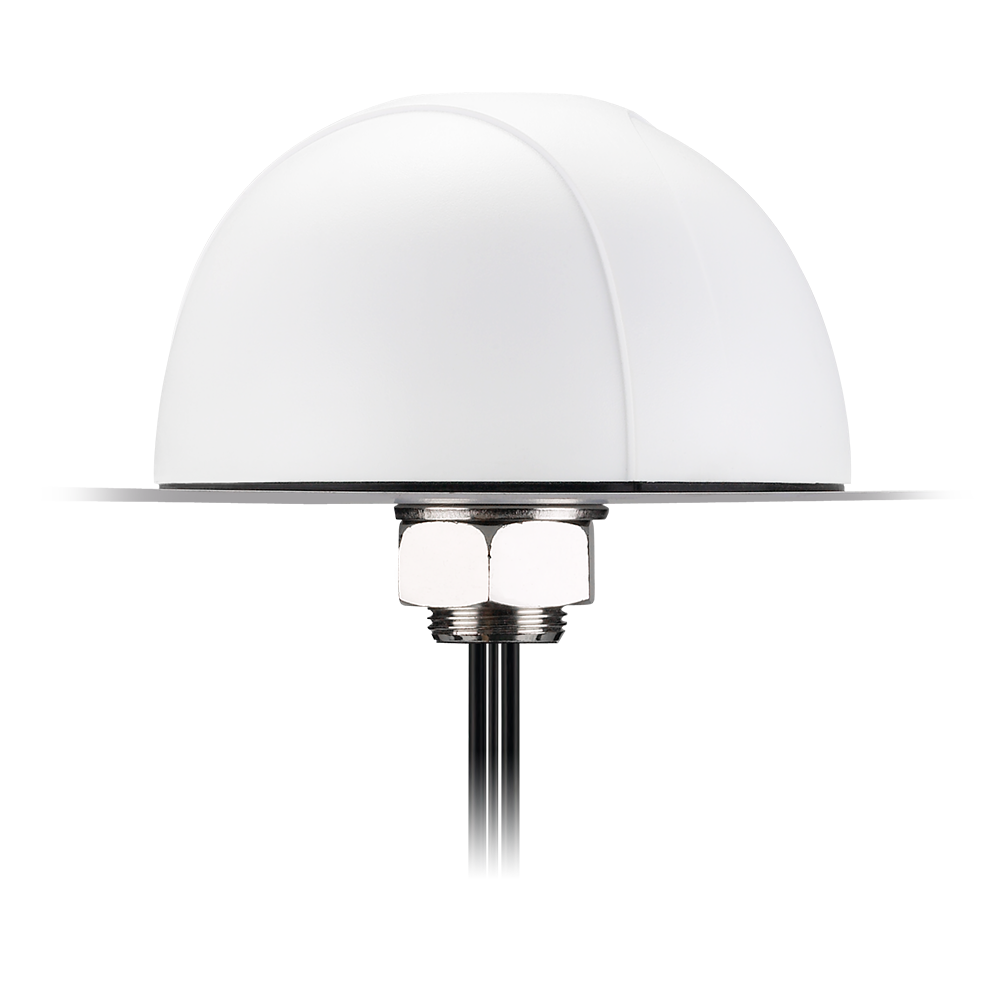

MA700.W.A.ABC.001 Antenna Outdoor External MIMO 5G, GNSS, Wi-Fi permanent mount Pantheon 3-in-1 for Telematics, Transportation, Remote Monitoring, Public Safety

The Pantheon MA700.W is a rugged, omni-directional, IP67-rated external M2M antenna that integrates high-performance 5G/4G cellular, Wi-Fi, and GNSS into a single permanent-mount housing for demanding field deployments.

• Multi-network connectivity: Supports wideband cellular coverage plus Wi-Fi and GNSS for modern multi-radio systems.
• Built for harsh environments: Heavy-duty waterproof enclosure designed for outdoor operation.
• Installation flexibility: Permanently screws down onto a roof or metal panel and can also be pole- or wall-mounted.
• RF performance focused design: Maintains 20dB isolation between integrated antennas and is designed to perform without an external ground plane.

Typical use cases include telematics, transportation, remote monitoring, public safety, passenger bus and rail services, and commercial fleet management.

Connections

2x 5G/4G MIMO 600-6000MHz
1x GNSS (Active) GPS/GLONASS/Galileo 1575.42/1602MHz
2x Wi-Fi MIMO 2400-2500MHz, 5150-5850MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount, Wall Mount, Pole Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Combination
IP Rating: IP67
Dimensions: Height 85.7mm x Diameter 145.6mm
Weight: 1.29kg

5G/4G Cellular (2x MIMO)

Frequency: 600-6000MHz
Standards: 5GNR/4G
Impedance: 50Ω
Polarization: Linear
VSWR: 3 Max
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Frequency: 1575.42MHz / 1602MHz
Standards: GPS/GLONASS/Galileo/QZSS
Bandwidth: 10MHz
Impedance: 50Ω
VSWR: 2
DC Power Input Range: 3 - 5V
LNA Gain: 29-32dB
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174

Wi-Fi (2x MIMO)

Frequency: 2400-2500MHz, 5150-5850MHz
Standards: Wi-Fi, ZigBee, ISM
Impedance: 50Ω
Polarization: Linear
VSWR: 2 Max
Peak Gain: 3.7dBi (2400-2500MHz), 5.4dBi (5150-5850MHz)
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
