Description

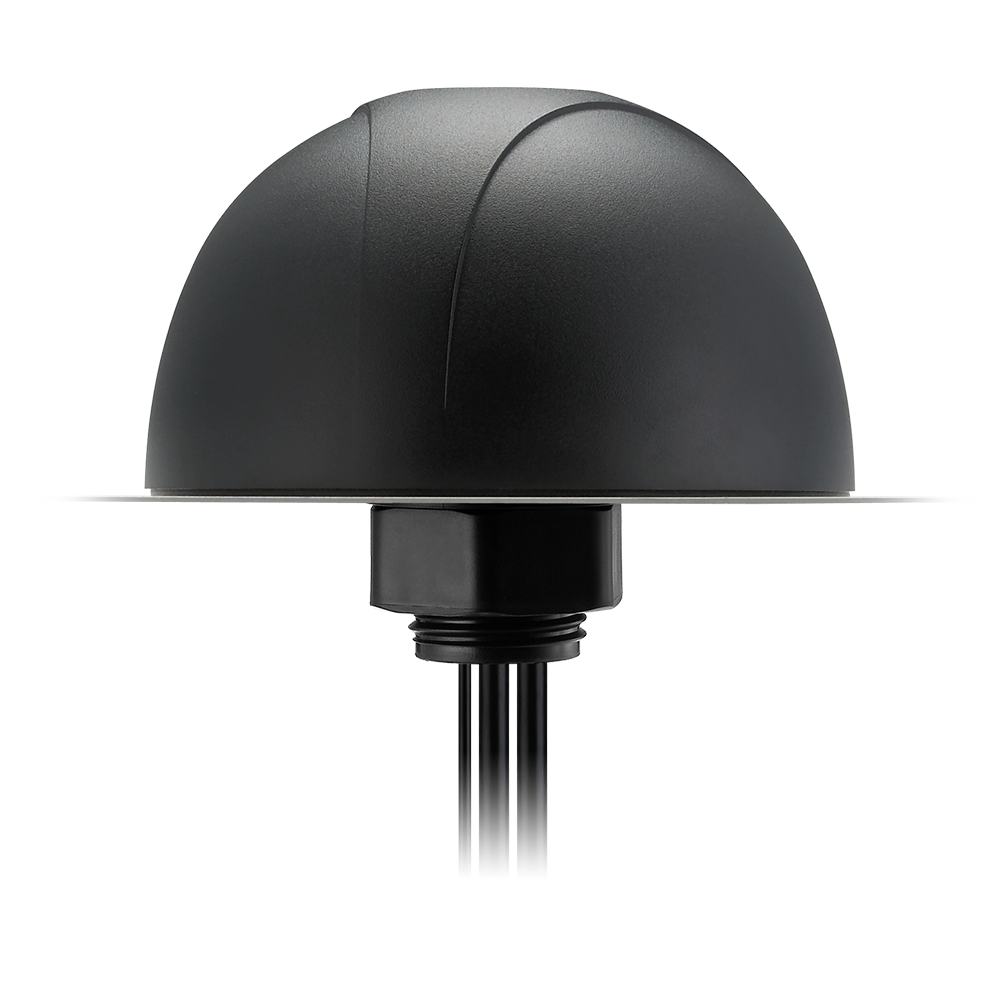

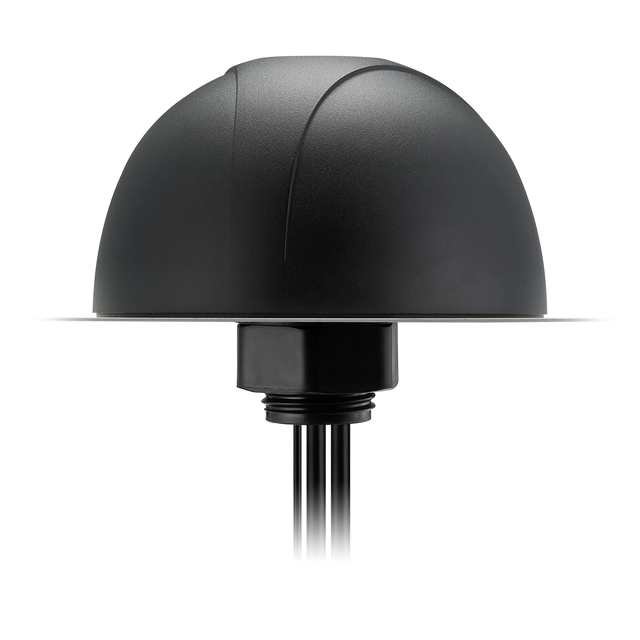

Pantheon MA705 is a heavy-duty, omni-directional external antenna designed to combine satellite navigation, cellular, and Wi-Fi connectivity in a single rugged housing. It features an IP67 waterproof enclosure and an integrated isolation gasket to help reduce electrical risk at the mounting surface while maintaining strong isolation between antenna elements.
Built for demanding field deployments, this permanent-mount design is intended for installation on roofs or metal panels and can also be used in pole- or wall-mount scenarios. Performance figures are specified with real-world cable length considerations to better represent installed performance.
Connections
1x GPS/GLONASS/Galileo 1575-1602MHz
1x LTE/Cellular/GSM 700-2170MHz (4G/3G/2G)
1x Wi-Fi/Public Safety/ZigBee 2.4/4.7-5.9GHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Polarization: Linear
Dimensions: Diameter 145.19mm * Height(profile) 82.4mm
Weight: 1280g
GPS/GLONASS/GALILEO
Frequency: 1575-1602MHz
Centre Frequency: 1575.42MHz / 1602MHz
Bandwidth: 10MHz
Passive Gain: 4.0 typ (with ψ=140mm ground) @ Zenith
VSWR: 2
Impedance: 50Ω
DC Power Input: 3 ~ 5V
LNA Gain: 29-32.3
Noise Figure: 3.1-3.4
Cable Length: 300cm
Cable Type: RG-174
Connector Type: SMA(M)
Cellular
Frequency: 700-2170MHz
Standards: LTE/GSM/CDMA/UMTS/HSPA (4G/3G/2G)
Peak Gain (dBi): 1.6-3.1
Efficiency (%): 36%-78%
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Cable Length: 300cm
Cable Type: CFD200
Connector Type: SMA(M)
WiFi
Frequency: 2.4~2.5, 4.7~5.0, 5.0~5.4, 5.4~5.9 GHz
Peak Gain (dBi): 1.8-5.9
Efficiency (%): 30%-54%
VSWR: <=1.7:1
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Cable Length: 300cm
Cable Type: CFD200
Connector Type: RP-SMA(M)
