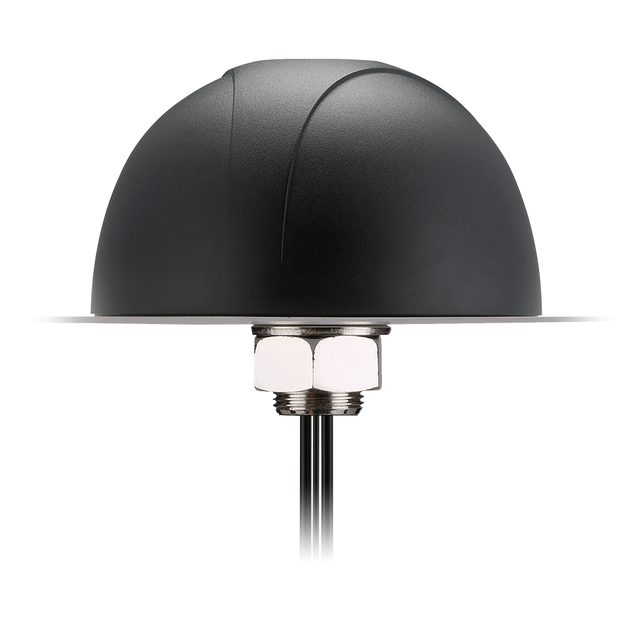

MA710.A.ABI.001 Antenna Outdoor 2x MIMO 5G, GNSS permanent mount Pantheon 3-in-1 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

This rugged, omnidirectional permanent-mount antenna integrates multiple high-performance elements into a single compact housing for reliable connectivity in demanding environments. It combines 2x cellular MIMO capability with an active GNSS element to support modern telematics and multi-radio deployments, and includes a front-end SAW filter to help improve GNSS performance.

• Integrated multi-antenna design: cellular MIMO + active GNSS in one enclosure
• Built for harsh environments: waterproof, heavy-duty housing for outdoor deployments
• Optimized GNSS performance: front-end SAW filtering for improved reception
• Ideal for commercial transport: designed for telematics, transportation, and remote monitoring use cases

Connections

2x 5G/4G 600-6000MHz Antennas (MIMO)
1x GPS/GLONASS/Galileo 1575.42/1602MHz Active Antenna

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Ø143.2 x 82.4 mm
Weight: 1030g

5G/4G MIMO (2x)

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Polarization: Linear
Impedance: 50Ω
VSWR: 2
Gain (Max): 4 dBi
Connector Type: 2x SMA(M)
Cable Length: 2x 300cm
Cable Type: CFD-200

GNSS (Active)

Frequency: 1575.42MHz / 1602MHz
Standards: GPS/GLONASS/Galileo
Bandwidth: 10MHz
Impedance: 50Ω
VSWR: 2
DC Power Input Range: 3 - 5V
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
