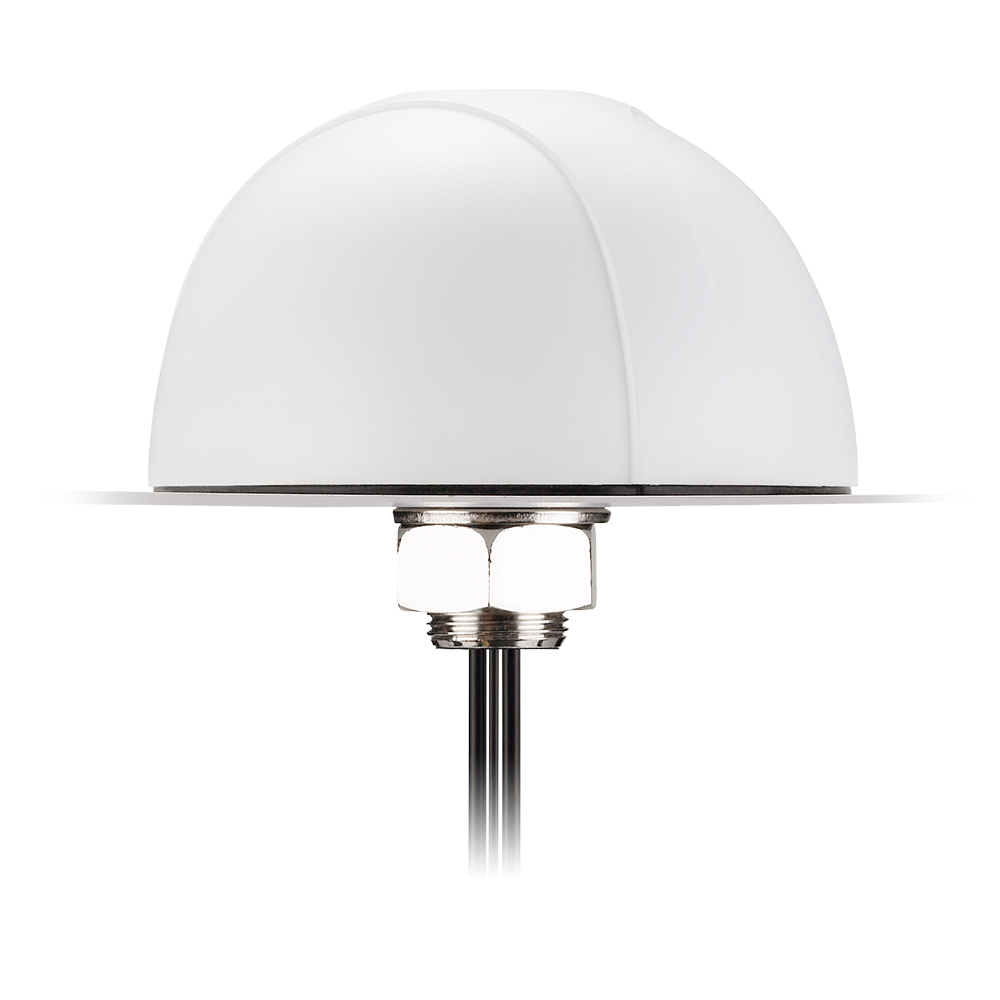

MA710.W.A.ABI.001 Antenna Outdoor External 2x MIMO 5G, GNSS permanent mount Pantheon for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

This rugged, omnidirectional permanent-mount antenna integrates 2x cellular MIMO elements plus an active GNSS element in one compact housing for reliable connectivity and positioning in demanding outdoor deployments.

• Supports wideband cellular coverage: designed to cover 600–6000MHz for 5G/4G operation
• Integrated GNSS: supports GPS/GLONASS/Galileo and includes a front-end SAW filter for improved performance
• Built for harsh environments: IP67 waterproof enclosure suited to transportation and remote monitoring use cases

Typical use cases include: Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management.

Connections

2x 5G/4G MIMO 600-6000MHz
1x GPS/GLONASS/Galileo 1575.42/1602MHz Active

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Ø143.2 x 82.4 mm
Weight: 1300g

5G/4G MIMO

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Impedance: 50Ω
Polarization: Linear
Gain (Max): 1.8
VSWR: 2
Connector Type: 2x SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Frequency: 1575.42MHz / 1602MHz
Standards: GPS/GLONASS/Galileo
Impedance: 50Ω
Polarization: RHCP
VSWR: 2
DC Power Input Range: 3 - 5V
LNA Gain: 29 - 32 dB
Noise Figure: 3.1 - 3.4
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
