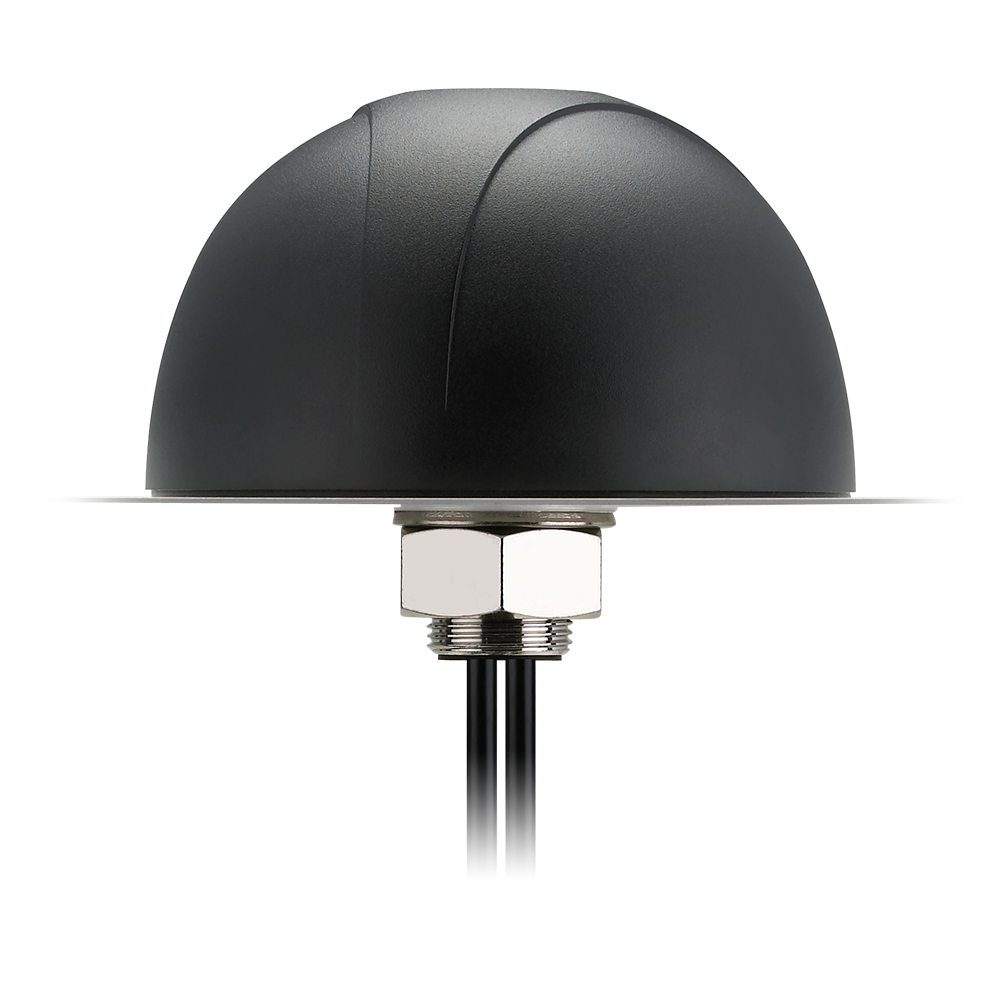

MA741.B.BI.001 Antenna Outdoor 2xMIMO 5G, 4G/LTE permanent mount Pantheon for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

The Pantheon MA741 is a heavy-duty, omnidirectional external M2M antenna designed for robust cellular connectivity in demanding environments. Its integrated 2-in-1 MIMO design supports reliable 5G/4G performance for always-connected devices and vehicles.

Built for harsh deployments, the antenna features a rugged waterproof enclosure and is well-suited to mission-critical use where consistent connectivity is required.

• Rugged outdoor enclosure: Waterproof, heavy-duty design for challenging environments
• MIMO cellular performance: Supports modern cellular networks for improved throughput and reliability
• Versatile deployment: Intended for applications such as Public Safety, Passenger Bus and Rail Services, Digital Signage, and Commerical Transportation and Fleet Management

Connections

2x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Permanent Mount, Screw Mount
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Polarisation: Linear
VSWR: 2
Gain (Max): 4 dBi
Dimensions: Ø143.2 x 82.4 mm
Weight: 1.16Kg

5G/4G Cellular MIMO (Lead A)

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Radiation Pattern: Omnidirectional
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

5G/4G Cellular MIMO (Lead B)

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Radiation Pattern: Omnidirectional
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
