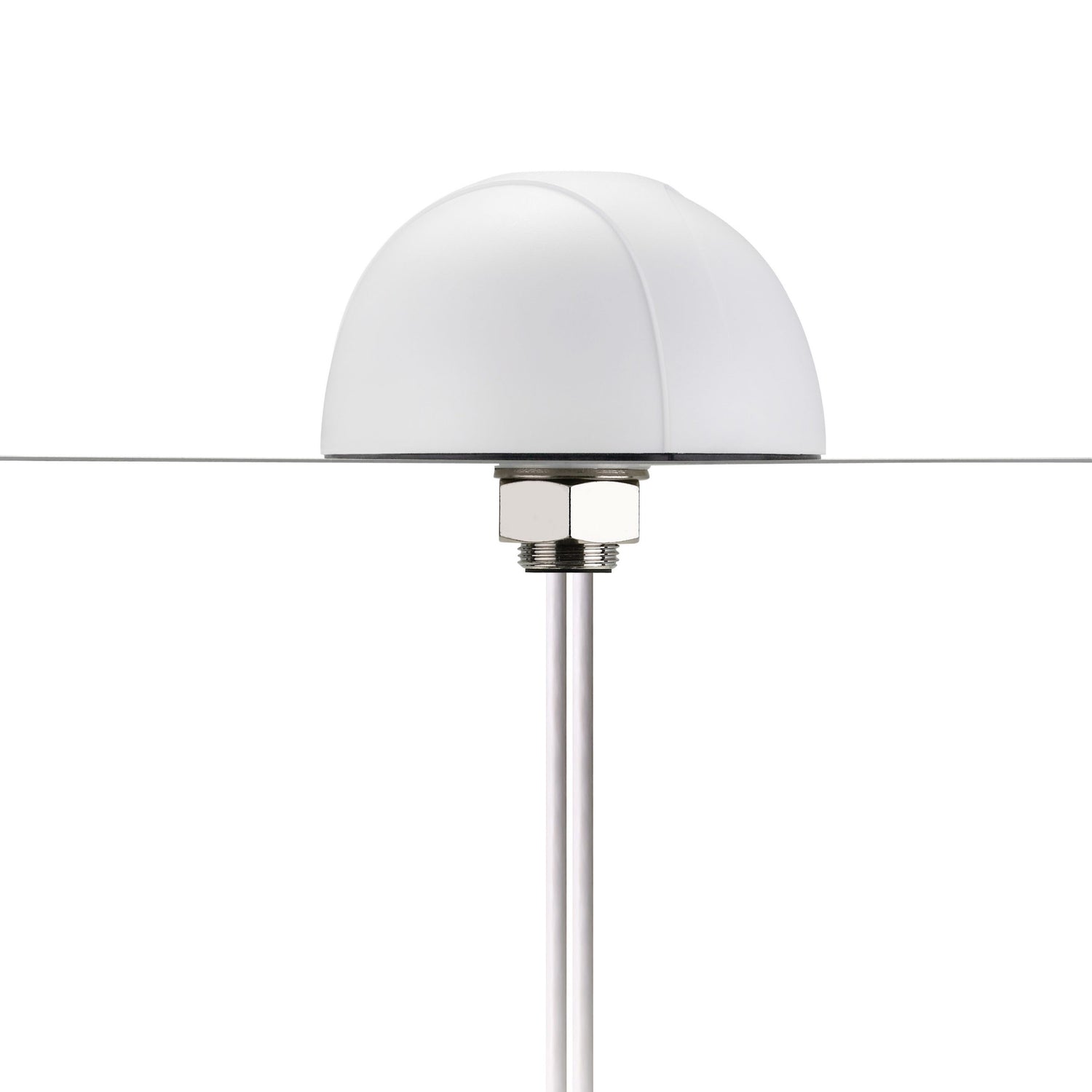

MA741.W.A.BI.001 Antenna Outdoor External 2xMIMO 5G, 4G/LTE permanent mount Pantheon IP67 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

This rugged, omnidirectional 2-in-1 antenna integrates two high-performance cellular elements in a durable permanent-mount enclosure to support reliable connectivity in demanding deployments. It is designed for applications such as telematics, transportation, and remote monitoring where consistent performance and robust mechanical construction are required.

• 2-in-1 integrated design: supports MIMO operation for improved link stability and throughput
• Wideband cellular coverage: built to support modern 5G and 4G/LTE networks
• Use cases: public safety, passenger bus and rail services, digital signage, and fleet management

Connections

2x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Type: Combination
IP Rating: IP67
Dimensions: Ø143.2 x 82.4 mm
Impedance: 50a9
Polarization: Linear
Weight: 1160g

5G/4G MIMO 1

Frequency: 600MHz - 6000MHz
VSWR: 3
Gain (Max): 3.75
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

5G/4G MIMO 2

Frequency: 600MHz - 6000MHz
VSWR: 3
Gain (Max): 3.75
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

Download Datasheet PDF
