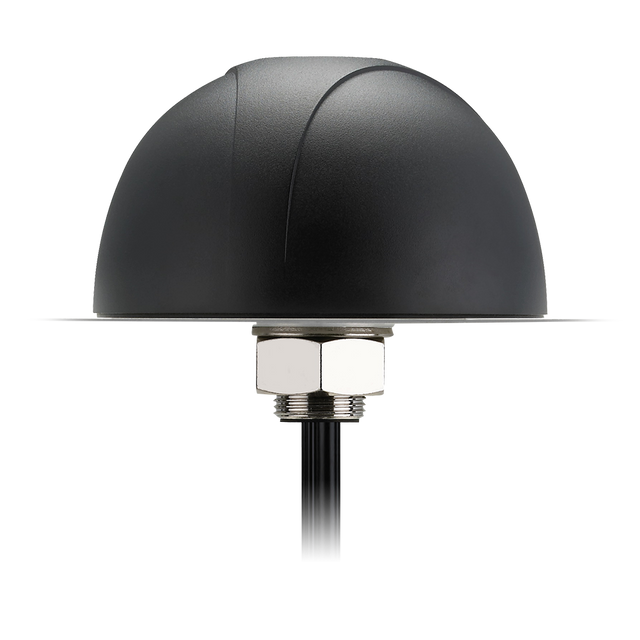

MA750.A.ABICG.003 Antenna Outdoor External 2xMIMO 5G, GNSS, Wi-Fi permanent mount 5-in-1 Pantheon IP67 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commerical Transportation and Fleet Management

This rugged, omnidirectional 5-in-1 permanent-mount antenna integrates multiple high-performance elements into one compact housing for reliable multi-network connectivity in demanding environments. It supports MIMO for both cellular and Wi-Fi, plus an active GNSS element with a front-end SAW filter to help improve positioning performance.

Designed for mission-critical and industrial deployments, it is well-suited to telematics, transportation, and remote monitoring systems where a durable, waterproof external antenna solution is required.

Connections

2x 5G/4G MIMO 600-6000MHz
1x GNSS (GPS/GLONASS/Galileo) 1575.42/1602MHz Active
2x Wi-Fi MIMO 2.4GHz/5.8GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: Ø143.2 x 82.4 mm
Weight: 1290g

5G/4G MIMO

Frequency: 600-6000MHz
Quantity: 2x
Impedance: 50Ω
Polarization: Linear
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Standards: GPS/GLONASS/Galileo
Centre Frequency: 1575.42MHz / 1602MHz
Bandwidth: 10MHz
VSWR: 2
Impedance: 50Ω
DC Power Input Range: 3 - 5V
LNA Gain: 29-32.3dB
Noise Figure: 3.1-3.4
Band Attenuation: 1520MHz: -20dB, 1642MHz: -20dB
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174

Wi-Fi MIMO

Frequency: 2400-2500 MHz, 5150-5925 MHz
Quantity: 2x
Impedance: 50Ω
Polarization: Linear
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
