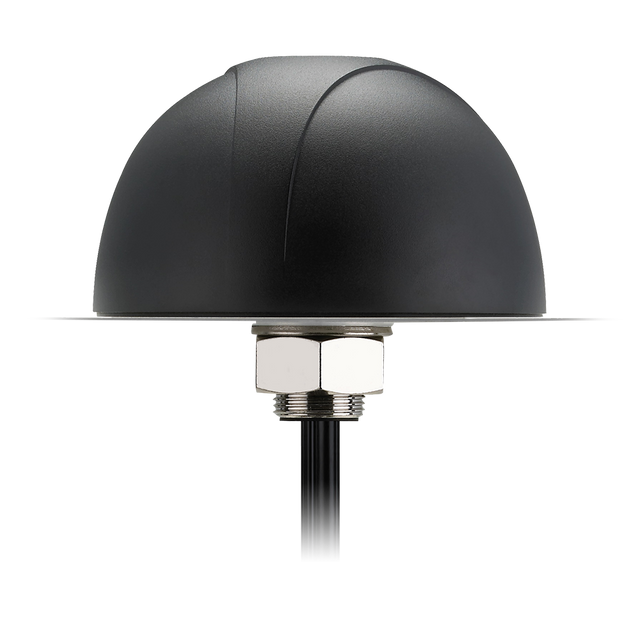

MA760.A.ABIC.003 Antenna Outdoor External 2xMIMO 5G, GNSS, Wi-Fi permanent mount Pantheon 4-in-1 IP67 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commercial Transportation and Fleet Management

This rugged, omnidirectional permanent-mount antenna integrates multi-network connectivity into a single low-profile package for demanding outdoor deployments. It supports 5G/4G MIMO for high-throughput cellular links, integrated Wi-Fi coverage, and active GNSS for reliable positioning.

Designed for robust M2M use, it is well suited to telematics, transportation, and remote monitoring systems, helping reduce installation complexity while maintaining strong, consistent performance across key cellular bands (including 600–6000MHz) and GNSS constellations.

Connections

2x 5G/4G MIMO 600-6000MHz
1x GPS/GLONASS/Galileo 1575.42/1602MHz Active
1x Wi-Fi 2.4GHz/5.8GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount, Permanent Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Polarization: Linear
Dimensions: Ø143.2 x 82.4 mm
Weight: 1.29Kg

5G/4G MIMO (2x)

Frequency: 600-6000MHz
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

GNSS (Active)

Standards: GPS/GLONASS/Galileo
Frequency: 1575.42MHz / 1602MHz
VSWR: 2
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174

Wi-Fi 2.4GHz / 5GHz

Frequency: 2400-2500MHz, 5150-5850MHz
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
