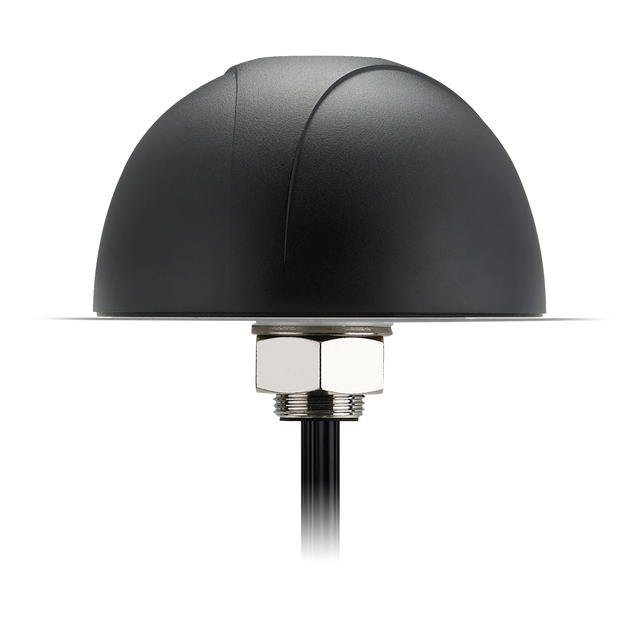

MA761.B.BICG.003 Antenna Outdoor MIMO 5G, Wi-Fi permanent mount Pantheon 4-in-1 IP67 for Public Safety, Passenger Bus and Rail Services, Digital Signage, Commercial Transportation and Fleet Management

This rugged, low-profile permanent mount antenna integrates multiple high-performance elements into a single outdoor-ready housing to support both cellular and Wi-Fi connectivity in demanding environments. Designed for omnidirectional coverage, it’s well-suited for mission-critical and high-reliability deployments where robust construction and weather sealing are required.

• Integrated 4-in-1 design: supports cellular MIMO plus Wi-Fi MIMO in one compact solution
• Wideband cellular support: designed to cover 600–6000MHz for broad regional compatibility
• Outdoor durability: IP67-rated enclosure for harsh environments
• Enhanced RF front-end: includes a front-end SAW filter

Typical use cases include: Public Safety, Passenger Bus and Rail Services, Digital Signage, and Commercial Transportation & Fleet Management.

Connections

2x 5G/4G MIMO 600-6000MHz
2x Wi-Fi MIMO 2.4GHz/5.8GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount, Permanent Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Polarization: Linear
VSWR: 2
Dimensions: Ø143.2 x 82.4 mm
Weight: 1.16Kg
Gain (Max): 1.6 dBi

5G/4G MIMO

Frequency: 600-6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200

Wi-Fi MIMO

Frequency: 2400~2500 MHz, 5150~5925 MHz
Standards: Wi-Fi 2.4GHz/5GHz
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
