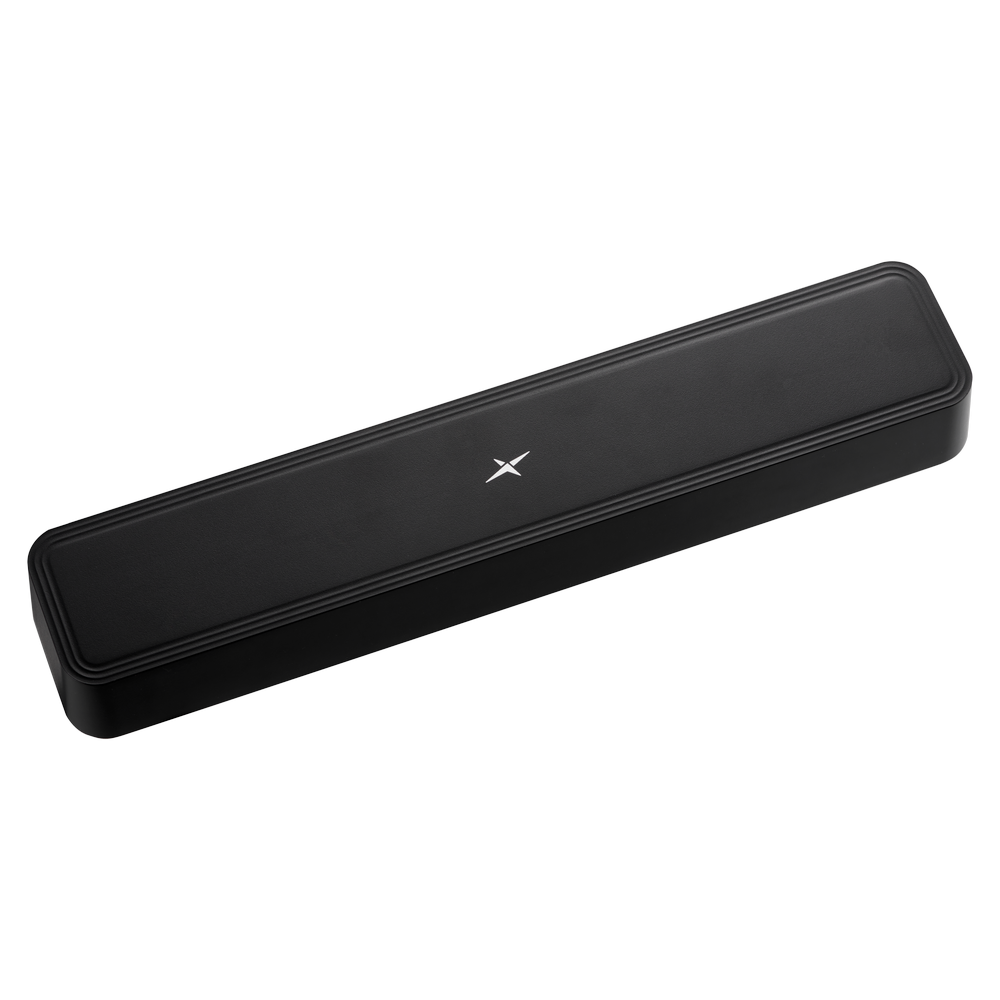

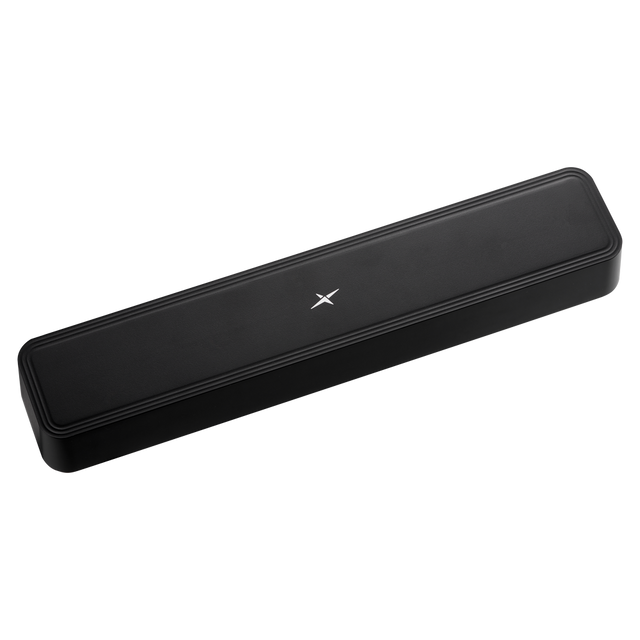

MA8005.A.001 Antenna MIMO Router 5G, GNSS screw mount 5-in-1 Raptor X IP69K for Emergency and First Responder Vehicles, EV Charger Stations, Smart Industry and Warehouse Applications, Private LTE Networks

Raptor X is a low-profile 5-in-1 combination antenna designed for modern routers and gateways, combining wideband cellular MIMO coverage with dual-band GNSS for enhanced positioning performance.

Its compact form factor helps it fit vehicle roofs and cabinet installations where height and space are limited, while the rugged enclosure is built for demanding environments.

• 5-in-1 combination design: integrates cellular MIMO plus GNSS in one housing
• Wideband cellular coverage: supports 600–6000MHz for broad 5G/4G operation
• Dual-band GNSS: supports L1/L5 for improved positional accuracy
• Ruggedized enclosure: suitable for harsh use cases (IP69K, IK10)

Typical applications include:

• Emergency and First Responder Vehicles
• EV Charger Stations
• Smart Industry and Warehouse Applications
• Private LTE Networks

Connections

1x GNSS Covering L1/L5 Bands
4x 5G/4G Cellular Covering 600-6000MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount (M22 Thread Mount)
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP69K
Impact Rating: IK10
Impedance: 50Ω
VSWR: 2:1
Dimensions: 350mm x 70mm x 39mm M22 Thread Mount IP69K Rated Enclosure
Weight: 0.76Kg

GNSS (L1/L5)

Frequency: 1164-1189 MHz, 1559-1592 MHz, 1565-1586 MHz, 1596-1610 MHz
Polarization: RHCP
Impedance: 50Ω
Peak Gain (dBi): 2.49, 3.93, 3.93, 3.38
LNA Gain (dB): 32.3 (High-Band), 26.3 (Low-Band)
Noise Figure (dB): 2.4 (High-Band), 3.8 (Low-Band)
Current Consumption (mA): 16.8
Input Voltage (V): +1.8 to 5.5
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174

5G/4G Cellular MIMO (4x)

Frequency: 600MHz - 6000MHz
Polarization: Linear
Impedance: 50Ω
Radiation Pattern: Omni
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-302
