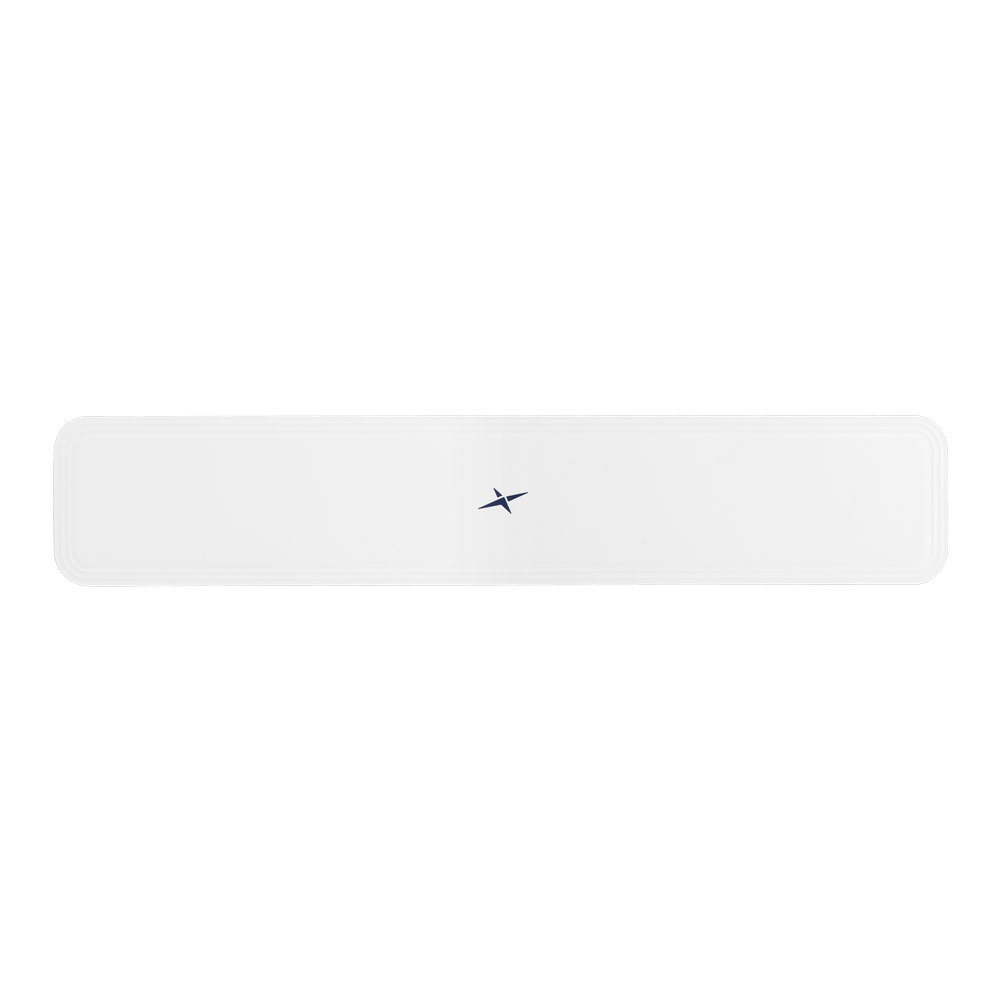

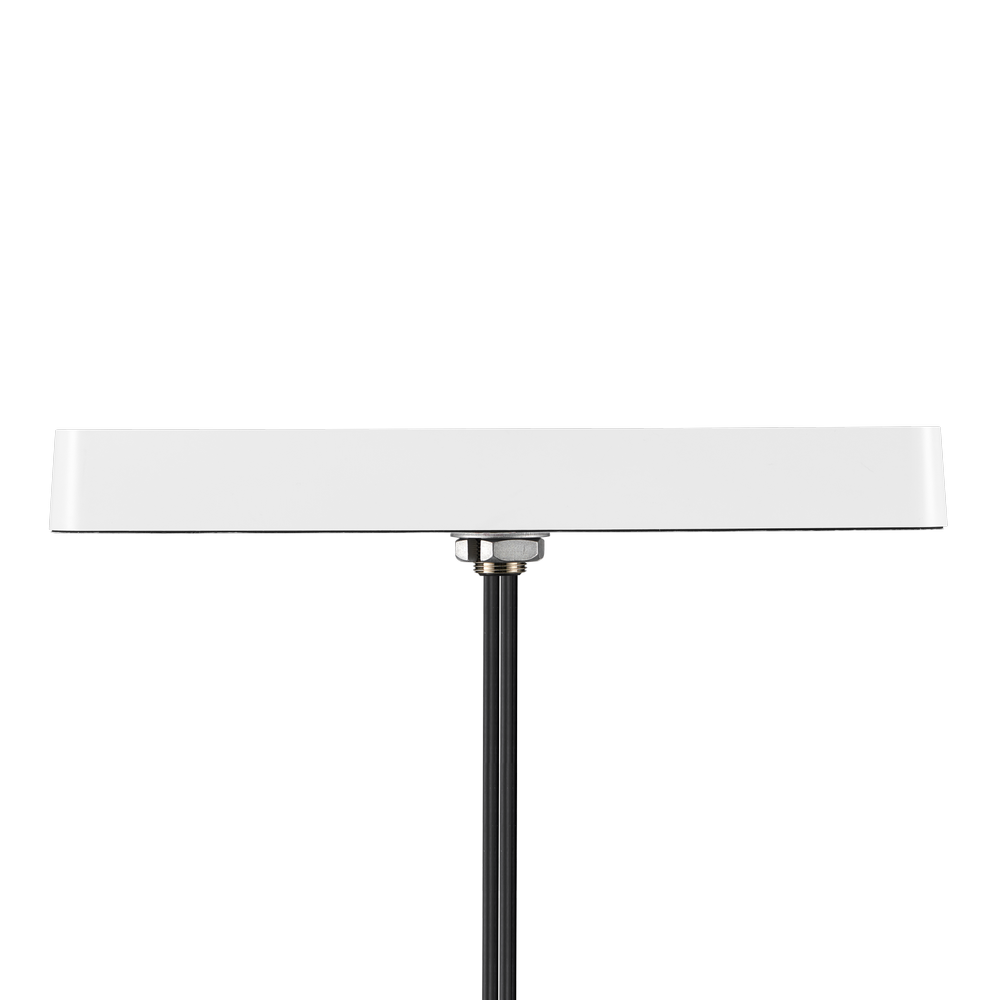

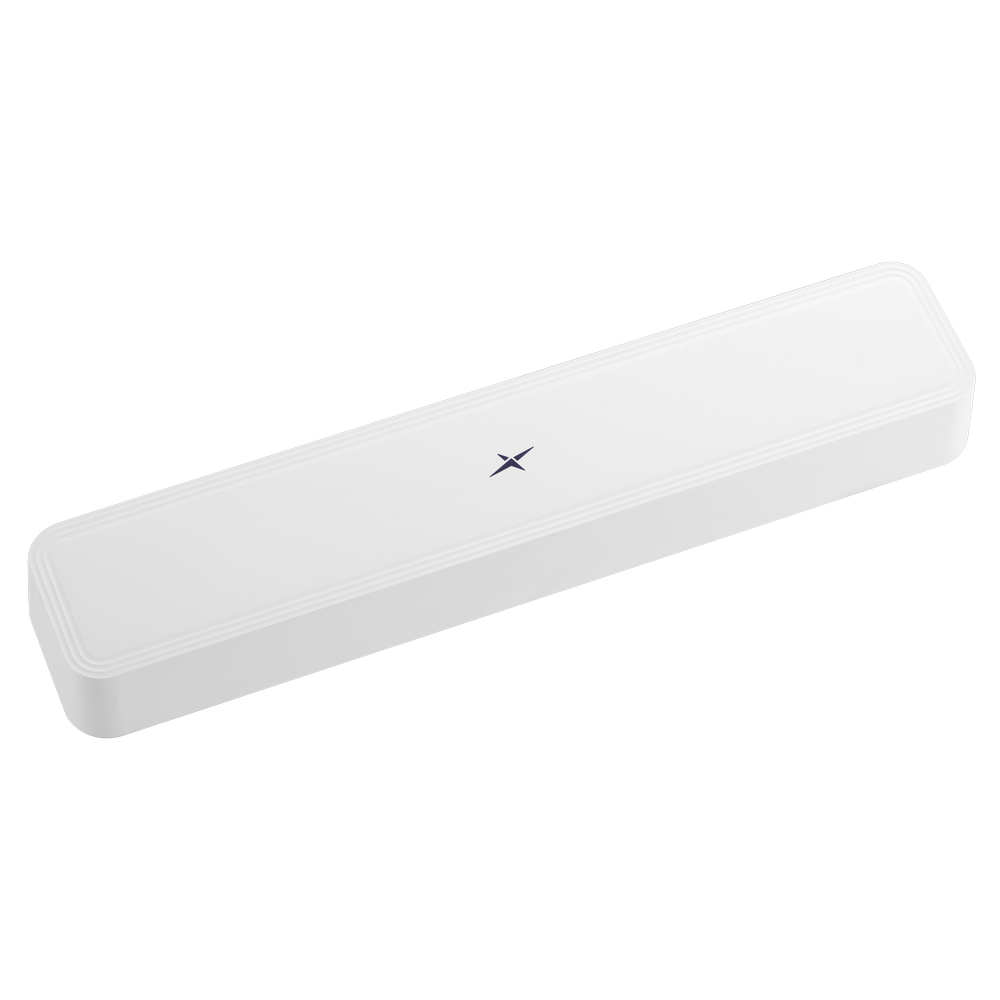

MA8006.W.001 Antenna External Router IP69K 5G, GNSS, Wi-Fi screw mount 6-in-1 Raptor X for Emergency and First Responder Vehicles, EV Charger Stations, Warehousing and Asset Tracking, Private LTE Networks

Raptor X MA8006 is a low-profile 6-in-1 combination antenna designed for next-generation routers, gateways, and mission-critical connectivity. It integrates dual-band GNSS (L1/L5) for accurate positioning, wideband cellular coverage for modern 5G/4G networks, and multi-element Wi-Fi support for reliable high-throughput wireless links.

Built for demanding environments, the rugged enclosure is designed to support harsh-use deployments where durability, washdown resistance, and impact protection are required.

Typical applications include:

• Emergency and First Responder Vehicles
• EV Charger Stations
• Smart Industry and Warehouse Applications
• Private LTE Networks

Connections

1x GNSS L1/L5 Bands
2x 5G/4G LTE Cellular 600-6000MHz
3x Wi-Fi® 2.4/5.8GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP69K
Enclosure Impact Rating: IK10
Impedance: 50 Ω
Dimensions: 350mm x 70mm x 39mm M22 Thread IP69K Rated Enclosure IK10 Impact Rated Enclosure
Weight: 840g

GNSS (L1/L5)

Frequency: 1164-1189, 1559-1592, 1565-1586, 1596-1610 MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, IRNSS
Polarization: RHCP
Impedance: 50 Ω
LNA Gain (dB): 32.3 (High-Band), 26.3 (Low-Band)
Noise Figure (dB): 2.4 (High-Band), 3.8 (Low-Band)
Input Voltage (V): +1.8 to 5.5
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174

5G/4G LTE Cellular (2x MIMO)

Frequency: 617-698, 698-824, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-302

Wi-Fi (3x MIMO)

Frequency: 2400-2500, 5150-5850 MHz
Standards: Wi-Fi 2.4/5GHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: TGC-302
