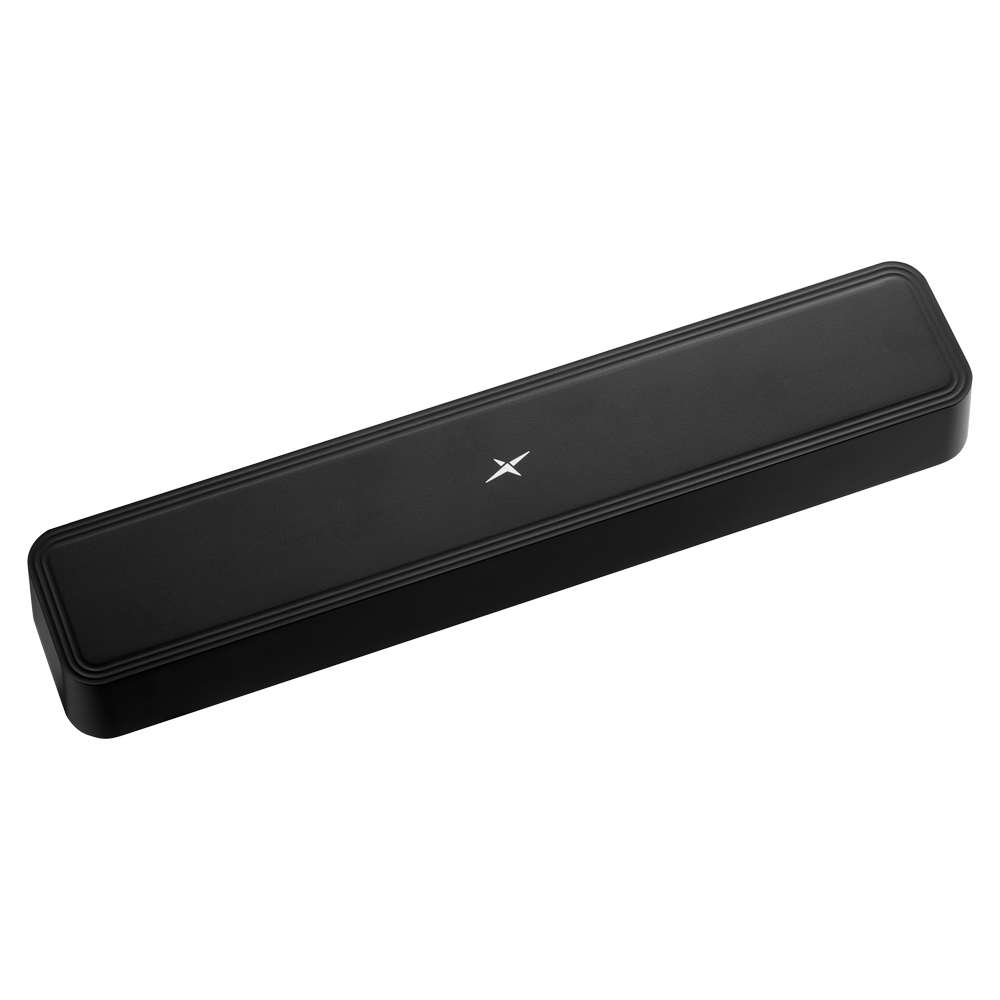

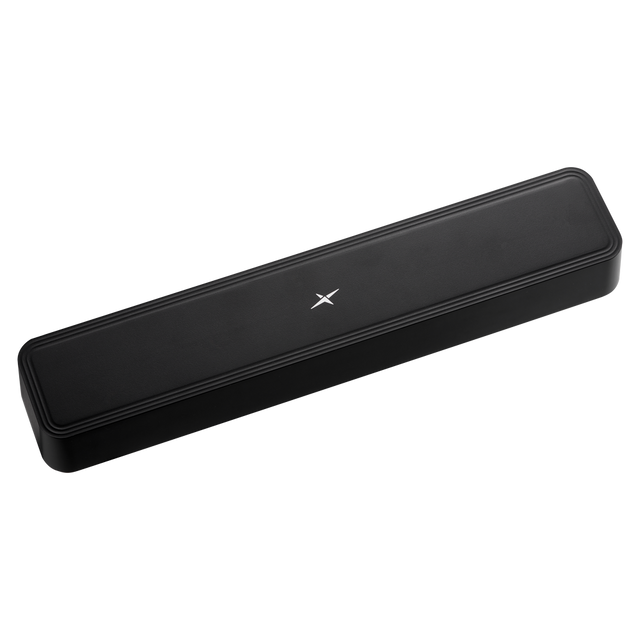

MA8007.K.009 Antenna External Low-Profile 5G, GNSS, Wi-Fi screw mount Raptor X 7-in-1 IP69K for Emergency and First Responder Vehicles, EV Charger Stations, Smart Industry and Warehouse Applications, Private LTE Networks

Raptor X MA8007 is a low-profile, rugged 7-in-1 combination antenna designed for next-generation routers, gateways, and mission-critical deployments. It integrates dual-band GNSS (L1/L5) for accurate positioning, multi-element wideband cellular performance for modern mobile networks, and dual-band Wi-Fi for high-throughput connectivity—while maintaining a compact footprint for space-constrained installations such as vehicle rooftops and industrial cabinets.

• 7-in-1 integrated design: GNSS + cellular + Wi-Fi in a single low-profile housing
• Wideband cellular coverage: supports modern 5G/4G network operation across a broad frequency span
• Dual-band GNSS: supports L1/L5 for improved positioning performance
• Rugged enclosure: built for harsh environments with IP69K and IK10 ratings

Typical applications include:

• Emergency and First Responder Vehicles
• EV Charger Stations
• Smart Industry and Warehouse Applications
• Private LTE Networks

Connections

1x GNSS L1/L5 Bands
4x 5G/4G LTE Cellular 600-6000MHz
2x Wi-Fi® 2.4/5.8GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP69K
Enclosure Impact Rating: IK10
Dimensions: 350mm x 70mm x 39mm M22 Thread IP69K Rated Enclosure IK10 Impact Rated Enclosure
Weight: 1810g
Thread: M22 Thread
Impedance: 50 Ω
VSWR: 2:1
Cable Assembly: 5m braided assembly of TGC-200

GNSS (L1/L5)

Frequency: 1164-1189 MHz; 1559-1610 MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS
Polarization: RHCP
Impedance: 50 Ω
LNA Gain (3.3V Typ.): 32.3 dB (High-Band), 26.3 dB (Low-Band)
Current Consumption: 16.8 mA
Input Voltage: +1.8 to 5.5 V
Connector Type: SMA(M)
Cable Length: 500cm
Cable Type: RG-174

5G/4G LTE (4x MIMO)

Frequency: 600-6000 MHz
Standards: 5GNR/4G LTE (includes 4G/3G/NB-IoT/Cat M bands as specified)
Radiation Pattern: Omni directional
Polarization: Linear
Impedance: 50 Ω
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 500cm
Cable Type: TGC-302

Wi-Fi (2x MIMO)

Frequency: 2400-2500 MHz; 5150-5850 MHz
Standards: Wi-Fi® (2.4/5.8GHz)
Radiation Pattern: Omni directional
Polarization: Linear
Impedance: 50 Ω
Max. Input Power: 10W
Connector Type: RP-SMA(M)
Cable Length: 500cm
Cable Type: TGC-302
