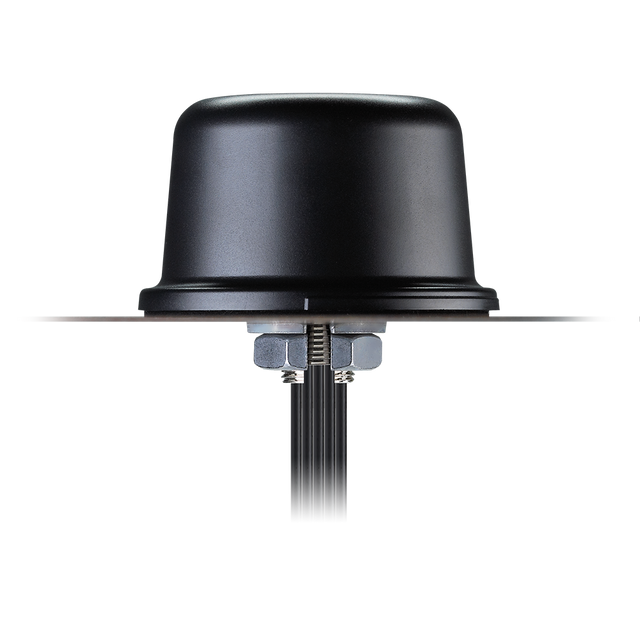

MA850.A.LBICG.001 Antenna External Low-Profile IP69K MIMO 5G, Wi-Fi, GNSS permanent mount 5-in-1 Colosseum for Bus Telematics, Remote Asset and Pipeline Monitoring, HD Video over LTE, First Responder and Emergency Services

The Colosseum MA850 is a rugged, low-profile, waterproof external antenna designed for worldwide telematics solutions that need high-performance 5G/4G MIMO, dual-band Wi-Fi, and GNSS in a single heavy-duty housing.

It supports fast data uplink/downlink for demanding cellular applications, while also providing reliable Wi-Fi connectivity and accurate GNSS positioning for tracking and location-aware services—ideal where space is limited but performance is critical.

Typical use cases include bus telematics, remote asset and pipeline monitoring, HD video over LTE, first responder and emergency services, and automotive vehicle tracking and telematics.

Connections

2x 5G/4G MIMO 600~6000MHz
2x Wi-Fi MIMO 2.4GHz/5.8GHz
1x GPS-GLONASS-Galileo-BeiDou

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Permanent Mount, Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP69K
Dimensions: Diameter 94.3mm, Height 57.4mm 0.3M RG174 with SMA(M)/RP-SMA(M) as standard Cust
Weight: 250g

5G/4G MIMO

Frequency: 617~698, 698~806, 824~960, 1427~1518, 1710~2200, 2300~2690, 3300~4200, 5150~5925 MHz
Impedance: 50Ω
VSWR: < 3
Polarization: Linear
Peak Gain (Max): 6.77dBi
Connector Type: SMA(M)
Cable Length: 30cm
Cable Type: RG-174

Wi-Fi MIMO

Frequency: 2400~2500, 4900~5850 MHz
Impedance: 50Ω
VSWR: <2 (2.4GHz), <3.5 (5.8GHz)
Polarization: Linear
ECC: <0.3
Peak Gain (Max): 5.7dBi
Connector Type: RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174

GNSS (Active)

Frequency: 1561MHz, 1575.42MHz, 1602MHz
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3:1 Max
LNA Gain (Typ.): 28dB (3.0V)
Noise Figure (Typ.): 2.7dB (3.0V)
Connector Type: SMA(M)
Cable Length: 30cm
Cable Type: RG-174
