MA850.A.LBICG.002 Antenna External High-Gain MIMO 5G, Wi-Fi, GNSS permanent mount Colosseum 5-in-1 for Bus Telematics, Remote Asset and Pipeline Monitoring, HD Video over LTE, First Responder and Emergency Services

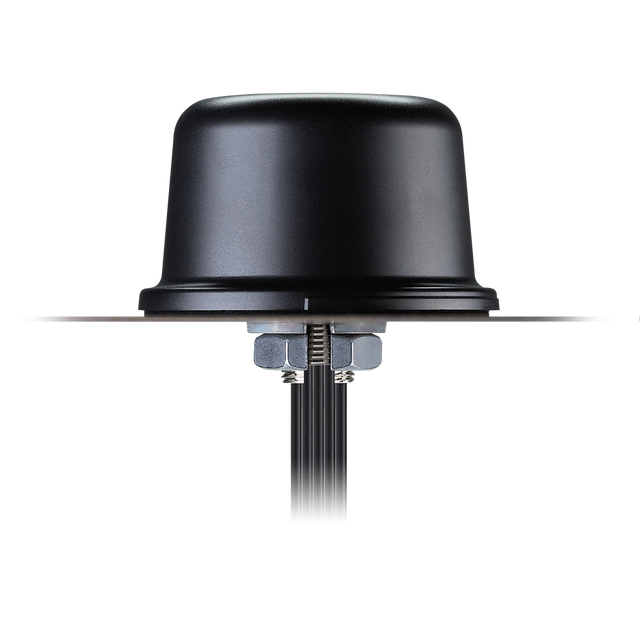

The Colosseum MA850 is a low-profile, heavy-duty, fully waterproof external antenna designed for worldwide telematics solutions requiring high-performance cellular, Wi-Fi, and GNSS connectivity in a compact housing.

• Space-saving design: Built for installations that need strong performance without using larger dome-style antennas.
• Reliable multi-network connectivity: Supports modern cellular operation with legacy fallback support where required by modem configuration.
• Accurate location tracking: Designed to provide stable GNSS performance for tracking in challenging environments.

Connections

2x 5G/4G MIMO 600~6000MHz
2x Wi-Fi MIMO 2.4GHz/5.8GHz
1x GPS-GLONASS-Galileo-BeiDou Antenna

Typical Applications include:

• Bus Telematics
• Remote Asset and Pipeline Monitoring
• HD Video over LTE
• First Responder and Emergency Services
• Automotive Vehicle Tracking and Telematics

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Permanent Mount, Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP69K
Impedance: 50Ω
VSWR: <3
Dimensions: Diameter: 94.3mm, Height: 57.4 mm
Weight: 250g

5G/4G MIMO

Quantity: 2x
Frequency: 600~6000MHz
Standards: 5GNR/4G/3G/2G/NB-IoT/Cat M
Impedance: 50Ω
VSWR: < 3
Polarization: Linear
Connector Type: FAKRA Code D
Cable Length: 30cm
Cable Type: RG174

Wi-Fi MIMO

Quantity: 2x
Frequency: 2400~2500 MHz, 4900~5850 MHz
Standards: Wi-Fi
Impedance: 50Ω
Polarization: Linear
Connector Type: FAKRA Code I
Cable Length: 30cm
Cable Type: RG174

GNSS (Active)

Quantity: 1x
Frequency: 1561MHz, 1575.42MHz, 1602MHz
Standards: GPS/GLONASS/Galileo/BeiDou
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3:1 Max
LNA Gain (Typ.): 28dB @3.0V
Noise Figure (Typ.): 2.7dB @3.0V
Connector Type: FAKRA Code C
Cable Length: 30cm
Cable Type: RG174
