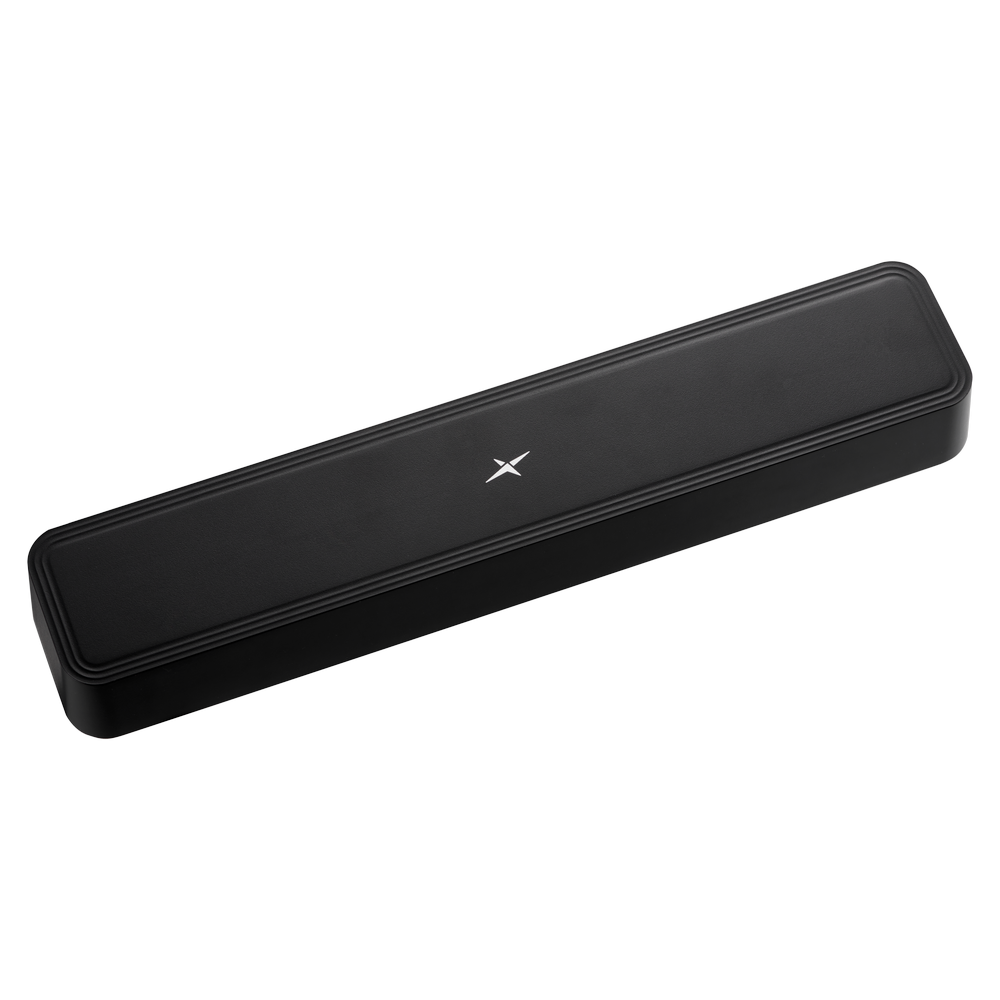

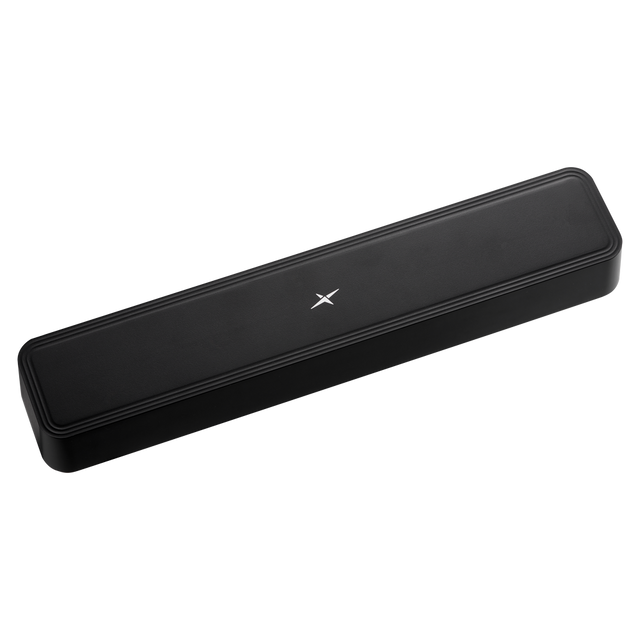

MA890.A.BIVW.001 Antenna External 4x 4G/5G MIMO 5G screw mount Raptor X 4-in-1 IP69K for Digital Signage, Transportation and Autonomous Vehicles, Private 5G Networks, Public Safety and First Responders

This low-profile permanent-mount antenna integrates four cellular elements in a compact enclosure to support high-throughput 5G connectivity with 4G coverage and legacy fallback support. It is designed for demanding deployments where robust durability and reliable performance are required.

• 4-in-1 design: Four integrated cellular antennas to support MIMO operation
• Wideband cellular support: Built to cover global 5G/4G bands with 3G/2G fallback
• Rugged enclosure: Impact-resistant housing designed for harsher environments
• Use cases: Digital signage, transportation/autonomous vehicles, private cellular networks, and public safety deployments

Connections

4x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40 C to +85 C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M

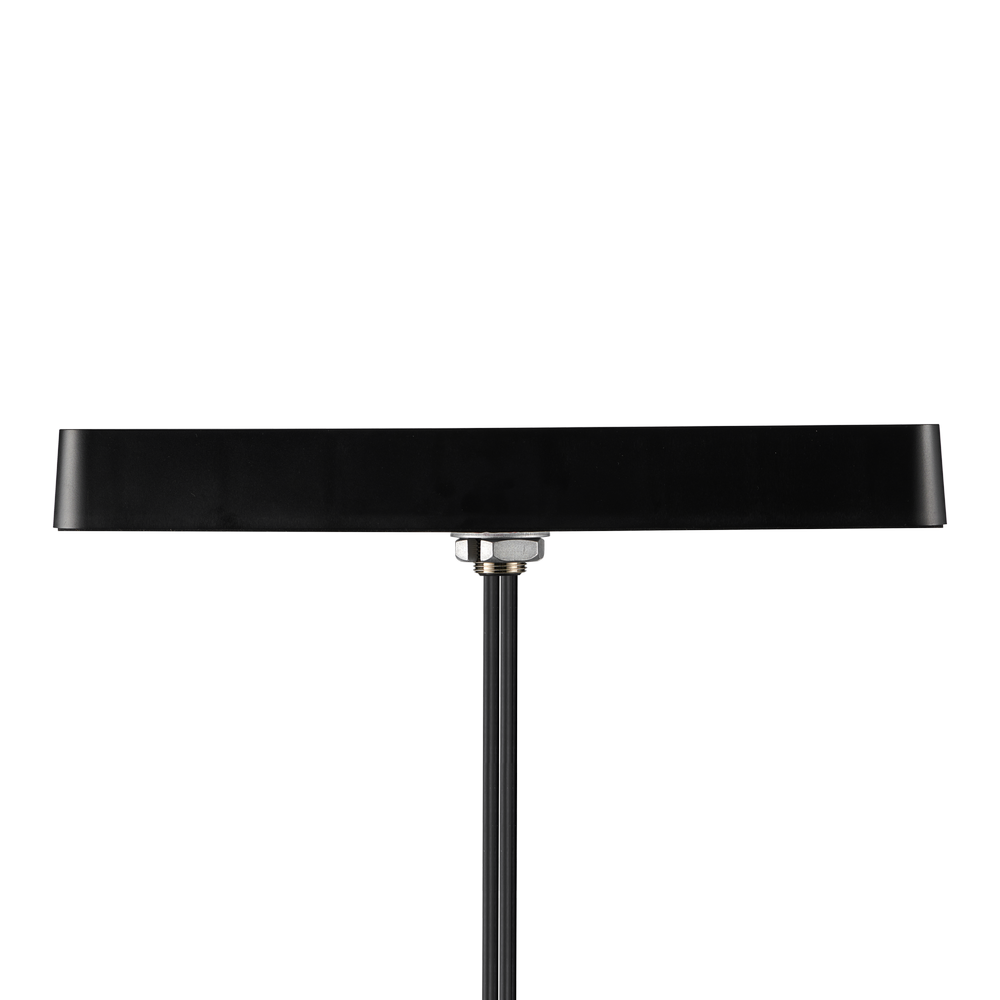

Mounting: Screw Mount
Type: Combination
IP Rating: IP67 & IP69K
Impedance: 50 9
Polarization: Linear
VSWR: <2
Dimensions: 350mm * 70mm * 40mm 3m Low Loss TGC-200 with SMA(M) connectors Custom Cables and
Weight: 950g

5G/4G MIMO (4x)

Frequency: 600-6000MHz
Standards: 5G/4G (including 3G/2G fallback)
Max. Input Power: 2W to 10W
Radiation Pattern: Omni
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
Gain (Max): 4.6 dBi
