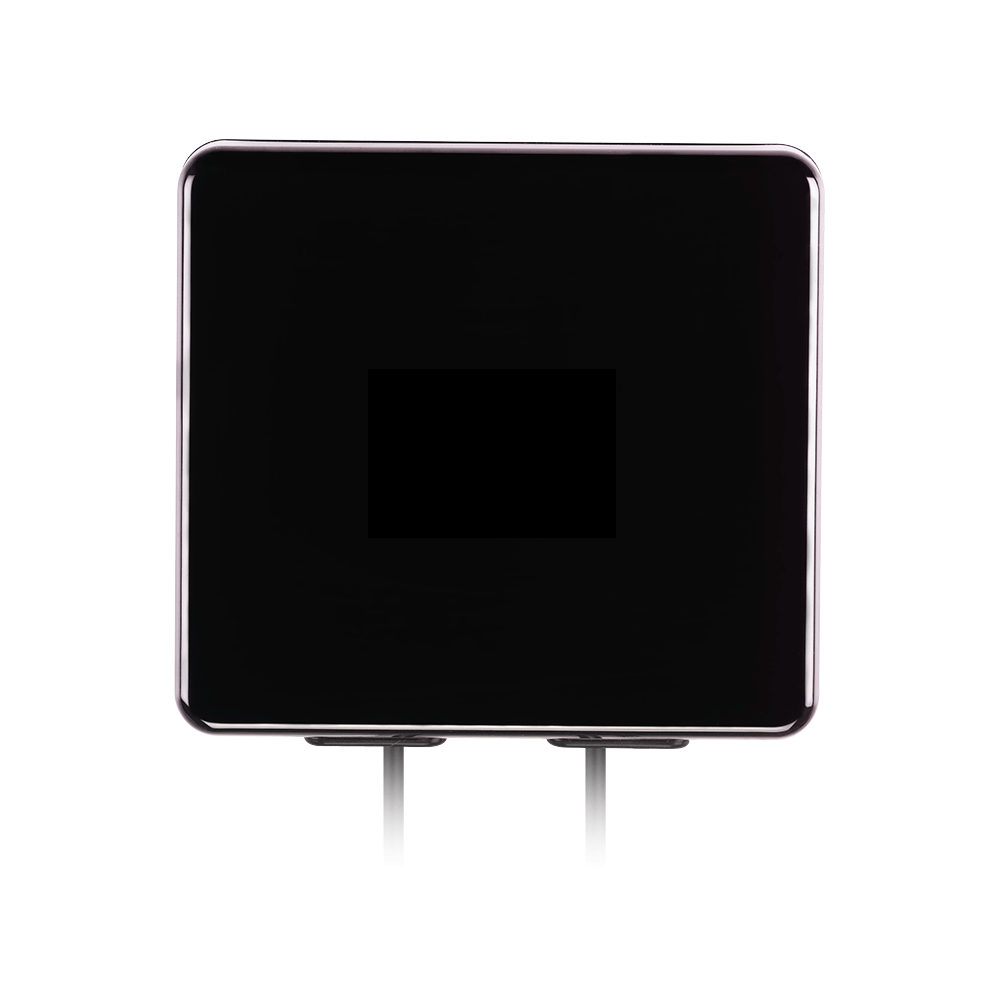

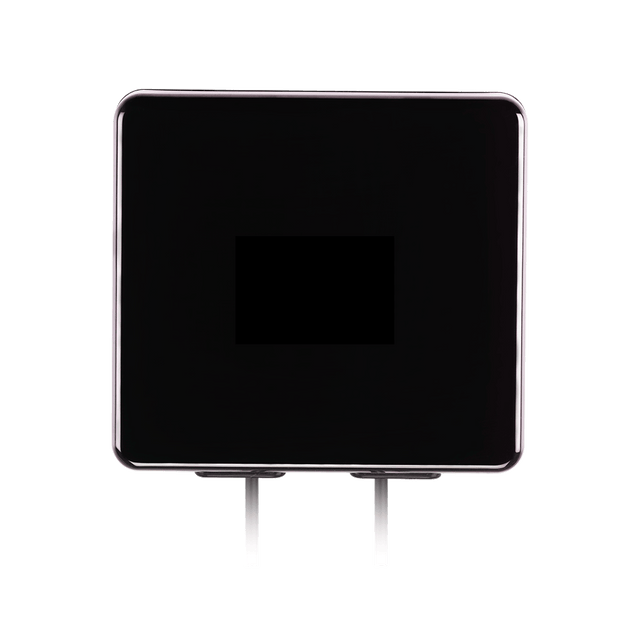

MA910.A.CG.001 Antenna External Low-Profile Router MIMO Wi-Fi 6E/7, Bluetooth, ISM adhesive mount Guardian IP67 for IoT Gateway and Routers, HD Video Streaming, Transportation, Remote monitoring applications
Couldn't load pickup availability
Datasheet
Datasheet
Description
Guardian is a low-profile, adhesive-mount external antenna designed to support modern Wi-Fi devices requiring MIMO performance for improved throughput and coverage.
Built for demanding deployments, it features a rugged housing suitable for harsh environments and is engineered for strong efficiency and high isolation between the integrated MIMO elements to help reduce self-interference.
- Low-profile adhesive mount design that mounts flush to a wall or surface
- MIMO Wi-Fi performance across 2.4 GHz and 5–7.125 GHz bands (Wi-Fi 6 supported)
- Rugged enclosure suitable for challenging environments
Typical use cases include:
- IoT Gateway and Routers
- HD Video Streaming
- Transportation
- Remote monitoring applications
Connections
2x Wi-Fi MIMO (including Wi-Fi 6) 2400~2500 MHz, 5150~5850 MHz, 5925~7125 MHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Dimensions: 146 * 134 * 20 mm RoHS & Reach Compliant Also available in White
Weight: 455g
Wi-Fi MIMO
Frequency: 2400~2500 MHz, 5150~5850 MHz, 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6), Bluetooth
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
VSWR: 3:1
Peak Gain (dBi): 2.4 GHz (0.8 / -0.1), 5.8 GHz (0.5 / 1.6), 7.1 GHz (1.6 / 3)
Connector Type: 2x RP-SMA(M) Straight
Cable Length: 2x 300cm
Cable Type: TGC-200
