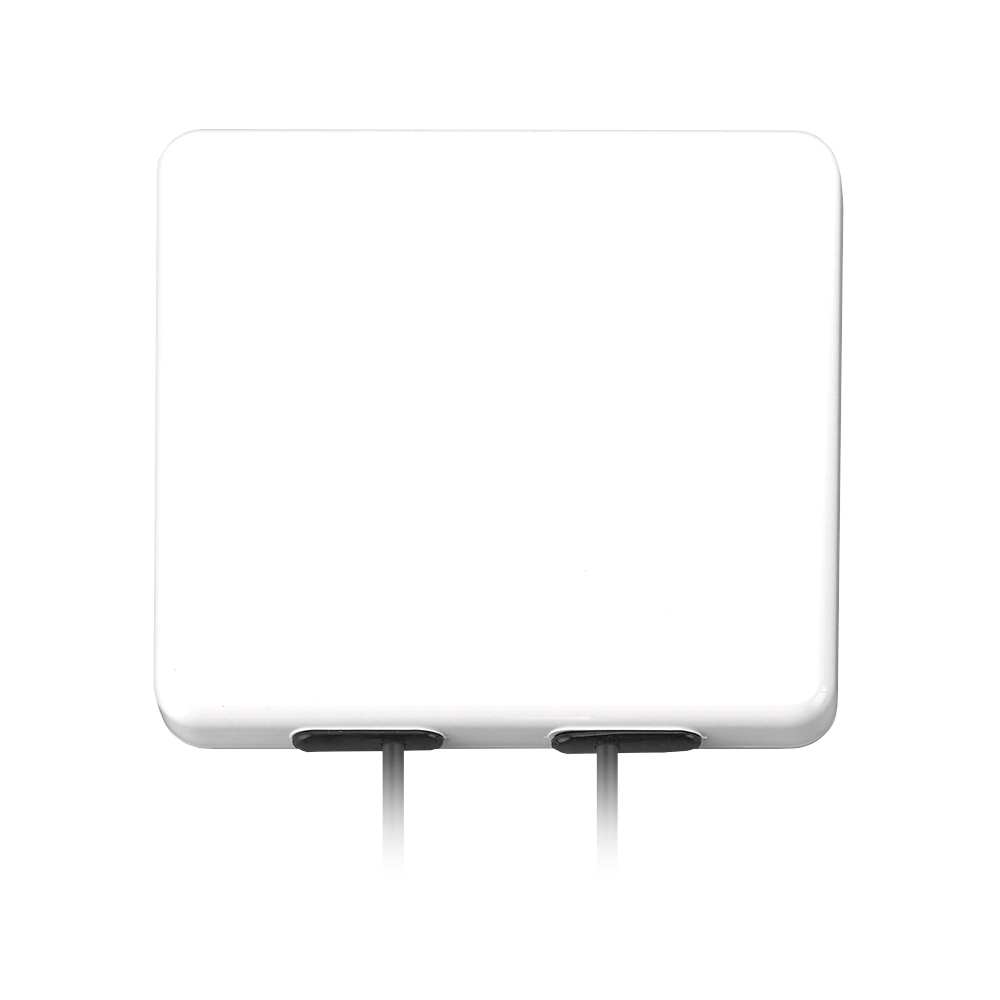

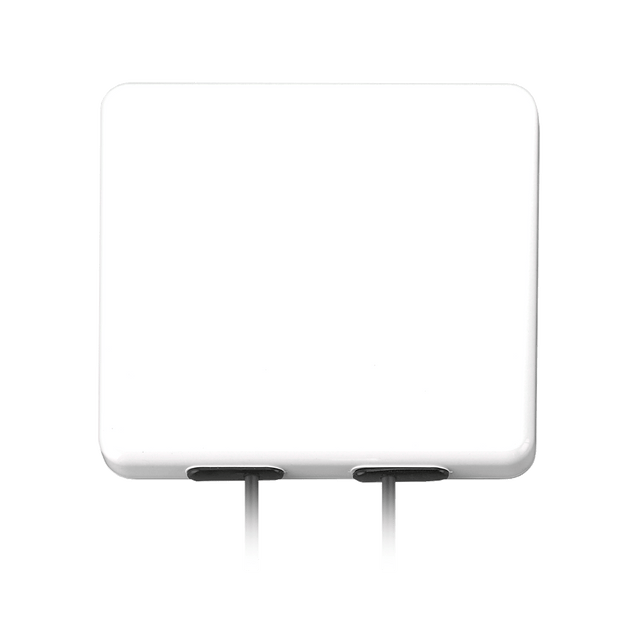

MA910.W.A.CG.001 Antenna External Low-Profile MIMO Router Wi-Fi 6E/7, Bluetooth adhesive mount Guardian 2-in-1 IP67 for IoT Gateway and Routers, HD Video Streaming, Transportation, Remote monitoring applications

The Guardian MA910.W is a low-profile, adhesive-mount external antenna designed to support high-throughput Wi-Fi connectivity with MIMO performance in a compact housing that mounts flush to a wall.

It is engineered for strong efficiency and high isolation between antenna elements to help reduce self-interference, making it a robust choice for demanding wireless installations in a wide range of environments.

Ideal for:

• IoT Gateway and Routers
• HD Video Streaming
• Transportation
• Remote monitoring applications

Connections

2x Wi-Fi MIMO 2.4GHz/5.8/7.1GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Dimensions: 146*134*20mm
Weight (including cable): 445g
Impedance: 50 Ω
VSWR: 3:1
Storage Temperature: -40°C to 90°C
Humidity: Non-condensing 65°C 95% RH

Wi-Fi MIMO

Frequency: 2400~2500, 5150~5850, 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6), Bluetooth
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
Peak Gain (dBi): 2.4GHz: 0.8 (MIMO1), -0.1 (MIMO2) | 5.8GHz: 0.5 (MIMO1), 1.6 (MIMO2) | 7.1GHz: 1.6 (MIMO1), 3 (MIMO2)
Average Gain (dB): 2.4GHz: -6.9 (MIMO1), -7 (MIMO2) | 5.8GHz: -6.8 (MIMO1), -6.9 (MIMO2) | 7.1GHz: -6 (MIMO1), -6.8 (MIMO2)
Efficiency (%): 2.4GHz: 20.2 (MIMO1), 20 (MIMO2) | 5.8GHz: 20.7 (MIMO1), 20.6 (MIMO2) | 7.1GHz: 25.5 (MIMO1), 22 (MIMO2)
Connector Type: 2x RP-SMA(M) Straight (Reverse Polarity)
Cable Length: 2x 300cm
Cable Type: TGC-200
