Description

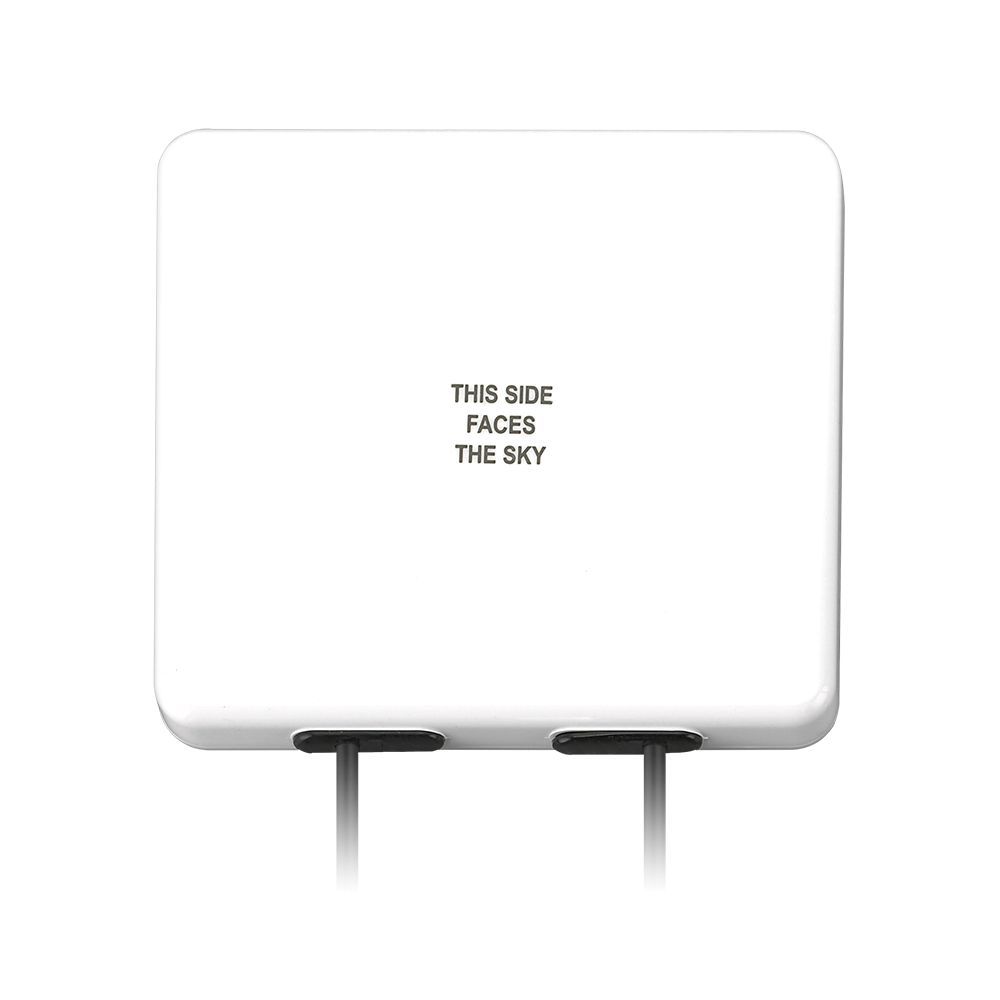

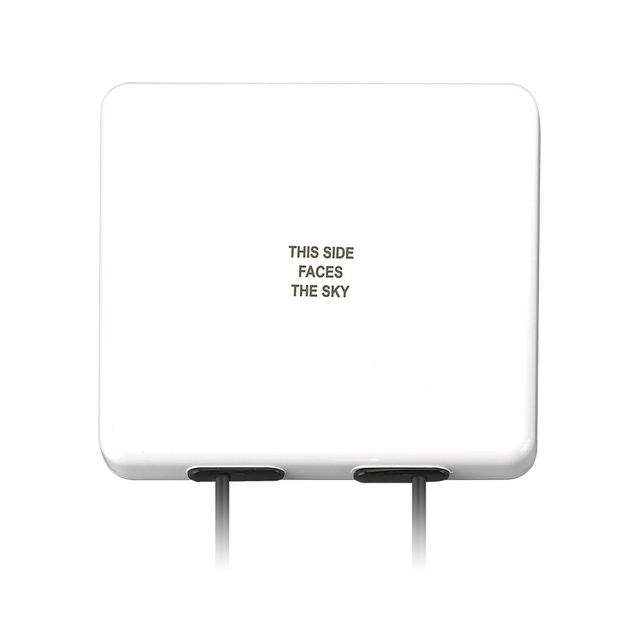

This low-profile panel antenna is designed to mount flush to a wall or flat surface, delivering robust external M2M connectivity for demanding deployments. Its heavy-duty, waterproof enclosure supports reliable cellular performance for modern gateways and routers.
- Low-profile housing designed to sit flush on a mounting surface
- MIMO cellular support for improved throughput and signal robustness
- Rugged waterproof enclosure suited to harsh environments
- Flexible placement for internal or external mounting on vehicles and equipment
Typical use cases include: IoT Gateway and Routers, HD Video Streaming, Transportation, Remote monitoring applications.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount, Wall Mount
Type: Combination
IP Rating: IP67
Dimensions: is 146*134*20mm (L*W*H). It is IP67 waterproof and comes with a 3M foam adhesive
Weight: 672g
4G/LTE MIMO
Frequency: 698 to 960MHz / 1710 to 2170MHz / 2490 to 2690MHz / 3300 to 3600MHz
Standards: Worldwide 4G Bands including 3G and 2G
Impedance: 50Ω
VSWR: <3
Polarization: Linear
Gain (Max): 2.99 dBi
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: KSR200-P
