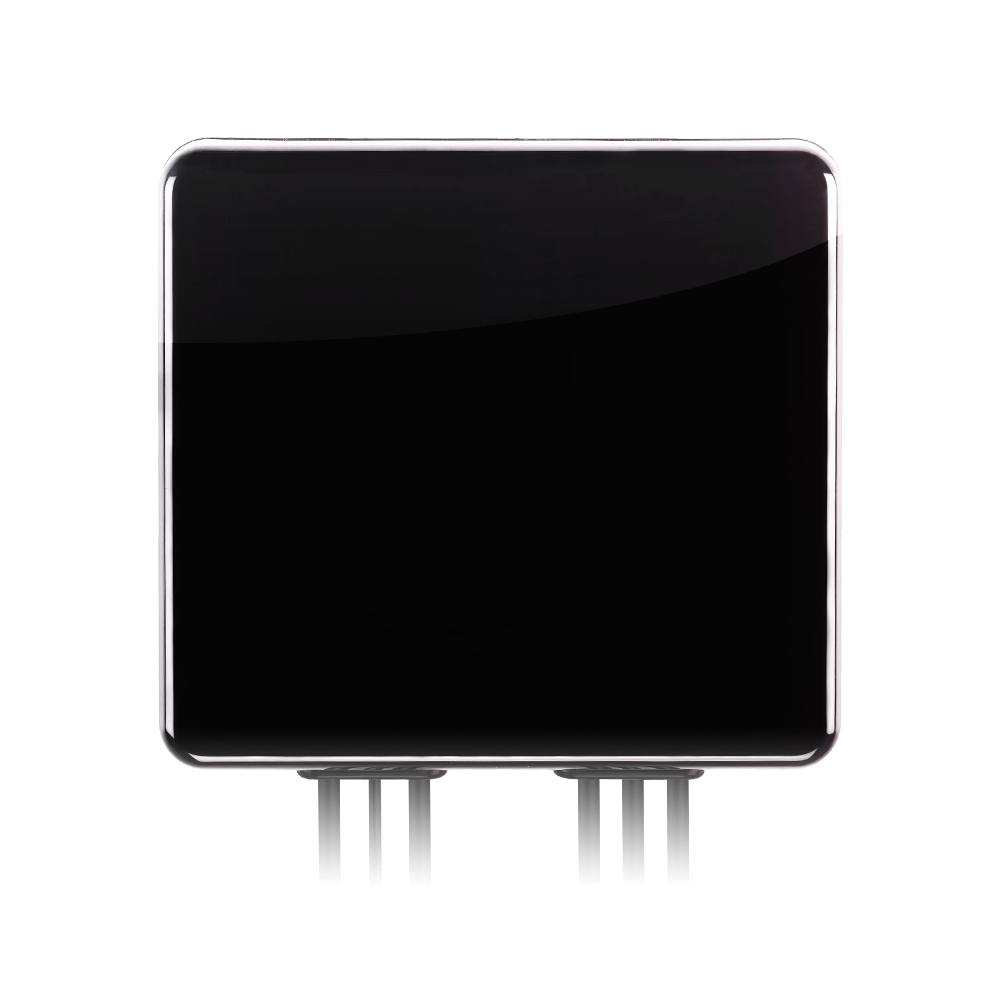

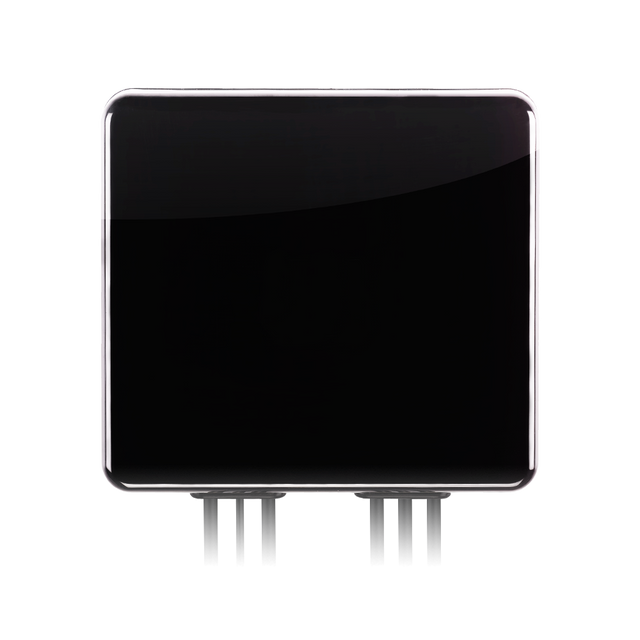

MA931.A.LBICGH.008 Antenna External Router Low-Profile 5G, GNSS, Wi-Fi adhesive mount Guardian 6-in-1 for IoT Gateway, Routers, Transportation, Remote Monitoring

The Guardian MA931 is a low-profile 6-in-1 combination antenna designed to consolidate multiple wireless services into a single rugged unit for gateway and router devices. Its heavy-duty housing mounts flush to a surface using an adhesive mount approach, helping simplify installations where space and aesthetics matter.

Covering wideband cellular, dual-band Wi-Fi, and GNSS positioning, this antenna supports high-throughput uplink/downlink needs while maintaining strong isolation between integrated antennas to help reduce self-interference.

• 6-in-1 combination design to reduce the number of separate antennas required
• Wideband cellular support across 600MHz to 6GHz for modern networks
• Dual-band Wi-Fi support for 2.4GHz and 5.8GHz deployments
• GNSS support for accurate location and stable tracking performance
• Rugged enclosure rated for water and dust resistance (IP67)

Typical use cases include: IoT gateway and router devices, HD video streaming, transportation, and remote monitoring deployments.

Connections

1x GPS-GLONASS-GALILEO-BeiDou Antenna
2x 5G/4G MIMO 600-6000MHz
3x Wi-Fi MIMO 2.4GHz/5.8GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Panel, MIMO
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount, Wall Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 146*134*20mm
Weight: 921g

5G/4G MIMO

Quantity: 2x
Frequency: 600MHz - 6000MHz
Standards: 5G/4G (Worldwide 4G bands including 3G and 2G)
Impedance: 50Ω
Polarization: Linear
VSWR: 3:1
Max Input Power: 50W
Radiation Pattern: Omni
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-200

Wi-Fi MIMO

Quantity: 3x
Frequency: 2400~2500, 5150~5850 MHz
Standards: Wi-Fi
Impedance: 50Ω
Polarization: Linear
Max Input Power: 50W
Radiation Pattern: Omni
Connector Type: RP-SMA(M)
Cable Length: 200cm
Cable Type: TGC-200

GNSS (Active)

Quantity: 1x
Frequency: 1561-1602 MHz
Standards: GPS/GLONASS/Galileo/BeiDou (GNSS)
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3.0:1
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
