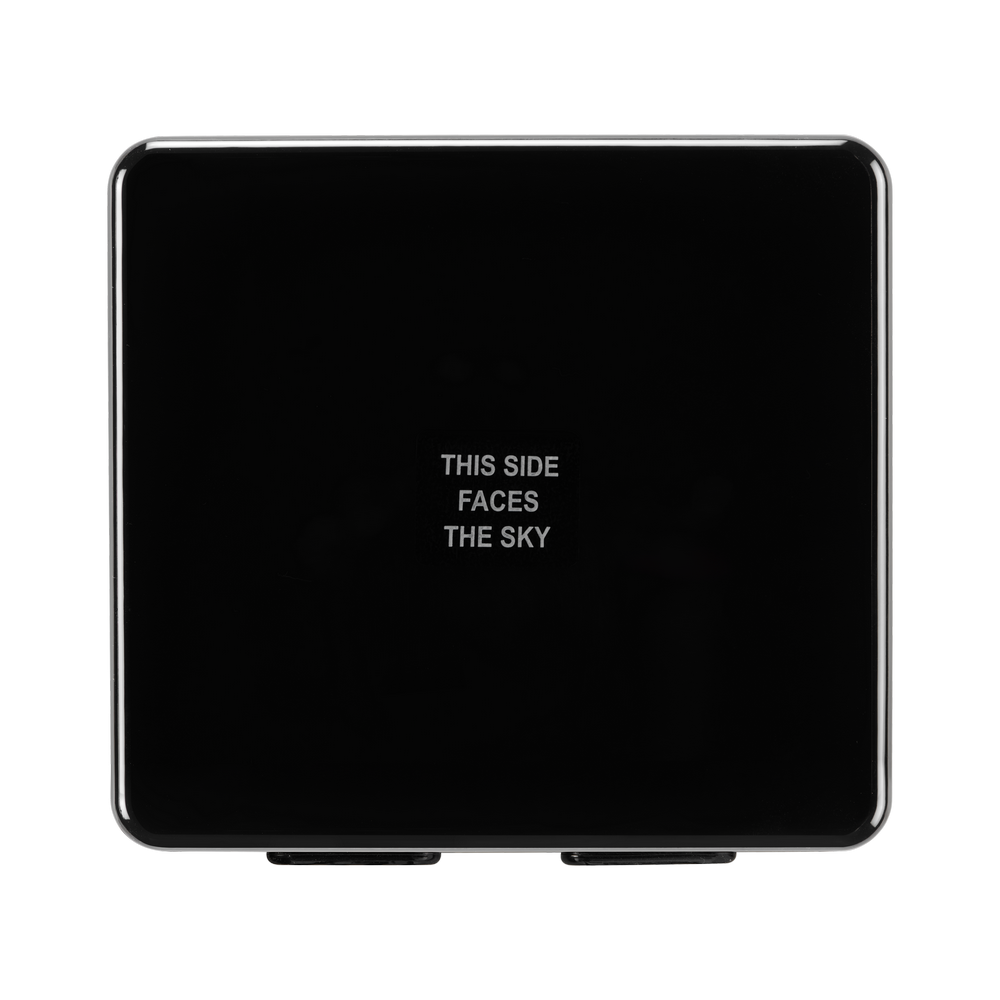

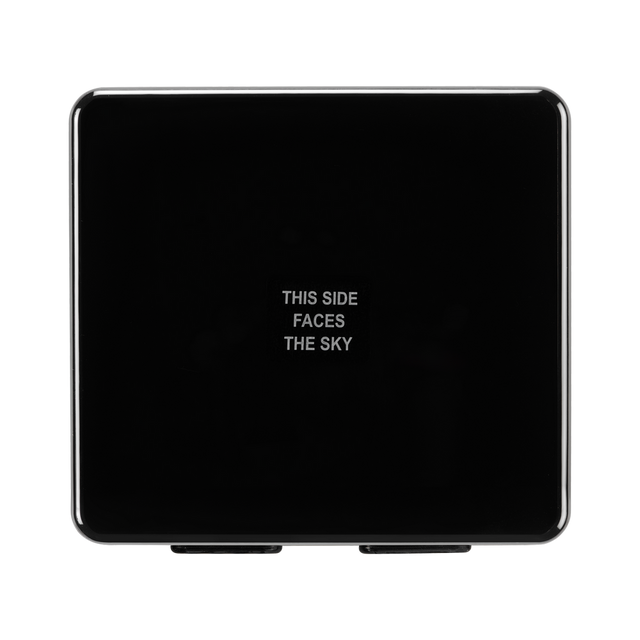

MA945.A.001 Antenna Low-Profile External Router High-Gain 5G, GNSS multi-mount panel Guardian HP 5-in-1 IP67 for Passenger Bus and Rail Applications, Automotive and Heavy Equipment, Vehicle Tracking and Telematics, First Responder and Emergency Services

This low-profile, heavy-duty combination panel antenna integrates five antenna elements in a compact external enclosure to support high-speed cellular connectivity and multi-band positioning in space-constrained installations. It is designed for use with modern modules and routers where reliable MIMO performance, high isolation, and low-loss cabling help maintain throughput and reduce dropouts.

It is well-suited for vehicle installations where roof drilling is not feasible or desired, including headliner or rear-window placement.

• Integrated 5-in-1 design: combines cellular MIMO and GNSS in one enclosure
• Rugged sealed housing: suited to harsh outdoor/vehicle environments
• Multi-mount flexibility: supports common mounting methods without complex mechanical work

Connections

1x GNSS (L1/L5)
4x 5G/4G MIMO 600-6000MHz

Installation / Environmental

The Guardian HP can be adhesive, or wall mounted as standard. The adhesive pad and wall bracket are included in the product packaging. Pole and desk mount option are also available as separate kits.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Multi-Mount, Adhesive Mount, Wall Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 146mm * 136mm * 20mm Cables: 2m Low Loss TGC-302 and RG-174 Connectors: SMA(M)/R
Weight: 800g

5G/4G Cellular MIMO

Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/LTE/3G/2G
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
VSWR: 2:1
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-302

GNSS (L1/L5)

Frequency: 1176.45MHz - 1603MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS
GNSS Bands: L1/L5
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Peak Gain (dBi): 3.08
Return Loss (dB): < -8
LNA Gain (dB): 28.2 - 30.3
Noise Figure (dB): 2.4 - 2.8
Input Voltage (V): + 1.8 to 5.5
Current Consumption (mA): 10 ± 3
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174

Download Datasheet PDF
