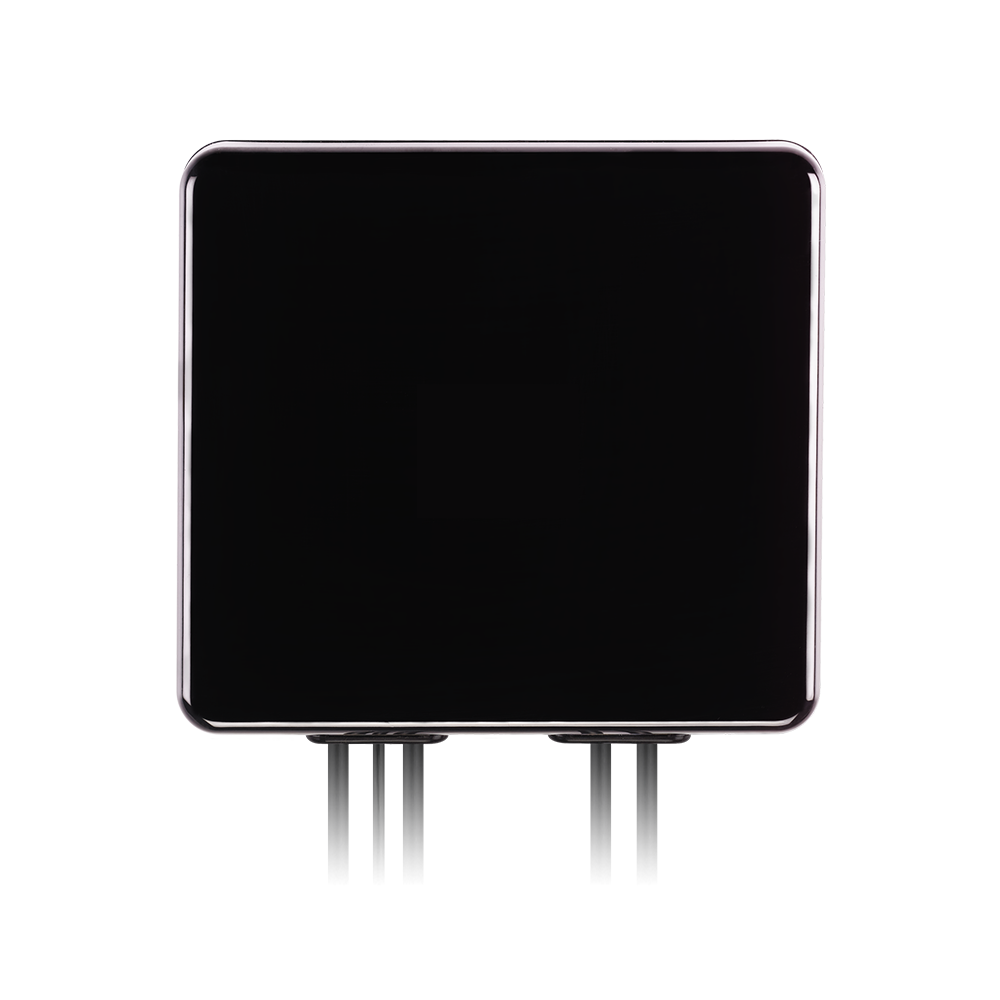

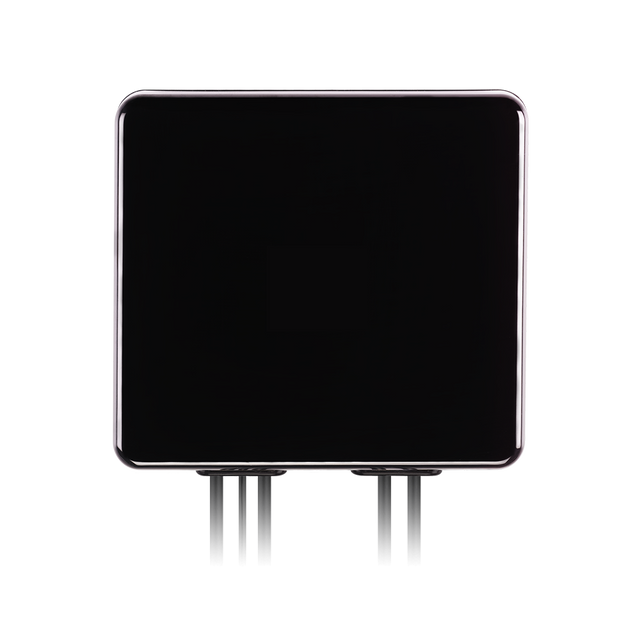

MA952.A.LBIVW.001 Antenna External Router 4x MIMO 5G, 4G/LTE, GNSS, Cat-M, NB-IoT adhesive mount panel Guardian 5-in-1 IP67 for IoT Gateways and Routers, HD Video Streaming, Transportation

The Guardian MA952 is a 5-in-1 combination panel antenna designed for gateway and router devices requiring high-performance cellular MIMO plus reliable GNSS positioning in a single external enclosure. Its wideband design supports worldwide 5G Sub-6 and 4G/LTE coverage (with 3G/2G fallback), while the integrated GNSS antenna supports multi-constellation tracking for improved location stability in challenging environments.

• 5-in-1 combination design: consolidates multiple antenna feeds for simplified deployments
• Wideband cellular coverage: supports 5G Sub-6 and global 4G/LTE bands
• Multi-constellation GNSS: supports GPS/GLONASS/Galileo/BeiDou for accurate positioning
• Rugged enclosure: sealed for outdoor-grade durability

Typical use cases include:

• IoT Gateways and Routers
• HD Video Streaming
• Transportation

Connections

4x 5G/4G MIMO 600MHz-6GHz
1x GPS/GLONASS/Galileo/BeiDou (L1)

Installation / Environmental

The housing is IP67 waterproof and the adhesive mount version comes with 3M adhesive. The antenna can be mounted internally or externally on a vehicle. The MA952 comes with 3m, low loss TGC-200 coaxial cables for the LTE antennas as standard and 3m, RG-174 on the GNSS connection. Customized cables and connector versions are also available. Contact your regional customer support for more information on how to integrate the MA952 or sales support.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M1, NB-IoT
Mounting: Adhesive Mount, Wall Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: 146*134*20mm 3m Low Loss TGC-200 and RG-174 Cables with SMA(M) connectors
Weight: 450g

5G/4G LTE MIMO (4x)

Frequency: 600MHz - 6000MHz
Standards: 5G NR Sub 6GHz, 4G/LTE (Worldwide), Cat-M1, NB-IoT, 3G / 2G fallback
Polarization: Linear
Impedance: 50Ω
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200

GNSS (Active)

Frequency: 1561-1602 MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2.0:1
LNA Gain @3.0V (Typ.): 30 dB
Noise @3.0V (Typ.): 1.13 dB
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
