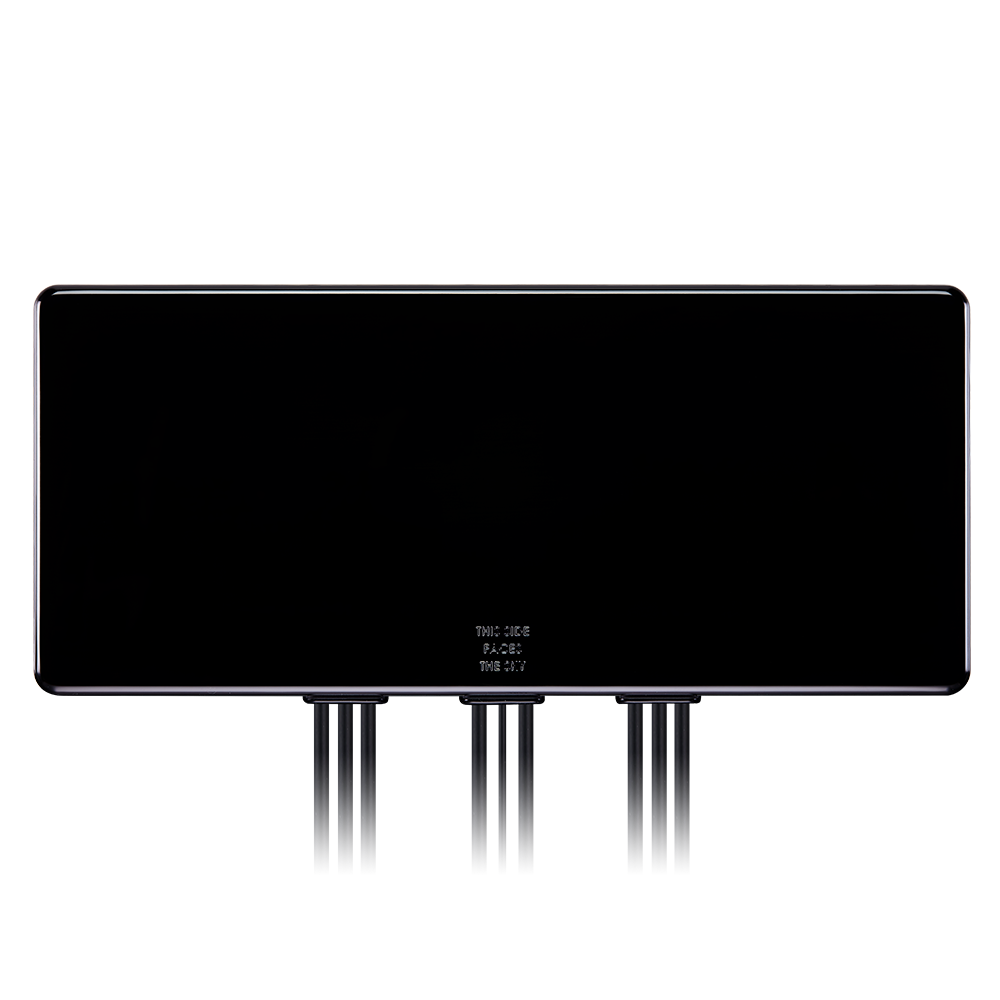

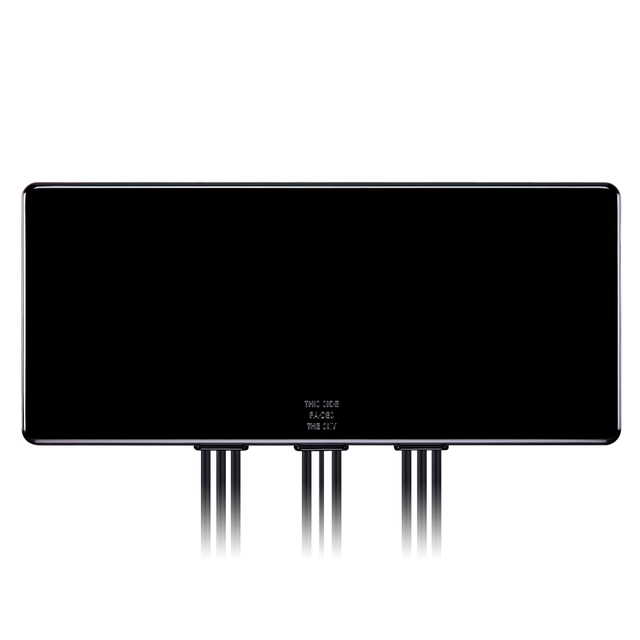

MA9909.A.002.WM Antenna External 8x LTE MIMO 4G/LTE, GNSS wall mount GuardianX 9-in-1 IP67 for Passenger Bus / Rail / Air Applications, Automotive and Heavy Equipment Vehicle Tracking and Telematics, Remote Asset and Pipeline Monitoring, HD Video over LTE

This low-profile, heavy-duty wall-mount multi-antenna combines 9 antenna elements in a single IP67-rated enclosure: 8x LTE MIMO for worldwide cellular coverage plus 1x active GNSS for reliable positioning. It is designed as an external combination antenna solution for installations where drilling through a vehicle roof or metal panel is not feasible.

• 9-in-1 integration: simplifies installation by consolidating LTE MIMO and GNSS into one housing
• Worldwide cellular support: suitable for 4G networks and backward compatibility to 3G/2G
• Rugged enclosure: IP67 protection for harsh outdoor and vehicle environments

Typical applications include:

• Passenger Bus / Rail / Air Applications.
• Automotive and Heavy Equipment Vehicle Tracking and Telematics
• Remote Asset and Pipeline Monitoring
• HD Video over LTE
• First Responder and Emergency Services
• M2M Applications/IoT

Connections

8x 2G/3G/4G LTE MIMO 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
1x Active GNSS (GPS/GLONASS/Galileo) 1574-1610MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Patch
Cellular Technologies: 4G/LTE
Location: External
Mounting: Wall Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: 360mm * 160mm * 16.5mm 1M Low Loss TGC-200 and RG174 with SMA(M)/RP-SMA(M) conne
Weight: 1300g

8x 2G/3G/4G LTE MIMO

Frequency: 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
Impedance: 50 Ω
Polarization: Vertical
VSWR: 2:1
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-200

1x Active GNSS (GPS/GLONASS/Galileo)

Frequency: 1574~1610MHz
Polarization: RHCP
Output Impedance: 50Ω
Output VSWR: 2.0 Max
Gain @ Zenith: 1575.42MHz 1.5 dBic Typ. @ Zenith; 1602MHz +0 dBic Typ. @ Zenith
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174

Download Datasheet PDF
