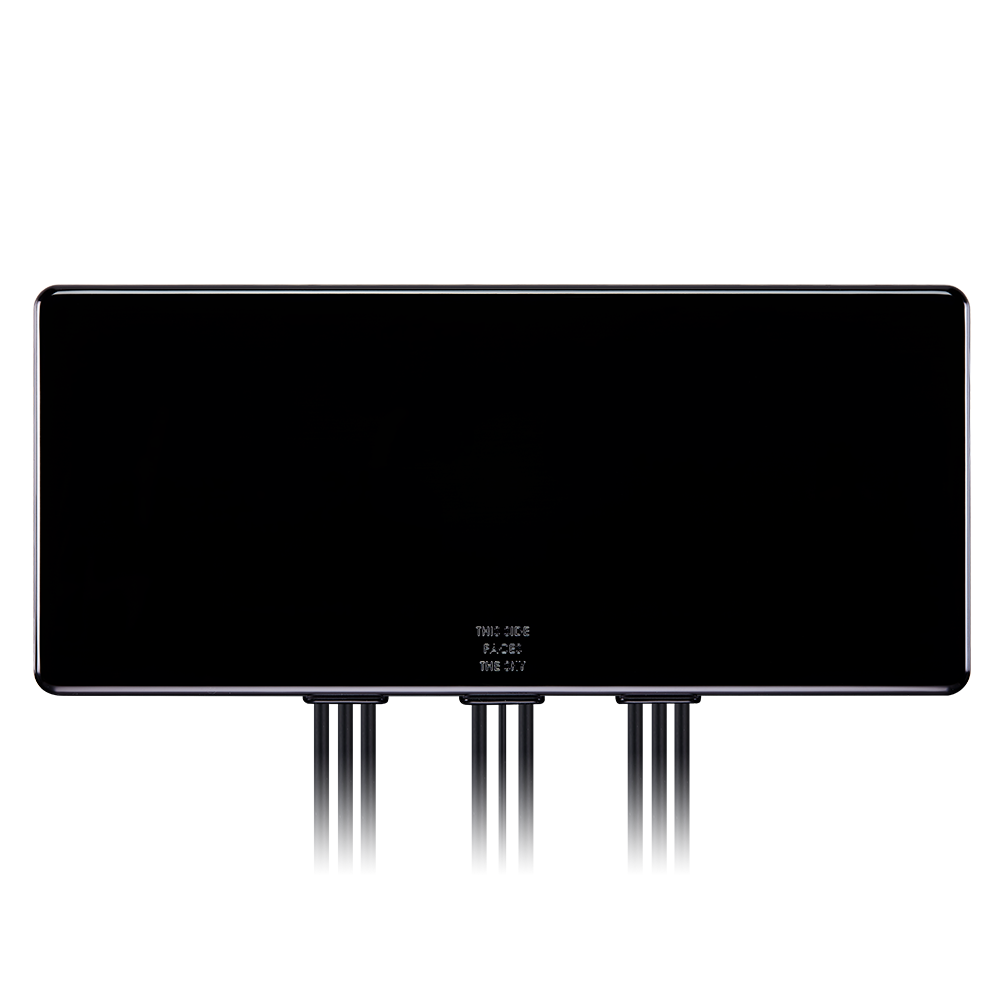

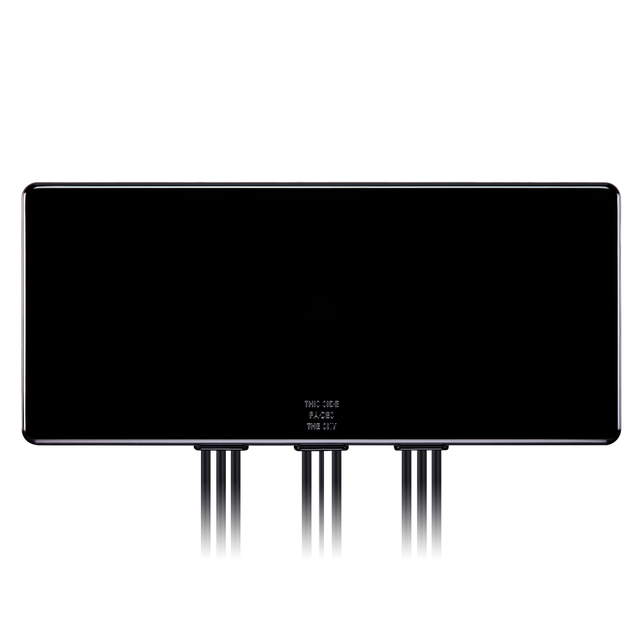

MA9909.A.002.wm Antenna External 8x LTE MIMO 4G/LTE, GNSS wall mount GuardianX 9-in-1 IP67 for Passenger Bus / Rail / Air Applications, Vehicle Tracking and Telematics, Remote Asset and Pipeline Monitoring, HD Video over LTE

This low-profile, heavy-duty wall-mount multi-antenna integrates nine antenna elements into a single IP67-rated enclosure, combining high-efficiency LTE MIMO performance with active GNSS reception for dependable connectivity and positioning.

Designed for external installations where drilling through a vehicle roof or metal panel is not feasible, it supports worldwide cellular coverage (including legacy networks) and provides improved throughput and reliability for demanding mobile and remote deployments.

• 9-in-1 integrated design: LTE MIMO + active GNSS in one enclosure
• Rugged protection: IP67 waterproof resistant housing for harsh environments
• Optimized MIMO performance: engineered for strong isolation and efficient operation to support higher data rates

Typical applications include:

• Passenger Bus / Rail / Air Applications.
• Automotive and Heavy Equipment Vehicle Tracking and Telematics
• Remote Asset and Pipeline Monitoring
• HD Video over LTE
• First Responder and Emergency Services
• M2M Applications/IoT

Connections

8x LTE MIMO 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
1x Active GNSS (GPS/GLONASS/Galileo) 1574-1610MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Patch
Cellular Technologies: 4G/LTE
Location: External
Mounting: Wall Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: 360mm * 160mm * 16.5mm 1M Low Loss TGC-200 and RG174 with SMA(M)/RP-SMA(M) conne
Weight: 1300g
Impedance: 50 Ω
VSWR: 2:1

LTE MIMO (8x)

Standards: 2G/3G/4G
Frequency: 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
Polarization: Vertical (Linear)
Impedance: 50 Ω
Connector Type: SMA(M) (Fully Customizable)
Cable Length: 100cm (Fully Customizable)
Cable Type: TGC-200 (Fully Customizable)

Active GNSS (1x)

Standards: GPS/GLONASS/Galileo
Frequency: 1574-1610MHz
Polarization: RHCP
Output Impedance: 50Ω
Output VSWR: 2.0 Max
Input Voltage: Min: 1.8V Typ: 3.0V Max: 5V
Connector Type: SMA(M) (Fully Customizable)
Cable Length: 100cm (Fully Customizable)
Cable Type: RG-174 (Fully Customizable)
