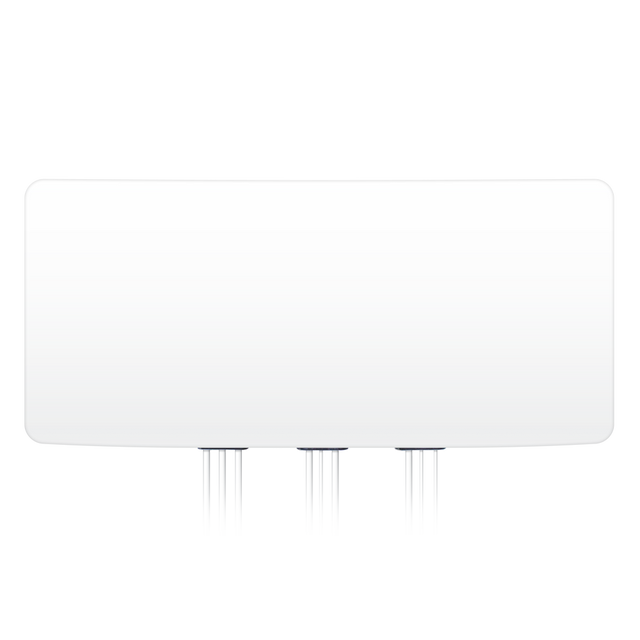

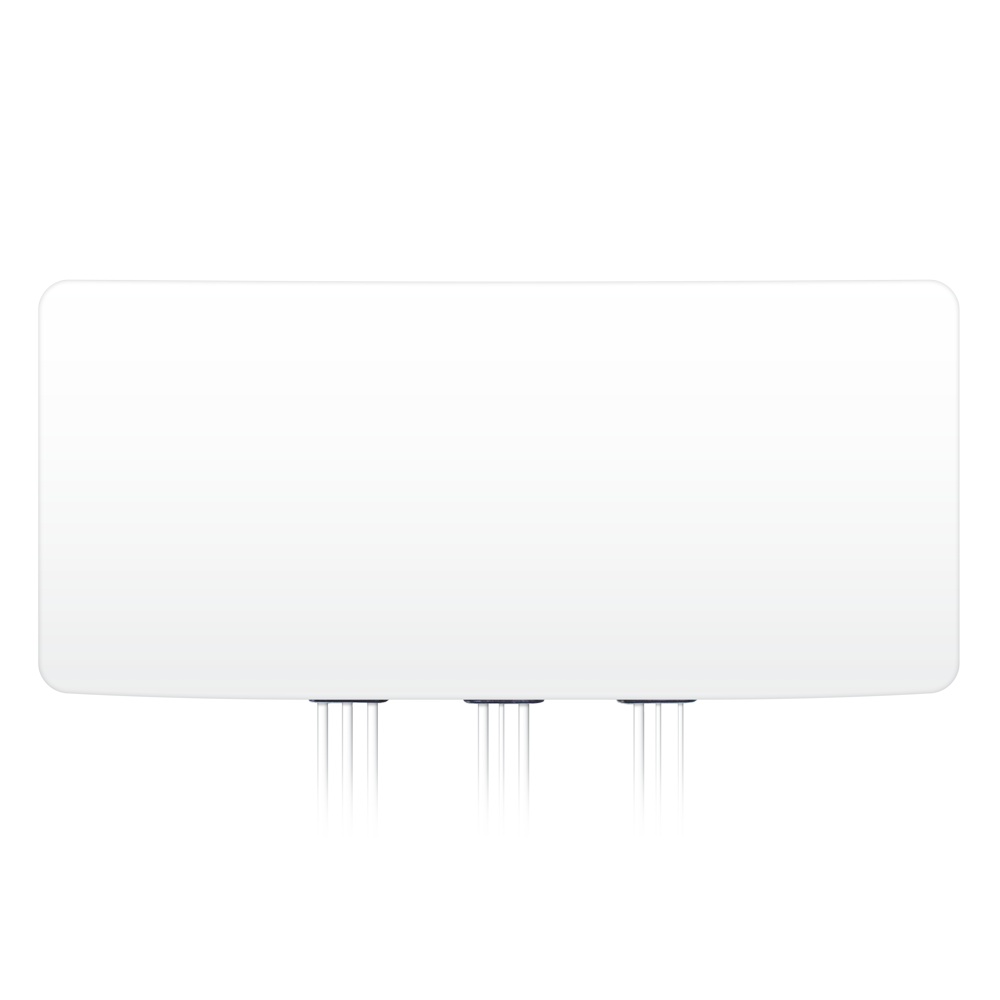

MA9909.W.A.002 Antenna External 4G/LTE, GNSS adhesive mount GuardianX 9-in-1 IP67 for Passenger Bus / Rail / Air Applications, Automotive and Heavy Equipment Vehicle Tracking and Telematics, Remote Asset and Pipeline Monitoring, HD Video over LTE

GuardianX is a low-profile, heavy-duty external multi-antenna solution that integrates 9 elements into a single enclosure: 8 LTE MIMO elements plus 1 active GNSS element. Its rugged, waterproof design is built for demanding mobile and industrial deployments where a single compact antenna system is preferred.

This combination antenna is ideal for vehicle and asset connectivity deployments where drilling through a roof or metal panel is not feasible, while still supporting worldwide cellular operation and multi-constellation satellite navigation.

• 9-in-1 combination design: consolidates LTE MIMO and active GNSS into one enclosure
• Built for harsh environments: IP67-rated waterproof resistant enclosure
• Designed for high data performance: supports LTE MIMO operation across multiple cellular bands

Connections

8x 4G/LTE MIMO 698 to 960MHz/1710 to 2170MHz/2490 to 2690MHz/3300 to 3600MHz
1x Active GNSS (GPS-GLONASS-Galileo)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Patch
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount, Wall Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: 360mm * 160mm * 16.5mm 3m Low Loss TGC-200 and RG174 with SMA(M)/RP-SMA(M) conne
Weight: 1300g

4G/LTE MIMO

Standards: Worldwide 4G Bands including 3G and 2G
Frequency: 698~806, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690, 3300~3600 MHz
Impedance: 50 Ω
Polarization: Vertical
VSWR: 2:1
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200

Active GNSS

Standards: GPS/GLONASS/Galileo
Frequency: 1574~1610MHz
Polarization: RHCP
Output Impedance: 50Ω
Output VSWR: 2.0 Max
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG174
