MA996.A.003 Antenna External High-Gain MIMO Router 5G, Wi-Fi 6E/7 multi-mount panel Guardian HP IP67 for Vehicle Tracking and Telematics, Automotive and Heavy Equipment, Passenger Bus and Rail Applications, First Responder and Emergency Services

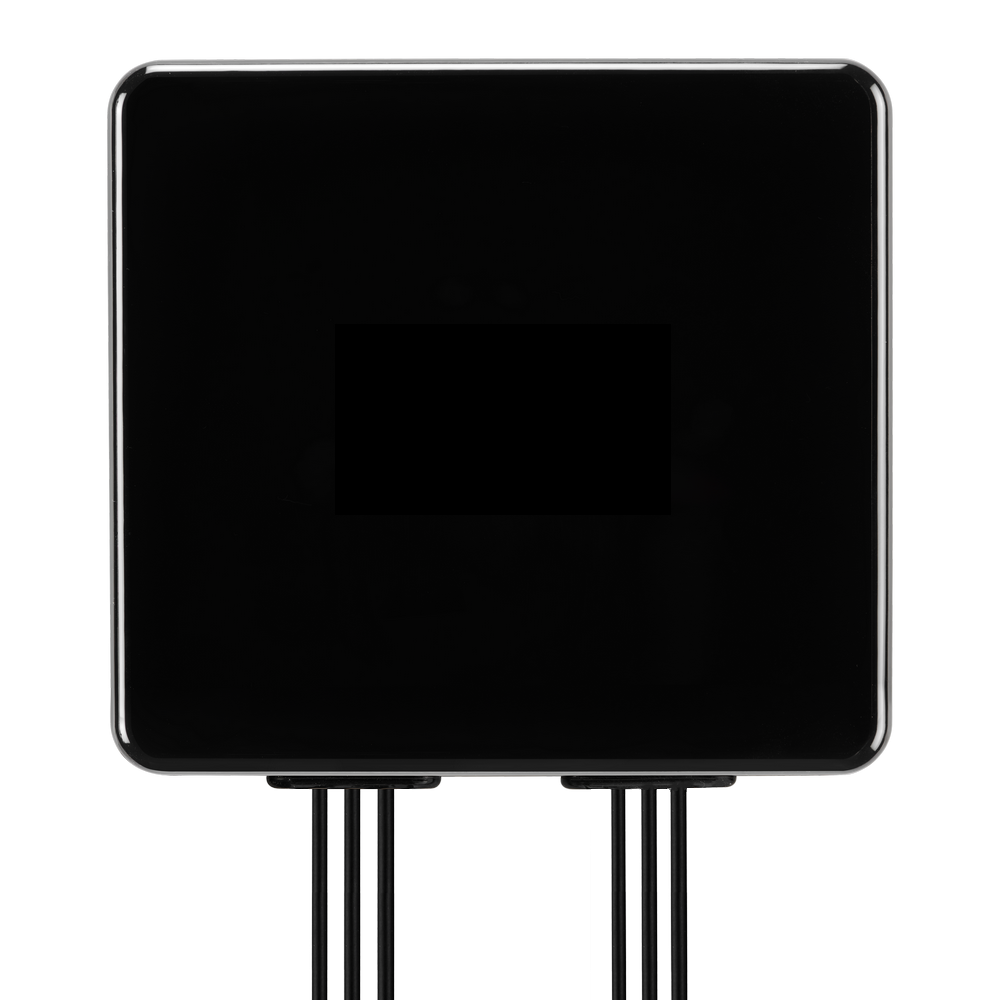

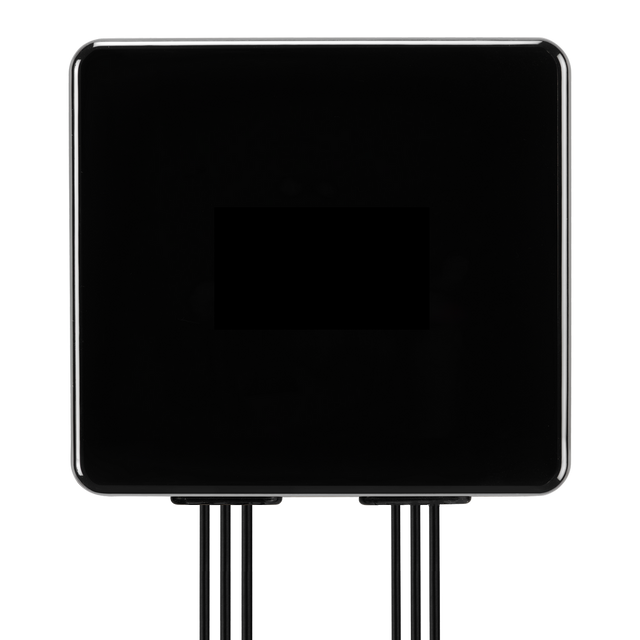

Guardian HP is a compact, low-profile combination panel antenna that integrates six antenna elements into a single rugged housing for high-performance vehicle and fixed-install connectivity. It is designed for space-constrained installations where drilling through a roof or metal panel is not feasible or desired.

• 6-in-1 combination design: integrates cellular MIMO and Wi-Fi MIMO elements in one enclosure
• Optimized for modern routers and modules: supports next-generation cellular plus Wi-Fi 6/6E operation
• Rugged enclosure: IP67-rated housing for demanding environments

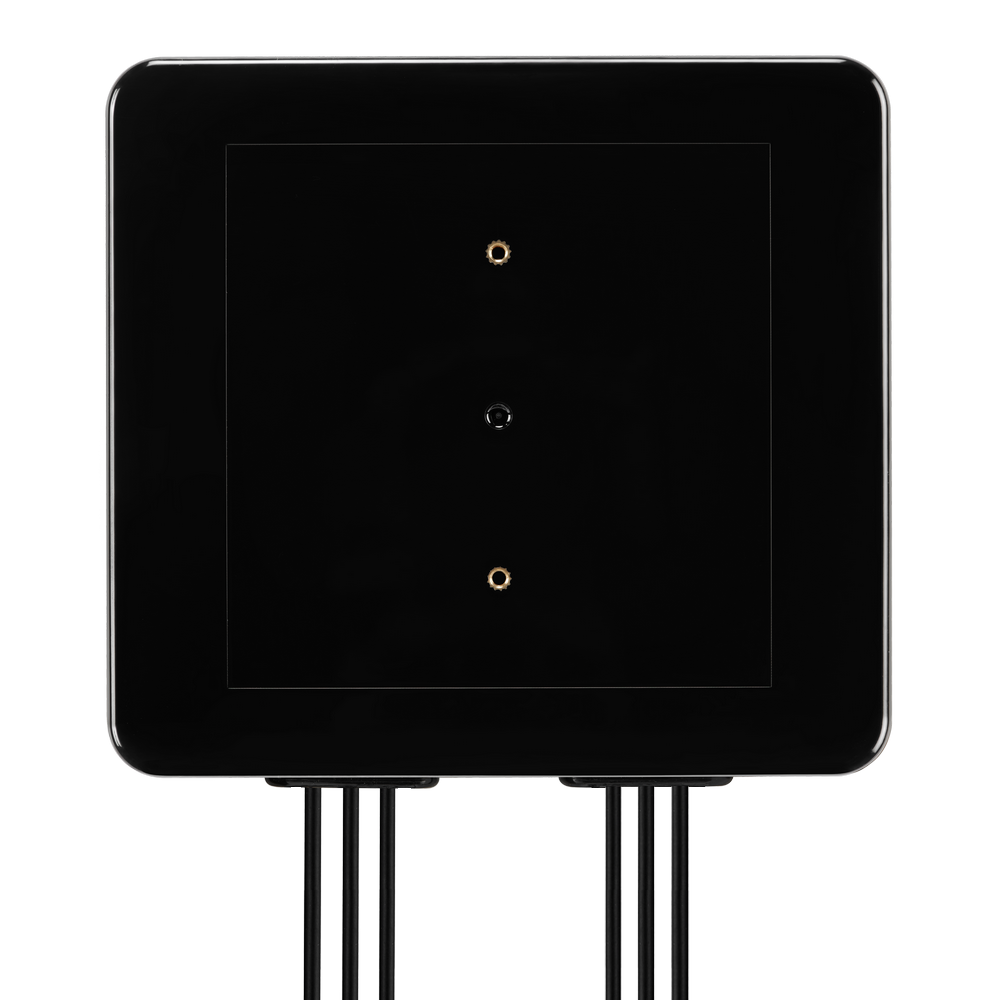

• Flexible mounting options: adhesive or wall mounting as standard; pole and desk mount options available as separate kits

Connections

4x 5G/4G MIMO 600MHz – 6GHz
2x Wi-Fi MIMO 2.4GHz/5.8/7.125 GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Multi-Mount, Adhesive Mount, Wall Mount, Pole Mount, Desk Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 146mm * 136mm * 20mm Cables: 2m Low Loss TGC-302 Connectors: SMA(M)/RP-SMA(M) Ro
Weight: 800g
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 7.42
Material: ASA
Relative Humidity: Non-condensing 65°C 95% RH
RoHS & REACH Compliant: Yes

5G/4G MIMO

Frequency: 600-6000 MHz
Standards: 5GNR/FR1/LTE/LTE-Advanced/WCDMA/HSPA/HSPA+/TD-SCDMA (cellular fallback to 3G and 2G)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-302

Wi-Fi MIMO

Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Standards: Wi-Fi 6 / Wi-Fi 6E
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: RP-SMA(M)
Cable Length: 200cm
Cable Type: TGC-302
