MA997.A.003 Antenna External Low-Profile 5G, GNSS, Wi-Fi 6E/7 multi-mount Guardian HP 7-in-1 IP67 for Passenger Bus and Rail Applications, Automotive and Heavy Equipment, Vehicle Tracking and Telematics, First Responder and Emergency Services

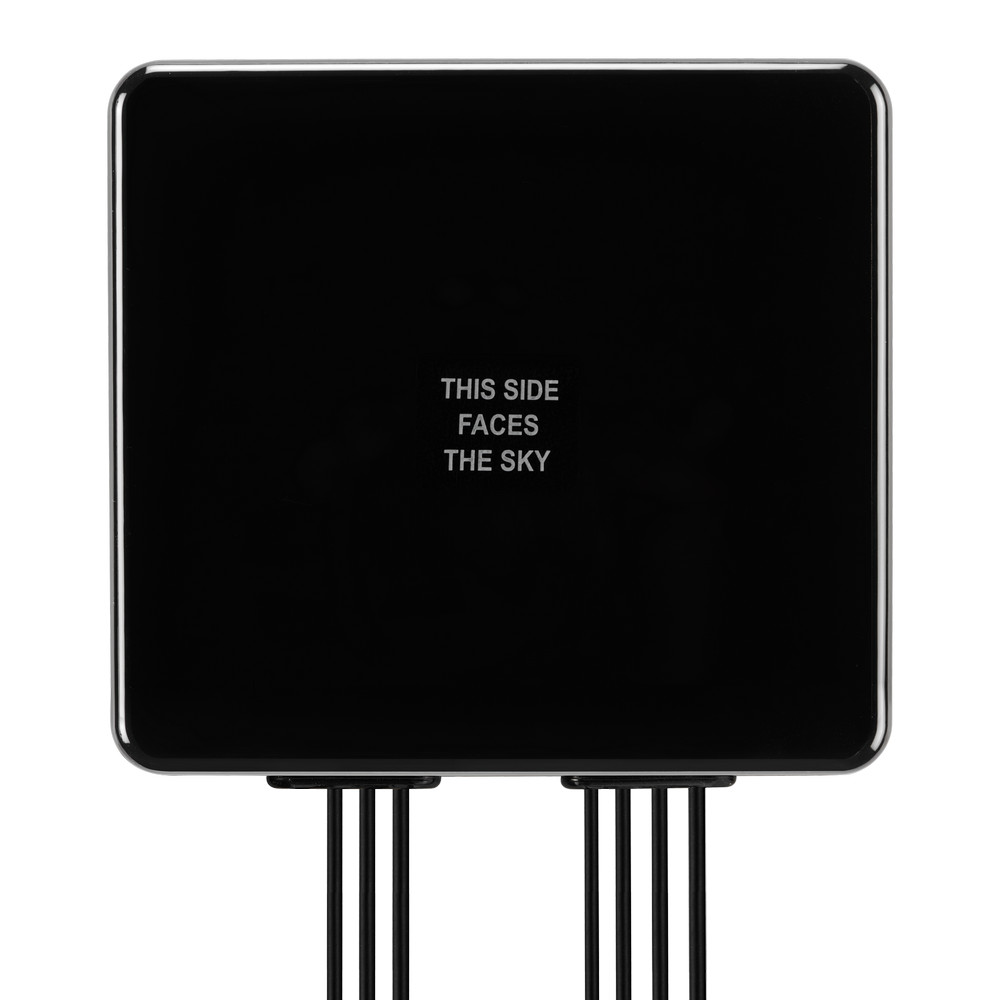

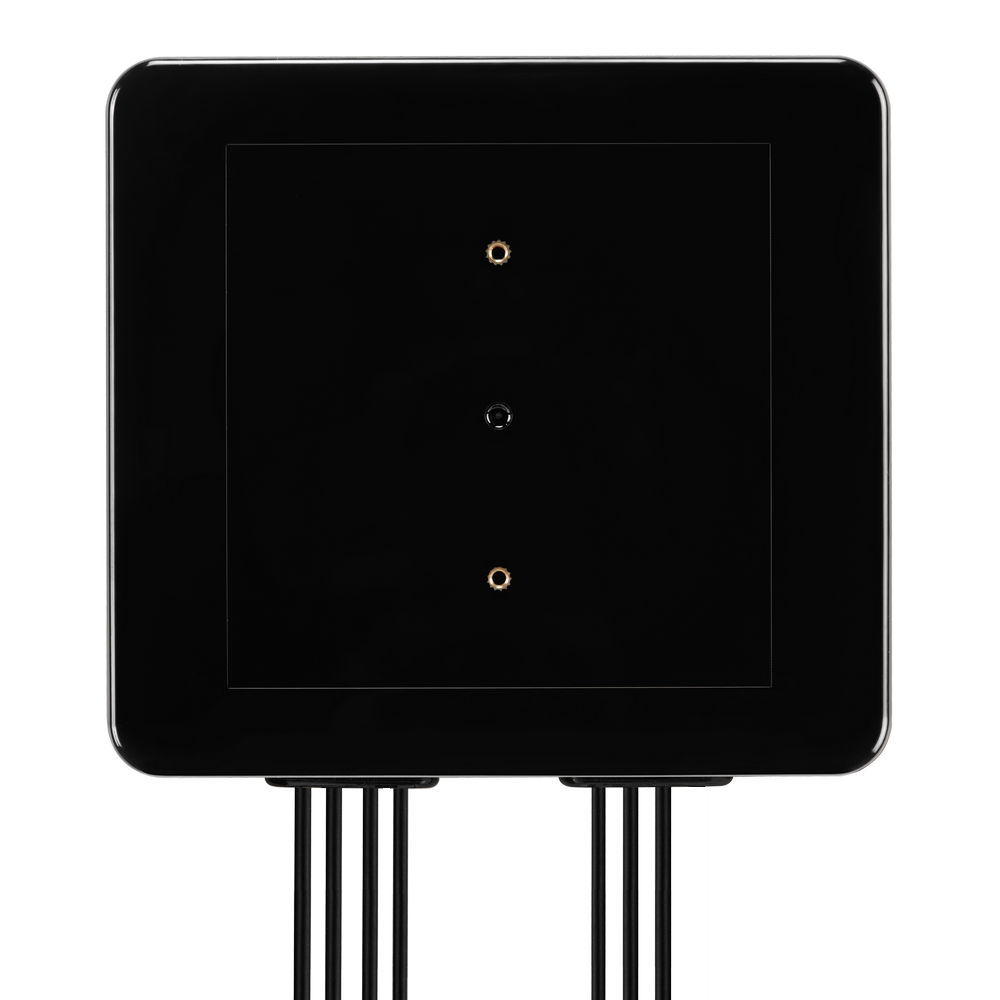

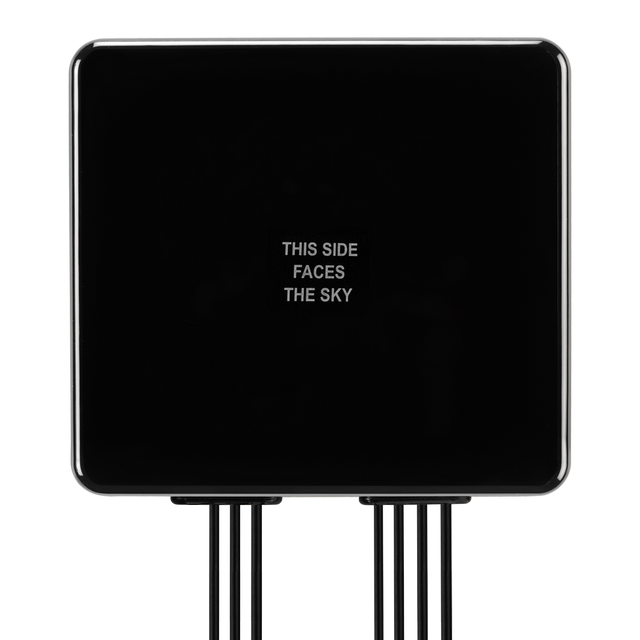

Guardian HP is a compact, low-profile external combination panel antenna that integrates multiple antenna elements into a single rugged enclosure. Designed to support next-generation modules and routers, it combines cellular MIMO, multiband GNSS, and Wi-Fi MIMO coverage in one durable solution.

Its IP67-rated housing is built for demanding environments and space-constrained installs, making it well-suited for vehicle and industrial deployments where a traditional roof-drill antenna install is not feasible or desired.

Typical applications include:

• Passenger Bus and Rail Applications
• Automotive and Heavy Equipment
• Vehicle Tracking and Telematics
• First Responder and Emergency Services
• HPUE applications such as Public Safety Communications and Critical Infrastructure and Utilities

Multi-mount installation options support adhesive or wall mounting as standard (adhesive pad and wall bracket included). Pole and desk mount options are also available as separate kits.

Connections

1x GNSS (L1/L5)
4x 5G/4G MIMO 600 – 6000 MHz
2x Wi-Fi MIMO 2.4GHz/5.8/7.125 GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Panel, MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT, LPWA
Mounting: Multi-Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 146mm * 136mm * 20mm Cables: 2m Low Loss TGC-302 and RG-174 Connectors: SMA(M)/R
Weight: 800g
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear

GNSS (L1/L5)

Frequency: 1176.45, 1561, 1575.42, 1603 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
LNA Gain: 30.3, 28.2, 28.3, 28.3 dB
Noise Figure: 2.6, 2.8, 2.8, 2.4 dB
Input Voltage: + 1.8 to 5.5 V
Current Consumption: 10 ± 3 mA
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-302 / RG-174

5G/4G MIMO

Frequency: 600 – 6000 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Gain (Max): 7.42 dBi
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-302 / RG-174

Wi-Fi MIMO

Frequency: 2.4GHz/5.8/7.125 GHz
Connector Type: RP-SMA(M)
Cable Length: 200cm
Cable Type: TGC-302 / RG-174

Download Datasheet PDF
