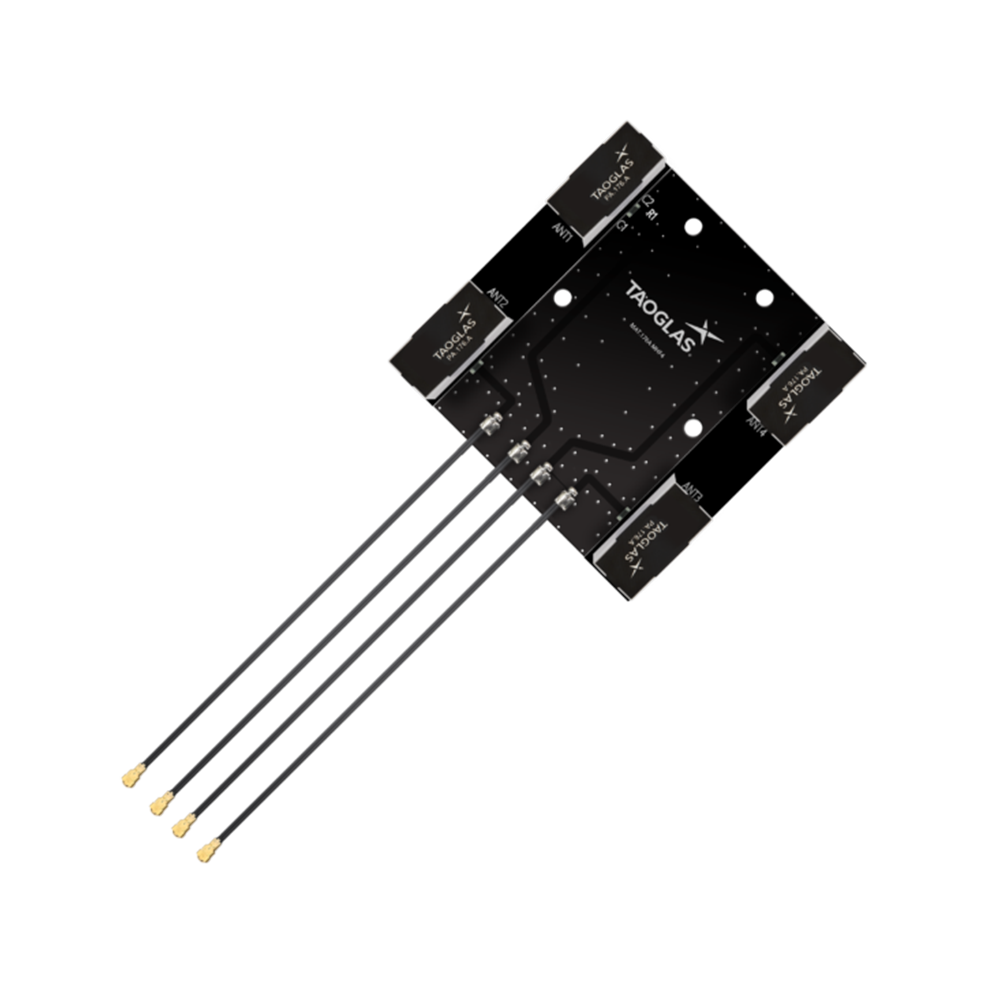

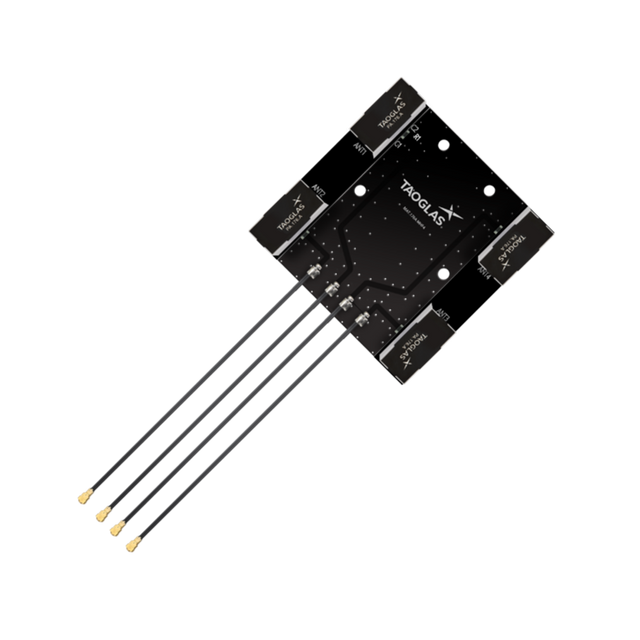

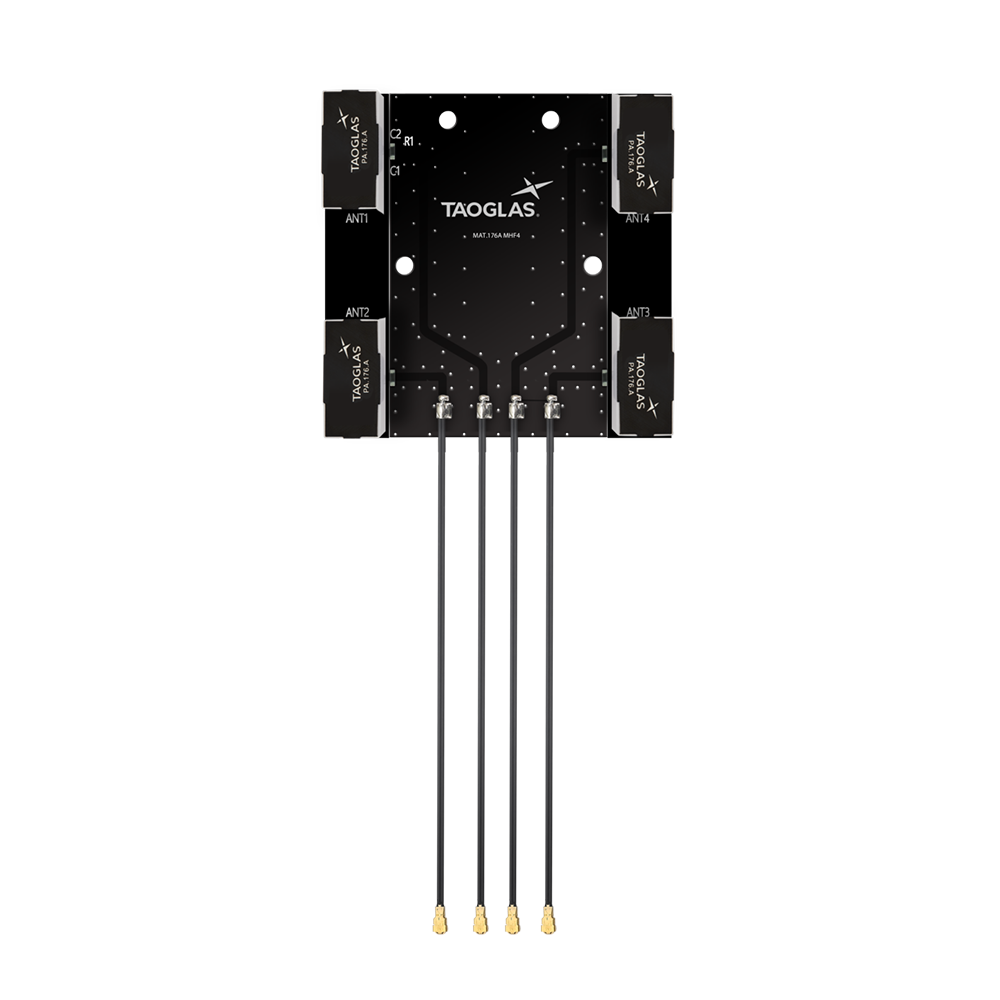

MAT.176A Antenna High-Band 4x4 MIMO 5G, 4G/LTE PCB Antenna Board for Telematic Control and On-board Diagnostic Units, First Responder and Public Safety Devices, UAV’s and Robotics, Media and Smart Home

This embedded cellular antenna board is designed for high-band 5G/4G devices that need compact multi-antenna performance in a small footprint. It integrates four antennas on a single PCB to support 4x4 MIMO operation and delivers strong efficiency and gain across a wide high-band cellular range.

Ideal for integration alongside next-generation 5G MIMO modules and routers where board space is limited and consistent high-band performance is required.

• High-band cellular coverage: Designed to operate across 1.7–6GHz for wide high-band support
• 4x4 MIMO on one board: Four integrated antennas for MIMO-capable devices
• Compact embedded format: PCB-style antenna board for product integration
• Target use cases: Telematic Control and On-board Diagnostic Units, First Responder and Public Safety Devices, UAV’s and Robotics, Media and Smart Home

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: Internal
Mounting: PCB Mount
Type: Combination
Dimensions: 60 x 60mm Manufactured in our IATF16949 Certified Facility Cables: 100mm of 1.13
Height: 4mm
Weight: 50g

5G/4G High-Band Cellular (4x4 MIMO)

Frequency: 1710MHz - 5925MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Polarization: Linear
Impedance: 50 Ω
VSWR: <2
Gain (Max): 5.24
Connector Type: I-PEX MHF4L
Cable Length: 10cm
Cable Type: 1.13 Coax
