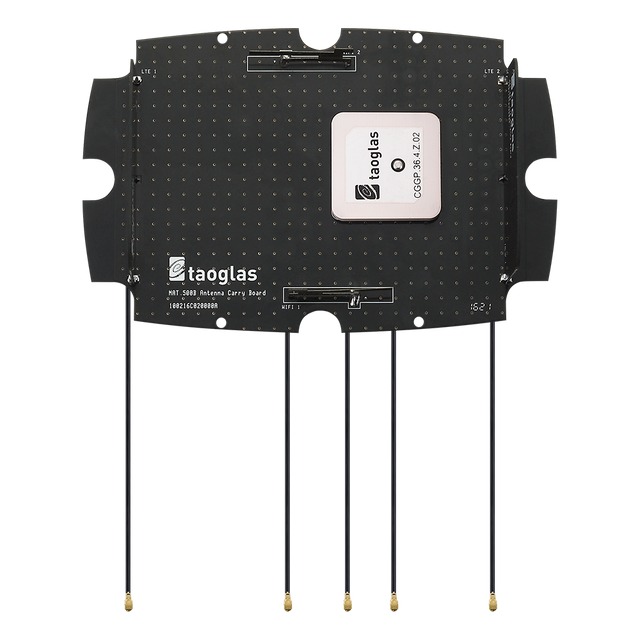

MAT.500.B Antenna MIMO 4G/LTE, GNSS, Wi-Fi embedded PCB 5-in-1 for fleet management, asset tracking, security/surveillance, First Responder and Emergency Services

MAT.500.B is an embedded antenna board that integrates LTE MIMO, Wi-Fi MIMO, and GPS/GLONASS reception into a single low-profile PCB solution. It can be used as a reference design or as an embedded antenna platform for telematics and high-throughput wireless devices where isolation and multi-radio performance are critical.

• 5-in-1 integrated design: LTE MIMO + Wi-Fi MIMO + GPS/GLONASS on one board
• Optimized for telematics: built for reliable connectivity and positioning in demanding deployments
• MIMO performance focus: designed to support high-speed uplink/downlink and improved throughput

Connections

2x 4G/3G/2G LTE MIMO 698-960/1710-2170/2490-2690MHz
2x Wi-Fi MIMO 2.4/5.8GHz
1x GPS-GLONASS

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: PCB Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Impedance: 509 9
Dimensions: 157.32mm*103.19mm*30mm
Weight: 66g
Storage Temperature: -40 C to 90 C
Humidity: Non-condensing 65 C 95% RH
RoHS: Yes

4G/3G/2G LTE (MIMO)

Frequency: 698~803, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690 MHz
Polarization: Linear
Impedance: 509 9
VSWR: < 4
Envelope Correlation Coefficient (ECC): < 0.33
Connector Type: I-PEX (IPEX) standard (MHF I)
Cable Type: 1.37 Micro Coax.
Cable Length: 7.8cm (MIMO_1), 13.3cm (MIMO_2) (standard; customizable)

Wi-Fi (MIMO)

Frequency: 2400~2500, 4900~5850 MHz
Polarization: Linear
Impedance: 509 9
VSWR: < 2.2
Connector Type: I-PEX (IPEX) standard (MHF I)
Cable Type: 1.37 Micro Coax.
Cable Length: 6.8cm (MIMO_1), 11.8cm (MIMO_2) (standard; customizable)

GPS/GLONASS

Frequency: GPS:1575.4211.023 MHz; GLONASS:160215 MHz
Polarization: RHCP
Impedance: 509 9
VSWR: 2:1 Max
Axial Ratio: GPS:< 5.1; GLONASS:< 6.3
Connector Type: I-PEX (IPEX) standard (MHF I)
Cable Type: 1.37 Micro Coax.
Cable Length: 6.8cm (standard; customizable)
