Description

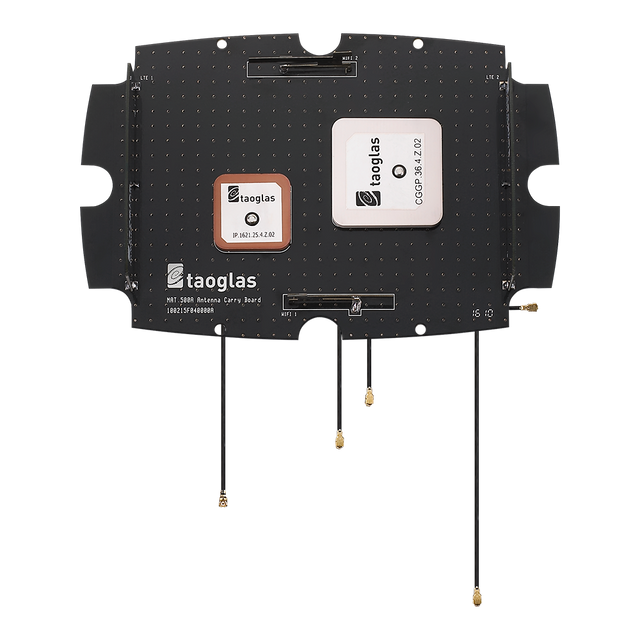

An embedded 6-in-1 antenna board designed for telematics devices, combining cellular MIMO, Wi‑Fi MIMO, GNSS (GPS/GLONASS), and L-band satellite capability in a single integrated PCB solution.
Suitable for high-performance data connectivity and resilient positioning/communications in demanding telematics and tracking deployments.
Connections
2x LTE MIMO 698-960/1710-2170/2490-2690/3300-3600MHz
2x Wi-Fi MIMO 2.4/5.8GHz
1x GPS-GLONASS Antenna
1x Satellite L Band 1621MHz Antenna
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: PCB Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Impedance: 50Ω
Dimensions: 157.32*103.19*30mm
Weight: 66g
RoHS: Yes
LTE MIMO
Frequency: 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz
Standards: 4G/3G/2G
Polarization: Linear
Impedance: 50Ω
VSWR: < 4
Envelope Correlation Coefficient (ECC): < 0.33
Connector Type: I-PEX (IPEX standard, fully customizable)
Cable Type: Ø1.37 Micro Coax.
Cable Length: 78mm (MIMO_1), 133mm (MIMO_2) standard, fully customizable
Wi-Fi MIMO
Frequency: 2400~2500MHz, 4900~5850MHz
Standards: Wi-Fi
Polarization: Linear
Impedance: 50Ω
VSWR: < 2.2
Connector Type: I-PEX (IPEX standard, fully customizable)
Cable Type: Ø1.37 Micro Coax.
Cable Length: 68mm (MIMO_1), 118mm (MIMO_2) standard, fully customizable
GPS-GLONASS
Frequency: GPS:1575.42±1.023 MHz; GLONASS:1602±5 MHz
Standards: GPS/GLONASS
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1 Max
Axial Ratio: GPS:< 5.1; GLONASS:< 6.3
Average Gain: GPS: -1.2dBi; GLONASS: -1.6dBi
Peak Gain: GPS: 5.47dBi; GLONASS: 4.9dBi
Passive Antenna Efficiency: GPS: 75%; GLONASS: 68%
Connector Type: I-PEX (IPEX standard, fully customizable)
Cable Type: Ø1.37 Micro Coax.
Cable Length: 68mm standard, fully customizable
Satellite L-Band 1621MHz
Frequency: Satellite L-Band:1621±5 MHz
Standards: Iridium
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1 Max
Axial Ratio: <7.3
Average Gain: -1.52dBi
Peak Gain: 5.11dBi
Passive Antenna Efficiency: 70%
Connector Type: I-PEX (IPEX standard, fully customizable)
Cable Type: Ø1.37 Micro Coax.
Cable Length: 83mm standard, fully customizable
