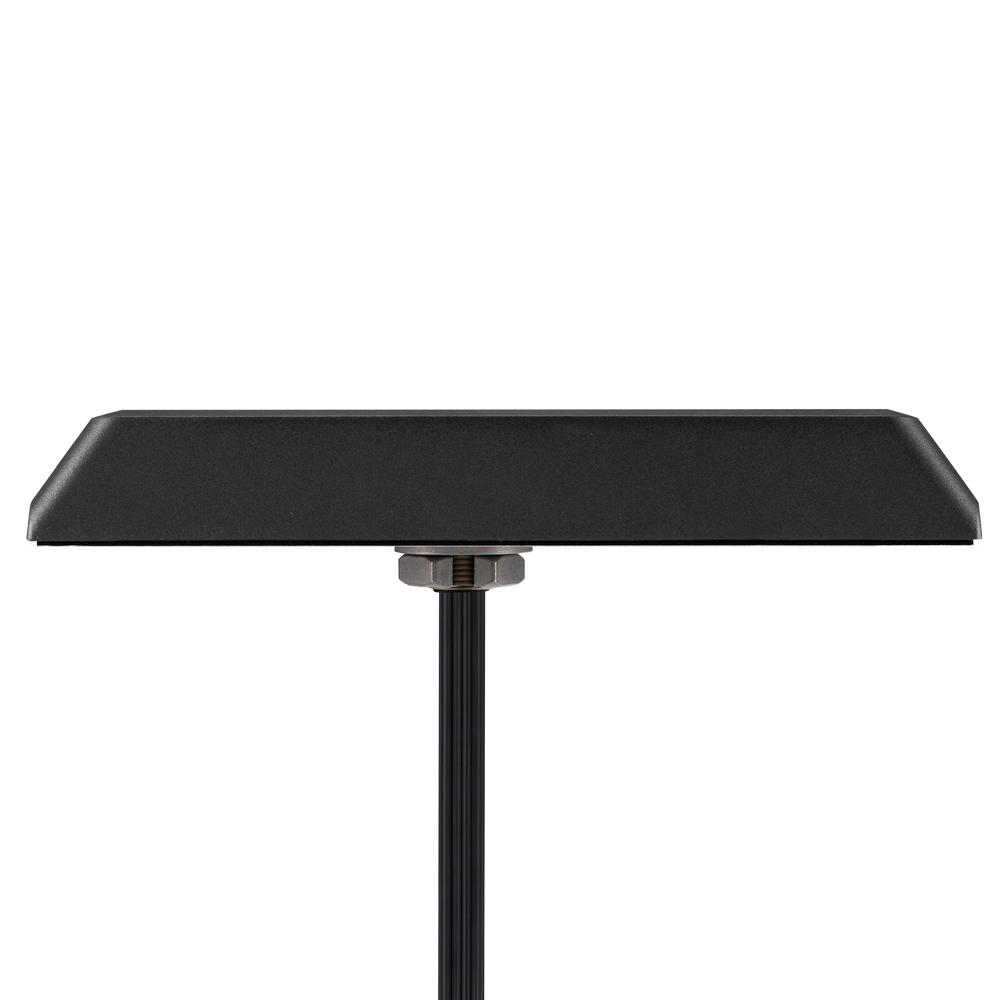

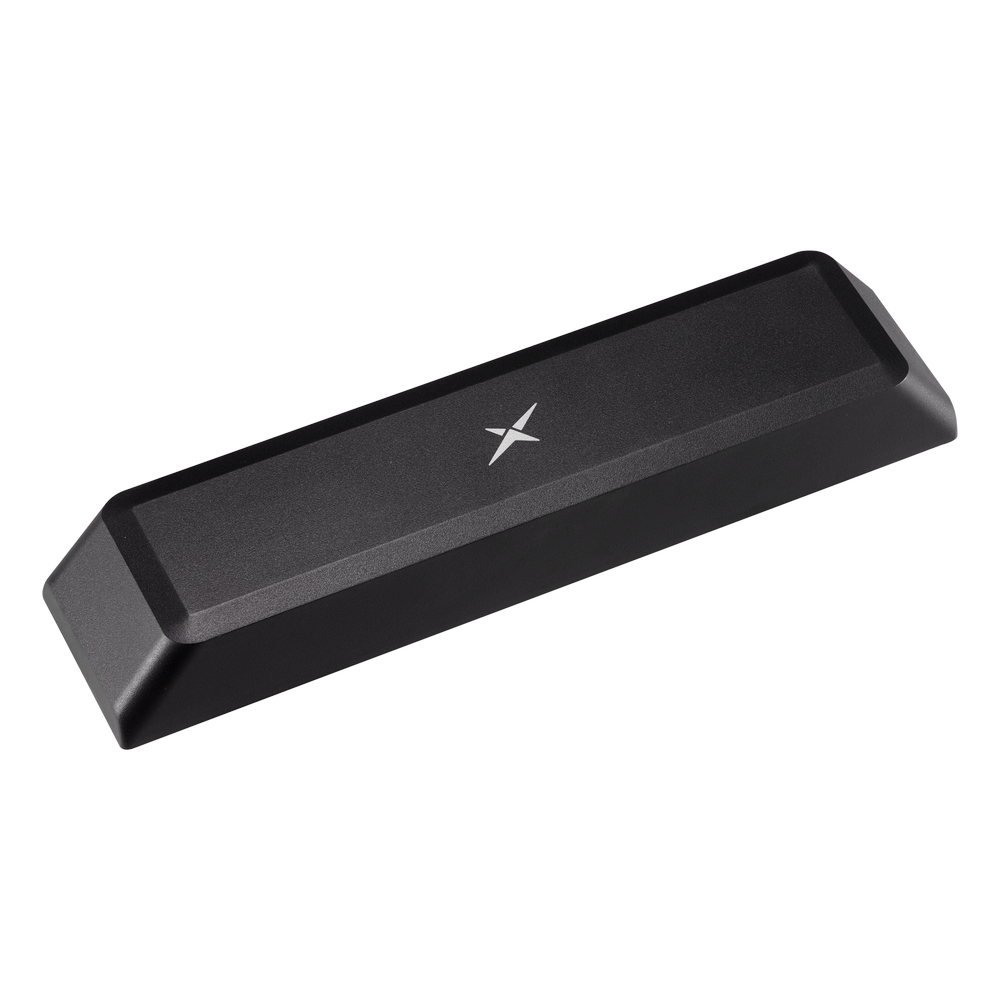

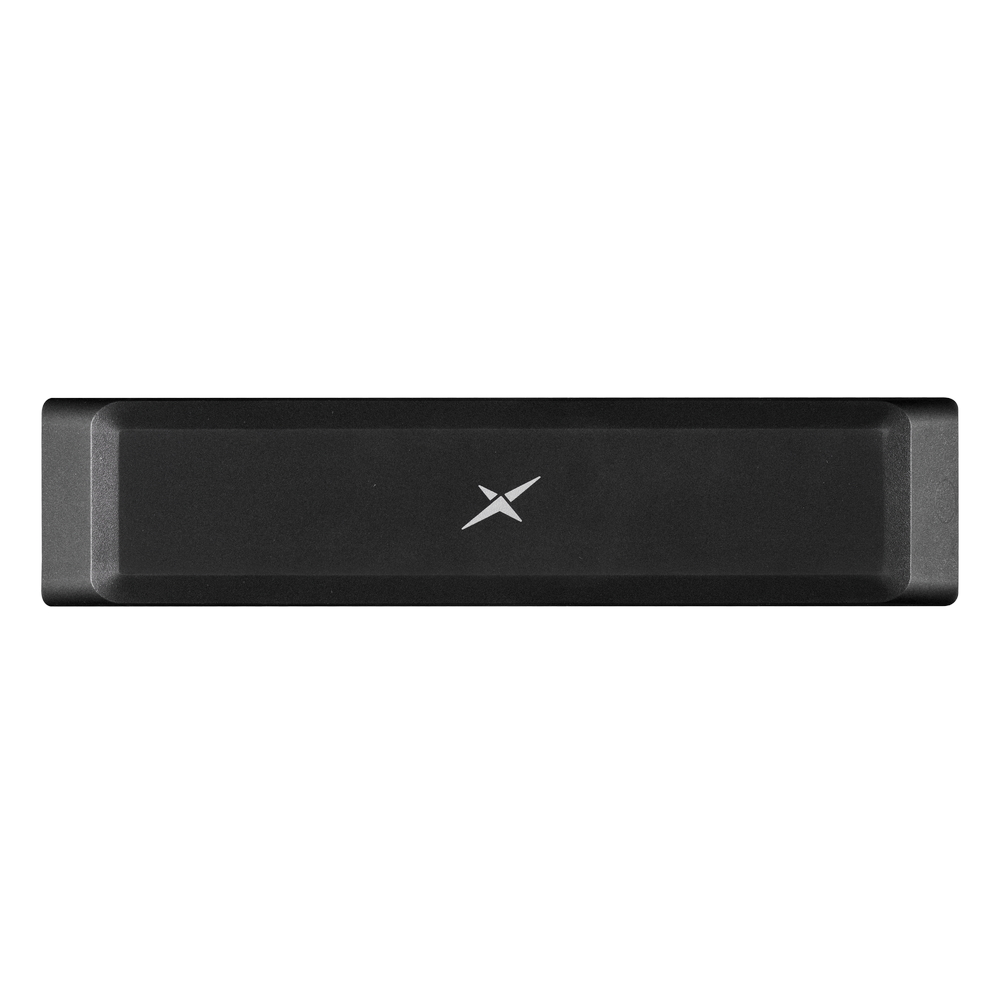

MAX1012.A.001 Antenna External MIMO 5G, GNSS, Wi-Fi 6E/7 screw mount Raptor Max 12-in-1 for Fleet Management, Asset Tracking, Smart Cities, Public Safety

Raptor Max is a low-profile, vehicle roof-mount combination antenna designed to simplify multi-network deployments by integrating cellular, Wi-Fi, and GNSS into a single rugged enclosure. It supports up to 12 integrated antenna connections to reduce installation time, save mounting space, and enable simultaneous multi-network operation.

• 12-in-1 integration: combines cellular MIMO, Wi-Fi MIMO, and dual-band GNSS coverage in one housing
• Wide coverage: supports global cellular coverage alongside Wi-Fi 6/7 bands and dual-band GNSS (L1/L5)
• Rugged design: low-profile, waterproof enclosure suited to demanding vehicle and outdoor environments

Typical use cases include fleet/asset tracking, connected vehicle systems, smart city infrastructure, and public safety deployments.

Connections

8x 5G/4G MIMO 617~6000MHz
3x Wi-Fi MIMO 2.4/5.8/7.125 GHz
1x Multiband L1/L5 GNSS

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Frequency Range: 600MHz - 7125MHz
VSWR: 2:1
Polarization: Linear
Dimensions: 330 x 75.5 x 45.2mm RoHS & Reach Compliant
Weight: 972g

5G/4G MIMO

Frequency: 617~6000MHz
Standards: 5GNR/4G
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: TGC-1.5DS
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W

Wi-Fi MIMO

Frequency: 2.4/5.8/7.125 GHz
Standards: Wi-Fi 6/7
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: TGC-1.5DS
Impedance: 50Ω
Polarization: Linear

GNSS (Active) Dual-Band L1/L5

Frequency: 1176.45 MHz, 1561 MHz, 1575.42 MHz
Standards: GPS, Galileo, BeiDou, QZSS, IRNSS, SBAS
VSWR (max.): 3:1
Polarization: Linear
Impedance: 50Ω
LNA Gain (dB): 29.7 (1176.45 MHz), 28.8 (1561 MHz), 28.1 (1575.42 MHz), 28.6 (1602 MHz)
Noise Figure (dB): 2.9 (1176.45 MHz), 2.8 (1561 MHz), 2.9 (1575.42 MHz), 2.3 (1602 MHz)
Input Voltage (V): + 1.8 to 5.5
Current Consumption (mA): 5 ± 2
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174

Download Datasheet PDF
