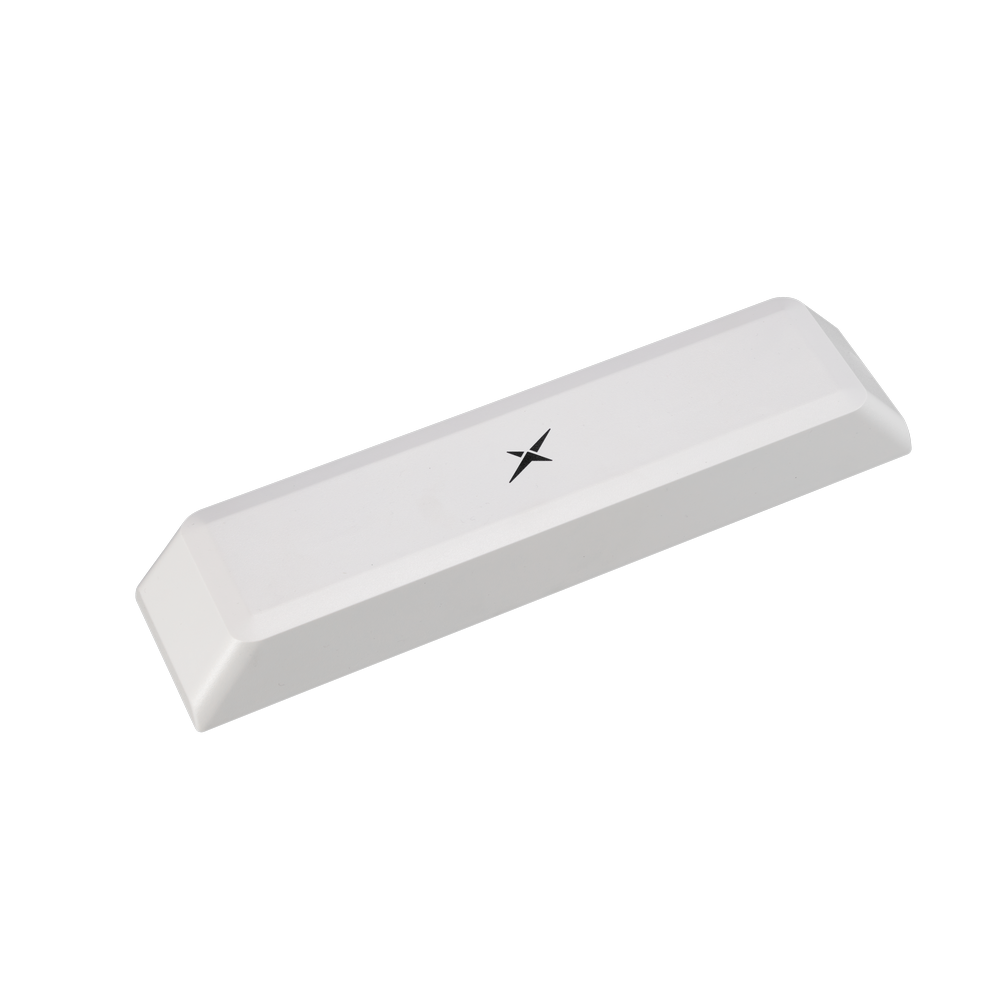

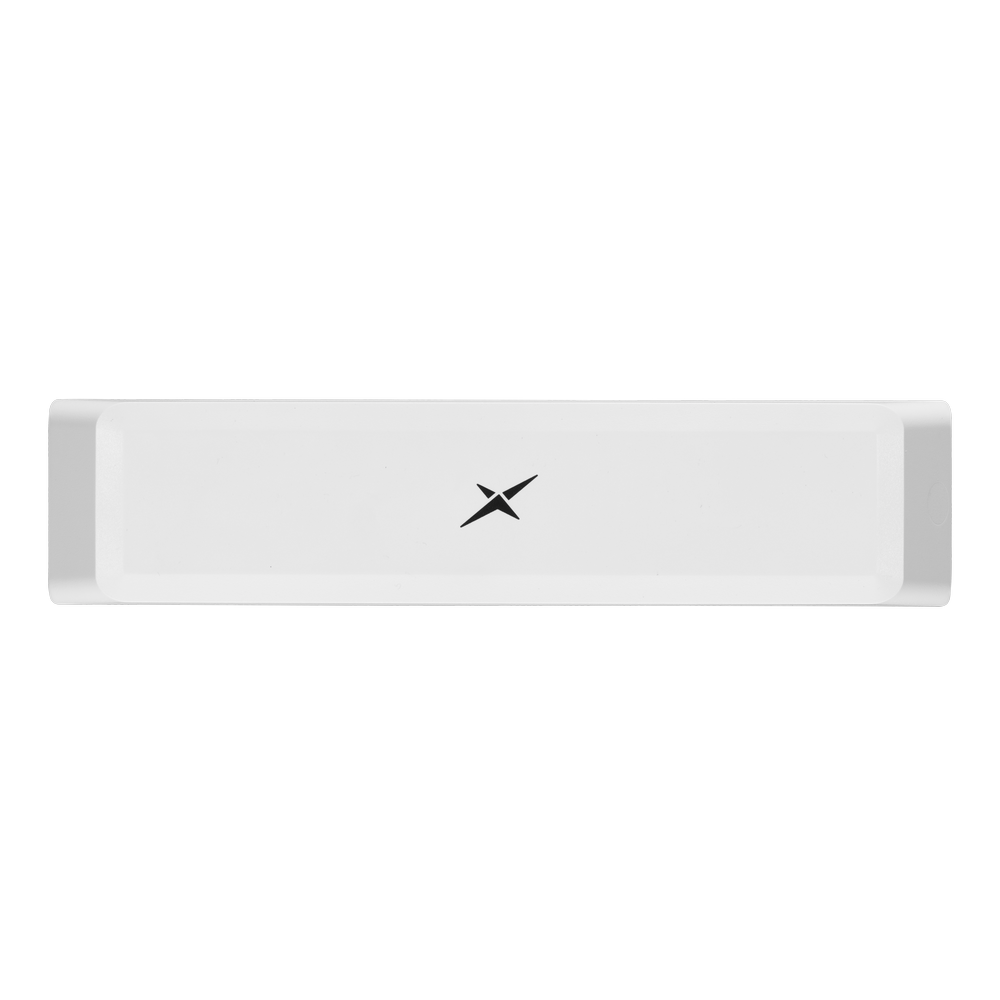

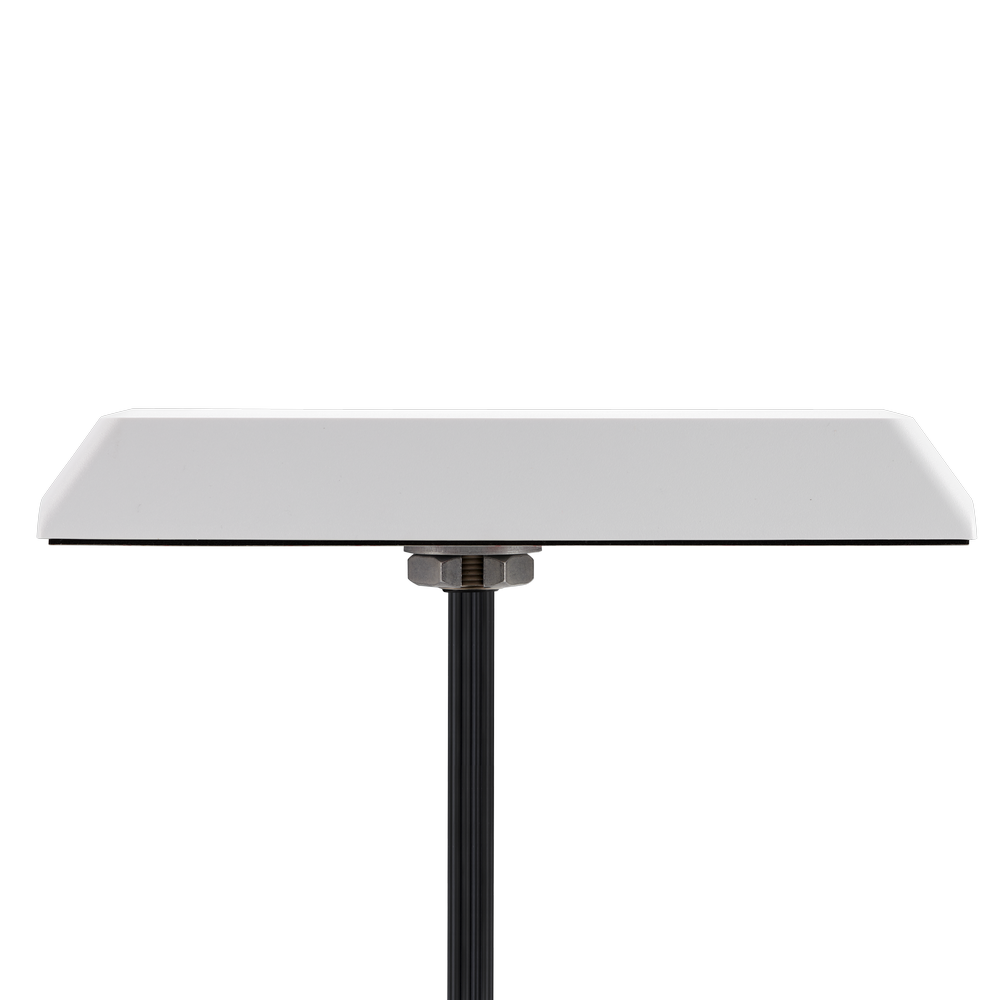

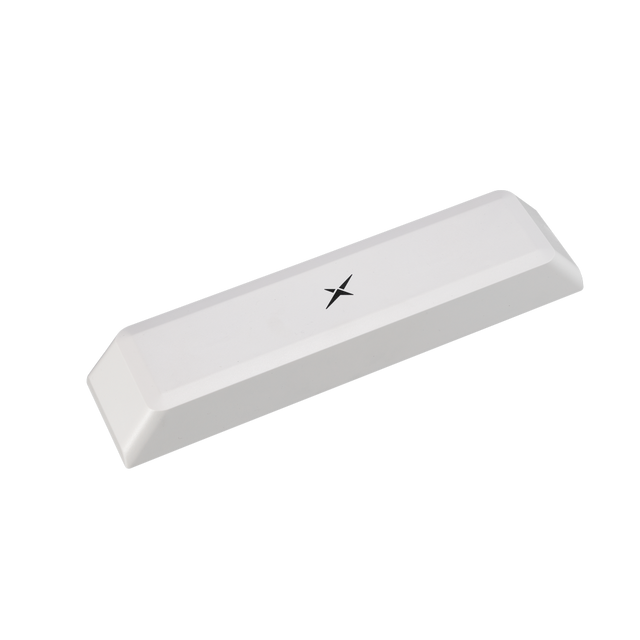

MAX1012.W.001 Antenna External MIMO IP67 5G, GNSS, Wi-Fi 6E/7 screw mount Raptor Max 12-in-1 for Connected Vehicles, Smart Cities, Industrial IoT, Public Safety

The Raptor Max series is a low-profile, rugged vehicle roof-mount combination antenna designed to consolidate multiple wireless services into a single enclosure to simplify installations and reduce roof clutter. This configuration supports high-performance multiband cellular, tri-band Wi-Fi for Wi-Fi 6/7 coverage, and dual-band GNSS (L1/L5) to help achieve improved positioning accuracy versus single-band GNSS solutions.

• Consolidates connectivity: Combines cellular, Wi-Fi, and GNSS into one compact antenna for cleaner installations.
• Built for harsh environments: IP67-rated enclosure with robust construction for outdoor/vehicle deployments.
• Designed for modern fleets: Supports multi-network operation for connected vehicle and infrastructure use cases.

Connections

8x 5G/4G MIMO 617-6000MHz
3x Wi-Fi MIMO 2.4/5.8/7.125GHz
1x Multiband L1/L5 GNSS Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 330 x 75.5 x 45.2mm RoHS & Reach Compliant
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Weight: 972g

5G/4G MIMO (8x)

Frequency: 617-6000MHz
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
Cable Type: TGC-1.5DS
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 300mm

Wi-Fi MIMO (3x)

Frequency: 2.4/5.8/7.125GHz
Cable Type: TGC-1.5DS
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 300mm

GNSS L1/L5 (1x, Active)

Frequency: 1176.45MHz, 1561MHz, 1575.42MHz
Impedance: 50Ω
Polarization: Linear
VSWR (Max): 3:1
LNA Gain (dB): 29.7 (1176.45MHz), 28.8 (1561MHz), 28.1 (1575.42MHz), 28.6 (1602MHz)
LNA Input Voltage (V): +1.8 to 5.5
Current Consumption (mA): 5 ± 2
Cable Type: RG-174
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 300mm

Download Datasheet PDF
