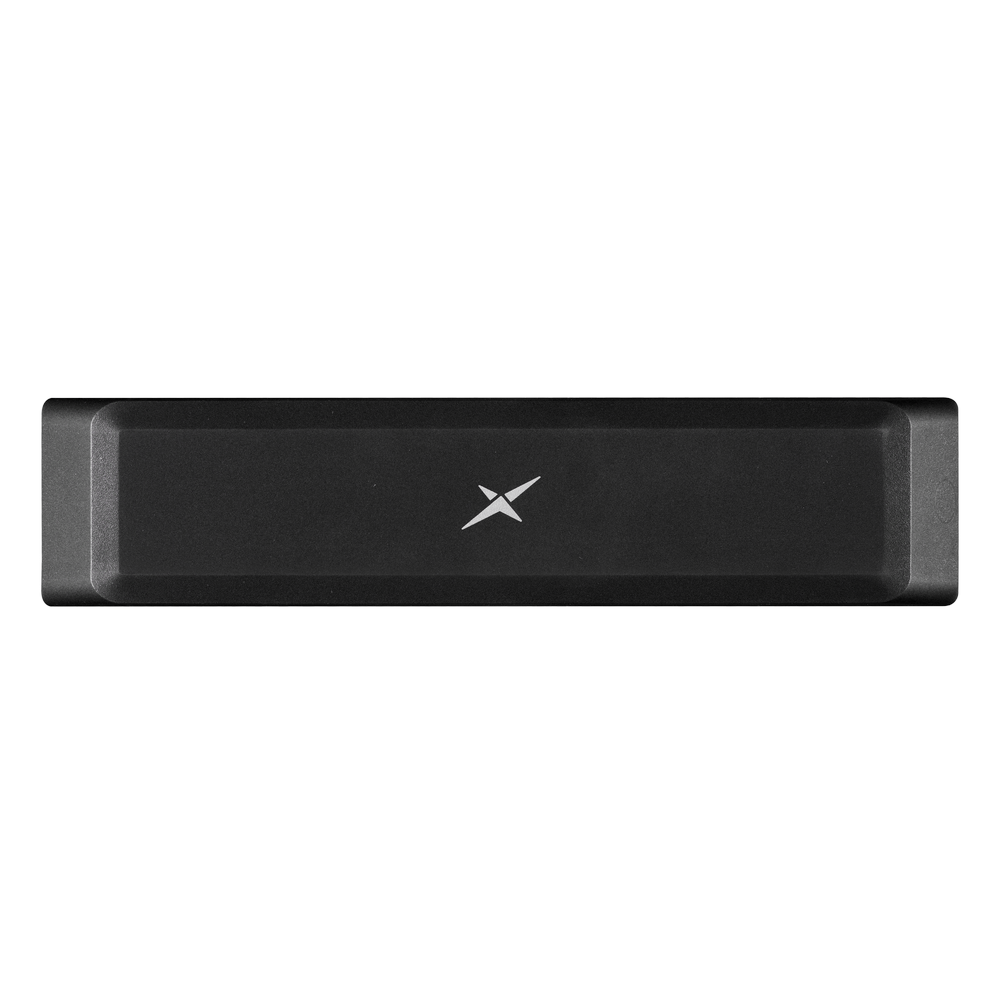

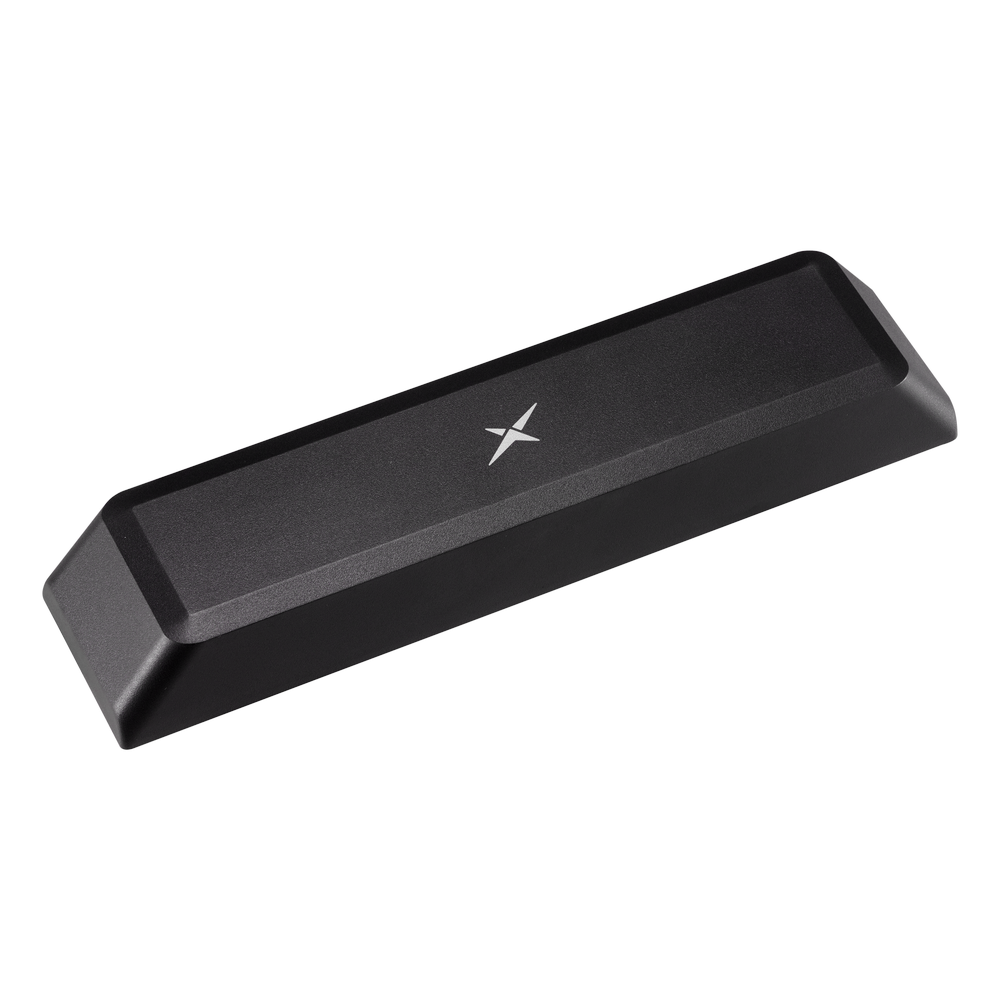

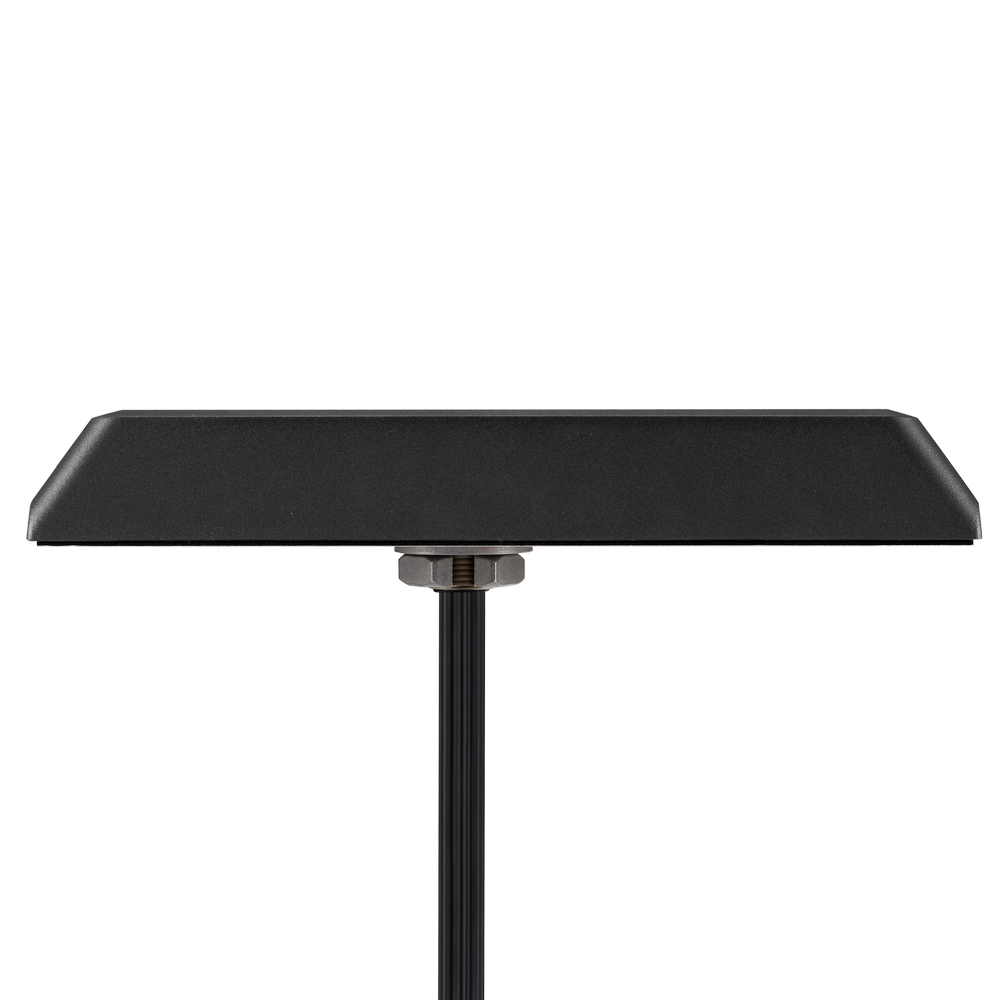

MAX1015.A.001 Antenna Low-Profile High-Performance 15-in-1 5G, GNSS, Wi-Fi 6E/7 screw mount IP67 for Connected Vehicles, Fleet Management and Asset Tracking, Smart Cities, Industrial IoT

This low-profile, permanent-mount combination antenna consolidates cellular, Wi-Fi, and GNSS into a single roof-mount solution to simplify multi-antenna vehicle installs. It supports multi-network connectivity for connected fleets and smart infrastructure while helping reduce installation time, cost, and rooftop clutter.

• Consolidated connectivity: cellular + Wi-Fi + dual-band GNSS in one enclosure
• Designed for vehicles: roof-mount form factor for multi-antenna replacement
• Rugged enclosure: IP67-rated housing for harsh outdoor environments

Typical use cases include: Connected Vehicles – Fleet Management and Asset Tracking, Smart Cities – Public Safety Systems and Infrastructure, Industrial IoT – Monitoring and Asset Tracking, Public Safety – First Responder Vehicles, Military and Defense – Command and Control Systems.

Connections

8x 5G/4G MIMO 617-6000MHz
6x Wi-Fi MIMO 2.4/5.8/7.125GHz
1x Multiband L1/L5 GNSS Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50 Ω
VSWR: 2:1
Dimensions: 330 x 75.5 x 45.2mm RoHS & Reach Compliant
Weight: 972g

5G/4G MIMO (8x)

Frequency: 617-6000MHz
Standards: 5G/4G
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
Cable Type: TGC-1.5DS
Cable Length: 100cm
Connector Type: SMA(M)

Wi-Fi MIMO (6x)

Frequency: 2.4/5.8/7.125GHz
Standards: Wi-Fi 6E/7
Cable Type: TGC-1.5DS
Cable Length: 100cm
Connector Type: RP-SMA(M)

GNSS L1/L5 (1x, Active)

Frequency: 1176.45, 1561, 1575.42, 1602 MHz
GNSS Bands: L1/L5
Impedance: 50 Ω
Polarization: Linear
VSWR (max.): 3:1
LNA Gain (dB): 28.1-29.7
Noise Figure (dB): 2.3-2.9
Input Voltage (V): + 1.8 to 5.5
Current Consumption (mA): 5 ± 2
Cable Type: RG-174
Cable Length: 100cm
Connector Type: SMA(M)
