Description

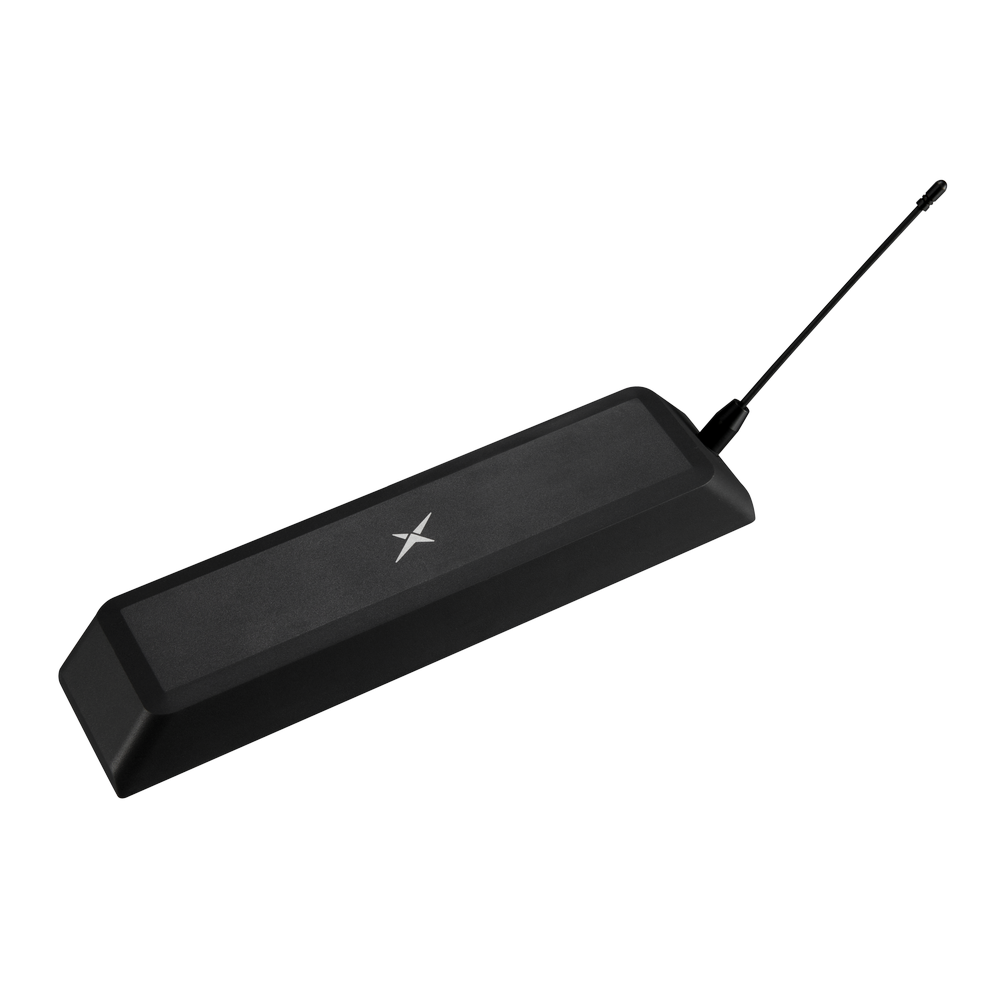

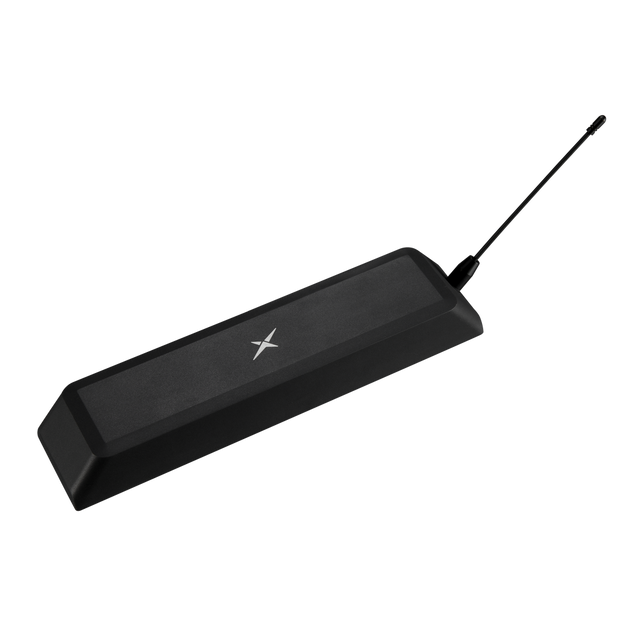

Raptor MAX (MAX1016) is a high-performance, super low-profile vehicle roof combination antenna designed to reduce the need for multiple separate antenna installations by integrating up to 16 RF connections in a single rugged enclosure.
- 16-in-1 integration: supports multiband GNSS (L1/L5), multi-port cellular MIMO, multi-port Wi-Fi MIMO, plus an LMR/TETRA whip option.
- Wide coverage: cellular coverage from 600–6000 MHz and Wi-Fi coverage across 2.4 GHz, 5.8 GHz, and 7.125 GHz (Wi-Fi 6E/7 bands).
- Improved positioning: dual-band GNSS (L1/L5) supports higher positional accuracy versus single-band GNSS.
- Rugged design: IP67-rated enclosure designed for harsh outdoor/vehicle environments.
- Interchangeable whip support: supplied with two interchangeable whips to add LMR/TETRA frequency coverage options.
Connections
8x 5G/4G MIMO 617-6000 MHz
6x Wi-Fi MIMO 2.4/5.8/7.125 GHz
1x Multiband GNSS L1/L5
1x LMR/TETRA Whip (supplied with two interchangeable whips: 380-400 MHz and 700-900 MHz)
Technical Specifications
Operating Temperature: -40 - +85°C
Antenna Technologies: MIMO, Whip
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
VSWR: 2:1
Dimensions: 330 x 75.5 x 45.2 mm RoHS & Reach Compliant
Weight: 580g
Frequency Range: 600 MHz - 7125 MHz
Polarity: RHCP, Linear
5G/4G MIMO (8x)
Frequency: 617-6000 MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
Wi-Fi MIMO (6x)
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: Wi-Fi 6E/7
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni, directional
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
GNSS (L1/L5, Active)
Frequency: 1176.45 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz
Standards: GPS, Galileo, BeiDou, QZSS, IRNSS, SBAS
Polarization: Linear
Impedance: 50Ω
VSWR (max.): 3:1
LNA Gain: 28.1-29.7 dB
Noise Figure: 2.3-2.9 dB
Input Voltage: + 1.8 to 5.5 V
Current Consumption: 5 ± 2 mA
ESD Protection (IEC61000-4-2): ± 30 kV air / ± 20Kv contact discharge
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
LMR/TETRA Whip (1x, interchangeable)
Frequency: 380-400 MHz (FW.38.M6.F), 700-900 MHz (FW.79.M6.F)
Connector Type: M6 female
Whip Options Supplied: FW.38.M6.F (Ø13 x 164 mm), FW.79.M6.F (Ø13 x 65 mm)
Whip Length: Long Whip (Wideband) – 430mm; Short Whip (LMR Only) – 65mm
