Description

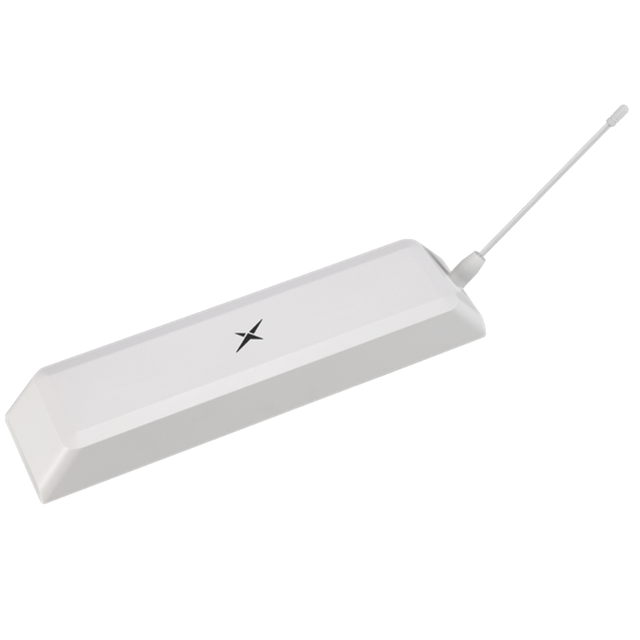

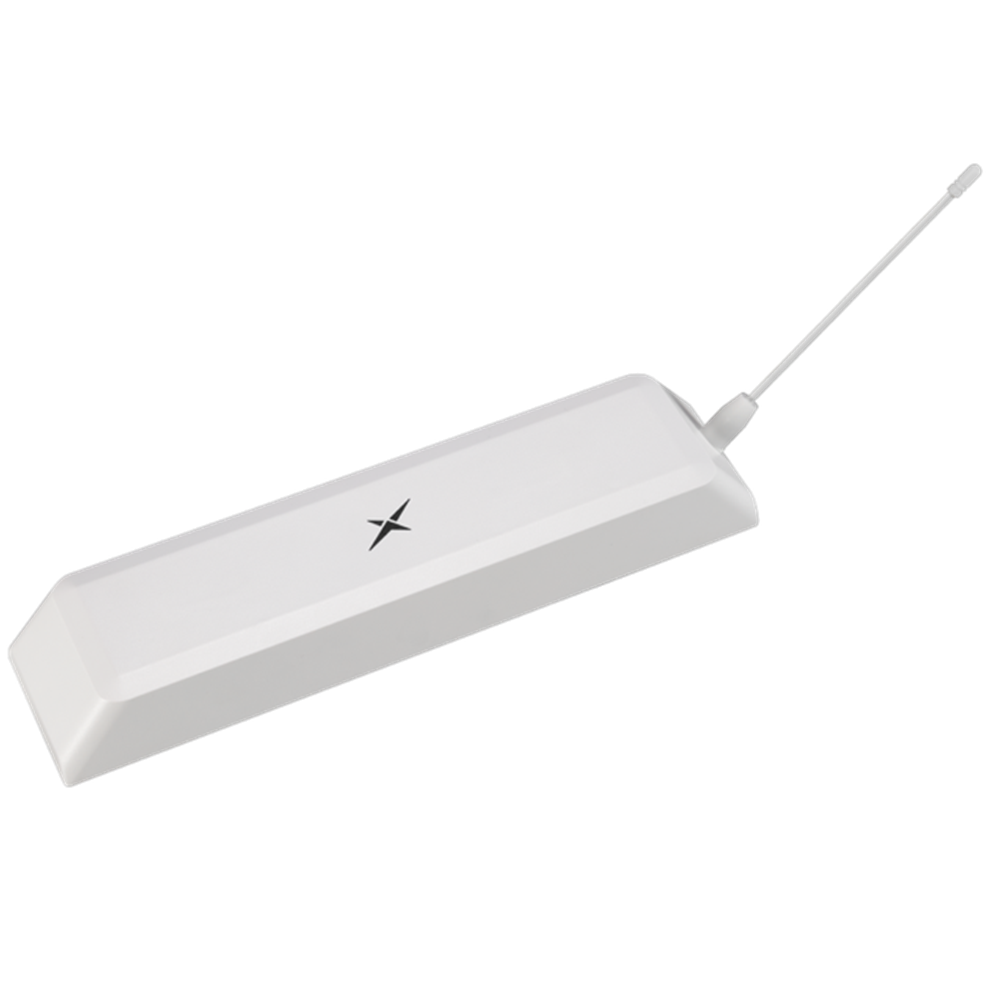

The Raptor MAX is a low-profile, permanent roof-mount combination antenna designed to simplify multi-radio vehicle installations by consolidating cellular MIMO, Wi-Fi MIMO, dual-band GNSS, and LMR/VHF/UHF coverage into a single rugged housing.
- 16-in-1 combination design: supports multi-antenna deployments for cellular, Wi-Fi, GNSS, and LMR without multiple separate antennas.
- Dual-band GNSS (L1/L5): designed to improve positional accuracy versus single-band GNSS solutions.
- Interchangeable whip support: supplied with two whips to add bands for your LMR/TETRA requirements.
- Rugged enclosure: low-profile IP67-rated housing intended for demanding outdoor/vehicle environments.
Connections
8x 5G/4G MIMO 617-6000 MHz
6x Wi-Fi MIMO 2.4/5.8/7.125 GHz
1x GNSS L1/L5 Dual-band Antenna
1x P25 VHF/UHF/LMR Whip (interchangeable): 380-400 MHz or 700-900 MHz
Technical Specifications
Operating Temperature: -40 - +85°C
Antenna Technologies: MIMO, Whip
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 330 x 75.5 x 45.2 mm RoHS and REACH Compliant
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Frequency Range: 600MHz - 7125MHz
IK Impact Rating: IK08 – 5 Joules / 1.7Kg dropped from 300mm
Material: PC
Weight: 580g
5G/4G MIMO (8x)
Frequency: 617-6000 MHz
Standards: 5GNR/4G
Impedance: 50 Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni / directional (band dependent)
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
Wi-Fi MIMO (6x)
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: Wi-Fi 6e/7 coverage on 2.4/5.8/7.125 GHz bands
Impedance: 50 Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni / directional (band dependent)
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
GNSS L1/L5 Dual-Band (1x, active)
Frequency: 1176.45 MHz, 1561 MHz, 1575.42 MHz
Standards: GNSS (L1/L5)
Impedance: 50 Ω
Polarization: Linear
VSWR (max.): 3:1
LNA Gain (dB): 29.7 (1176.45 MHz), 28.8 (1561 MHz), 28.1 (1575.42 MHz), 28.6 (1602 MHz)
Noise Figure (dB): 2.9 (1176.45 MHz), 2.8 (1561 MHz), 2.9 (1575.42 MHz), 2.3 (1602 MHz)
Input Voltage (V): + 1.8 to 5.5
Current Consumption (mA): 5 ± 2
ESD Protection: IEC61000-4-2 ± 30 kV air / ± 20Kv contact discharge
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
LMR / VHF / UHF Whip (1x)
Frequency: 380-400 MHz (FW.38.M6.F) or 700-900 MHz (FW.79.M6.F)
Standards: P25 VHF/UHF/LMR (interchangeable whip)
Supplied Whips: FW.38.M6.F (covering 380 – 400 MHz), FW.79.M6.F (covering 700 – 900 MHz)
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 32.5cm
Cable Type: RG-174, TGC-1.5DS
