Description

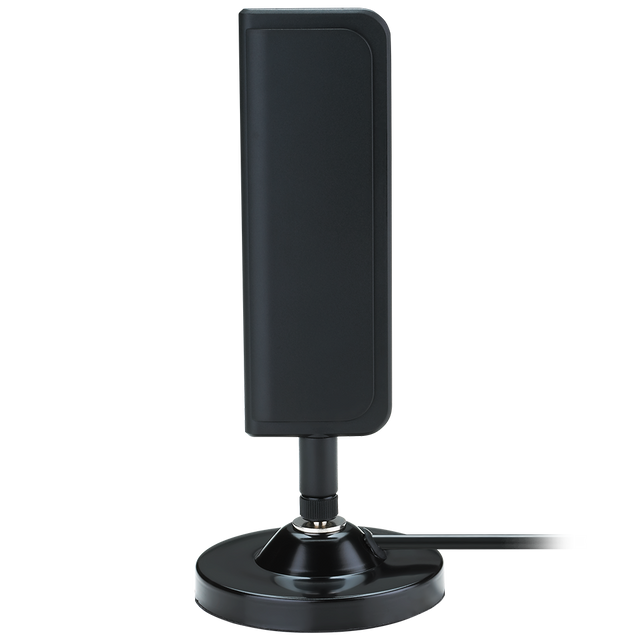

Apex Magforce is a rugged magnetic-mount wideband cellular antenna designed for high-efficiency operation with 5G/4G modules on major worldwide bands.
Its ultra wide-band dipole design supports strong, stable omni-directional performance across bands and is intended for terminal deployments where reliable throughput is required. The antenna is designed to mount easily onto metal surfaces using its strong magnetic base and is built with a durable weather-resistant housing for harsh environments.
- Wideband cellular coverage for modern 5G/4G deployments with legacy fallback support
- Magnetic mounting for fast, non-permanent installation on metal surfaces
- Omni-directional radiation pattern intended for consistent all-around coverage
- Rugged housing suitable for outdoor and industrial use
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67 (Antenna Casing), IP65 (Total part)
Dimensions: L: 196mm, Base Ø: 84mm
Weight: Antenna Main Body: 40g, Magnetic Mounted Base: 370g
5GNR/4G/3G/NB-IoT/Cat M/LTE5200/Wi-Fi5800
Frequency: 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Standards: 5GNR/4G, 4G/3G, 4G/3G/NB-IoT/Cat M, LTE5200/Wi-Fi5800
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Peak Gain (Max): 4.33 dBi
VSWR: <2
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
