Description

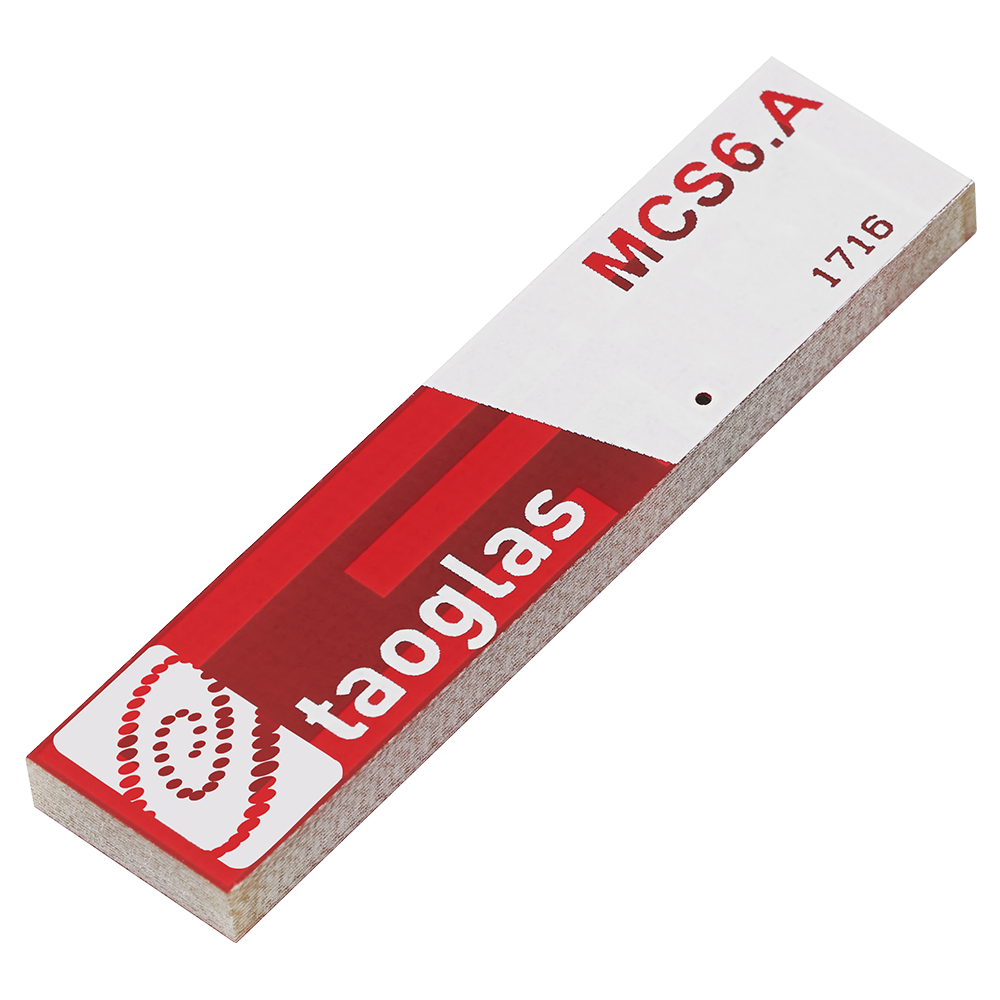

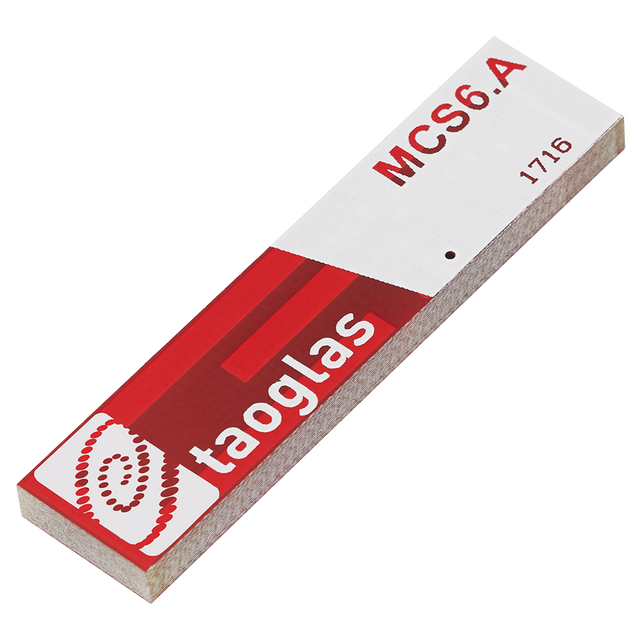

The MCS6.A is a low-profile embedded cellular antenna designed for direct SMD/SMT mounting on a device PCB. It supports NB-IoT and Cat-M1 use cases while also covering broad 4G/3G/2G cellular operation, making it well-suited for compact connected devices.
- Embedded SMD/SMT form factor: Designed for pick-and-place assembly and reflow soldering onto the PCB edge.
- LPWA-ready: Supports NB-IoT and Cat-M1 to help enable low-power IoT and M2M deployments.
- Integration-friendly: Can be tuned for the device environment without requiring new tooling.
- Use cases: Automotive, smart metering, medical, and smart city devices, including NTN (Non-Terrestrial Network) deployments.
Installation / Environmental
The following is an example on how to integrate the MCS6.A into a design. This antenna has 4 pins, where one pin is used for the RF Feed. It is recommended using a minimum of 107x45mm ground plane (PCB) to ensure optimal performance.
Top view of PCB reference design
Please find the Integration files in Altium, 2D formats and the 3D model for the MCS6.A on the MCS6.A product page.
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 42mm x 10mm x 3mm
Weight: 2.50g
Cellular (NB-IoT / CAT M1 / 4G/3G/2G)
Frequency: 698-960MHz / 1710-2690MHz
Standards: GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE / NB-IoT / CAT M1
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Max. Input Power: 5W
Radiation Pattern: Omni directional
Cellular Bands: 5, 8, 20, 28, 2, 3, 4, 25, 66, 1, 40
Average Gain (dB): -1.79 (700-900), -1.14 (1700-2100), -1.77 (2300-2600)
Efficiency (%): 66.2 (700-900), 76.9 (1700-2100), 66.5 (2300-2600)
Peak Gain (dBi): 2.55 (700-900), 4.76 (1700-2100), 4.64 (2300-2600)
Gain (Max): 3.11
NTN Recommendation: Band 255 (Global), Band 256 (Europe), Band 23 (North America)
Test Ground Plane: 107 x 45mm
