Description

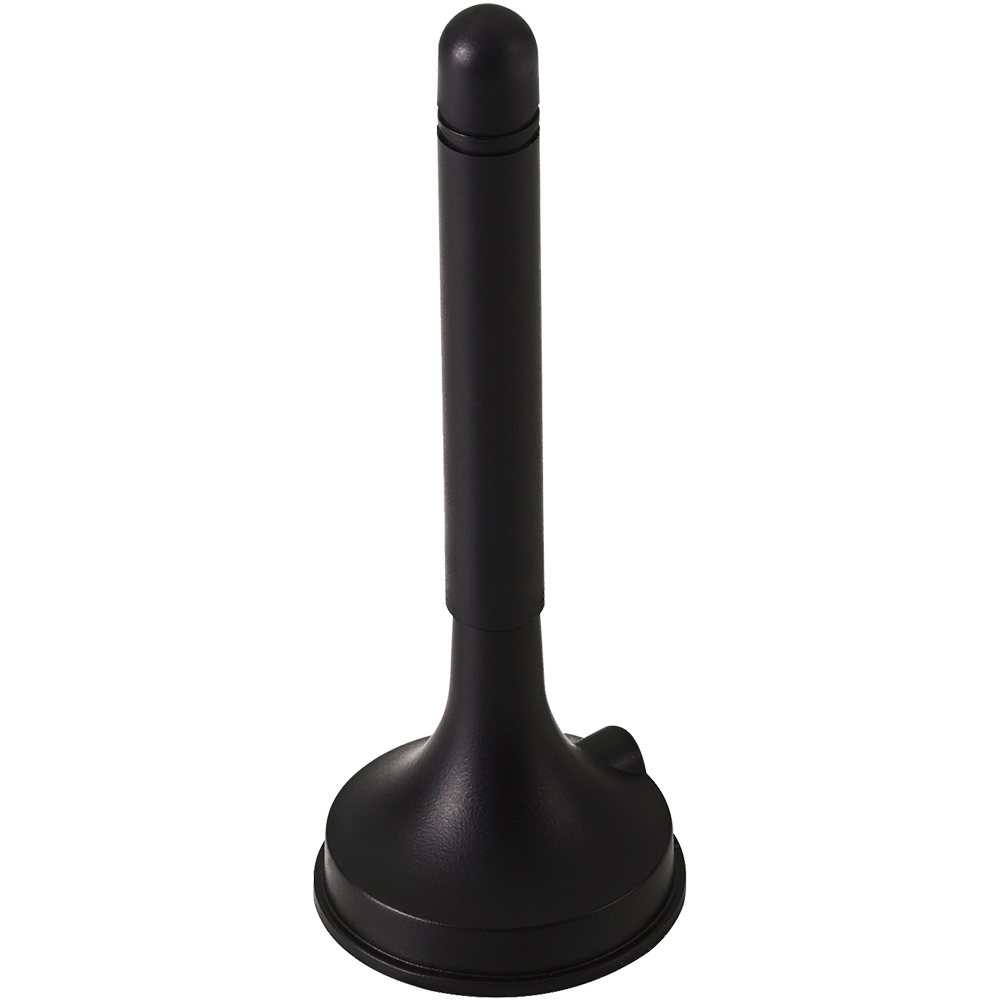

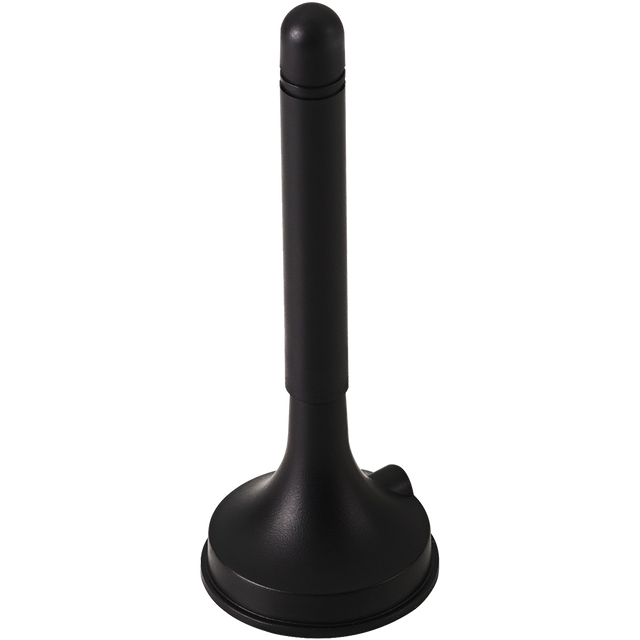

Mini magnetic-mount cellular antenna designed to deliver stable omnidirectional performance for LPWA IoT deployments and broad cellular coverage.
Built for NB-IoT and Cat-M use cases while also supporting common global cellular networks, this antenna is well-suited for devices that may be deployed across different regions without needing an antenna change.
- Supports LPWA IoT connectivity (NB-IoT / Cat-M)
- Designed for magnetic mounting on a suitable metal ground plane
- Stable omnidirectional performance for consistent connectivity
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 100cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40 C to +85 C
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Magnetic Mount
Type: Single
Impedance: 50a9
Polarization: Linear
VSWR: <2
Gain (Max): 3 dBi
Dimensions: 7.8 x 30 x 82.8 mm
Weight: 32 g
Cellular (NB-IoT / Cat-M)
Frequency: 698-960MHz / 1710-2700MHz
Standards: NB-IoT / CAT M1, 4G/3G/2G
Efficiency (Typical): 30%+
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174
