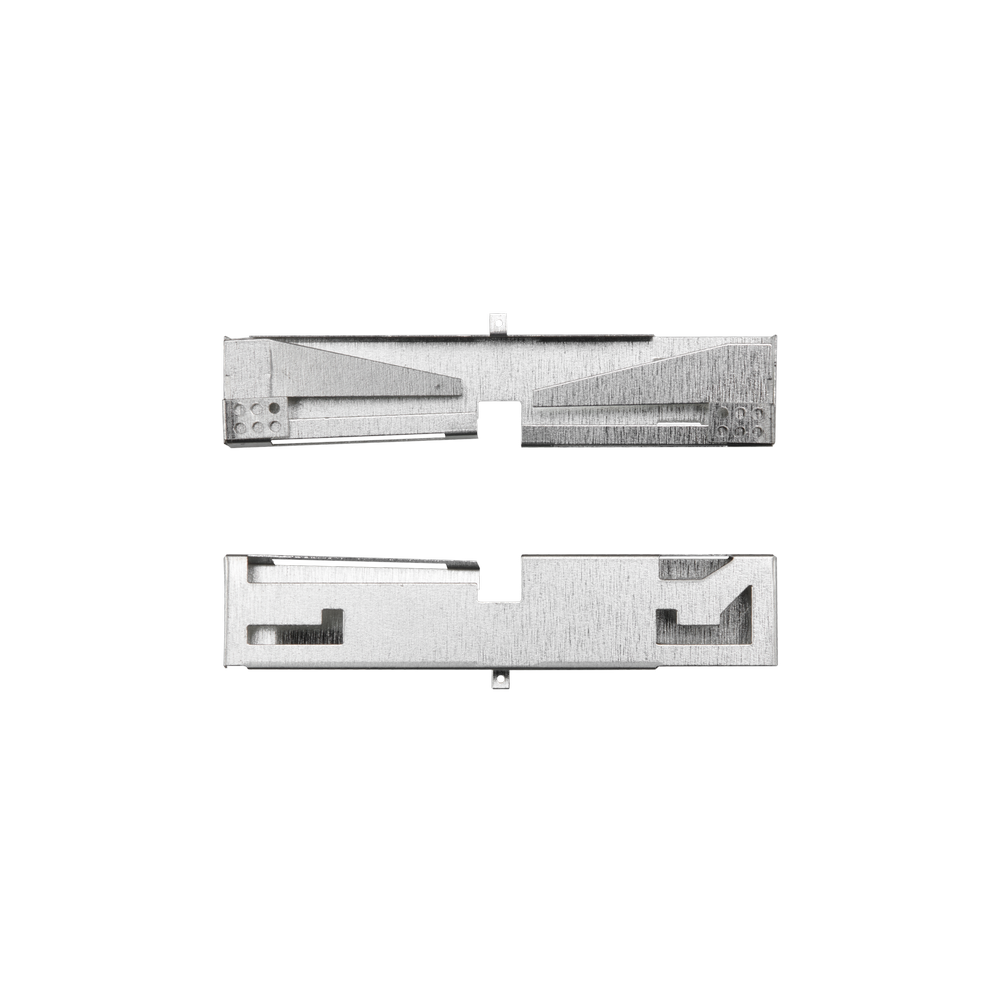

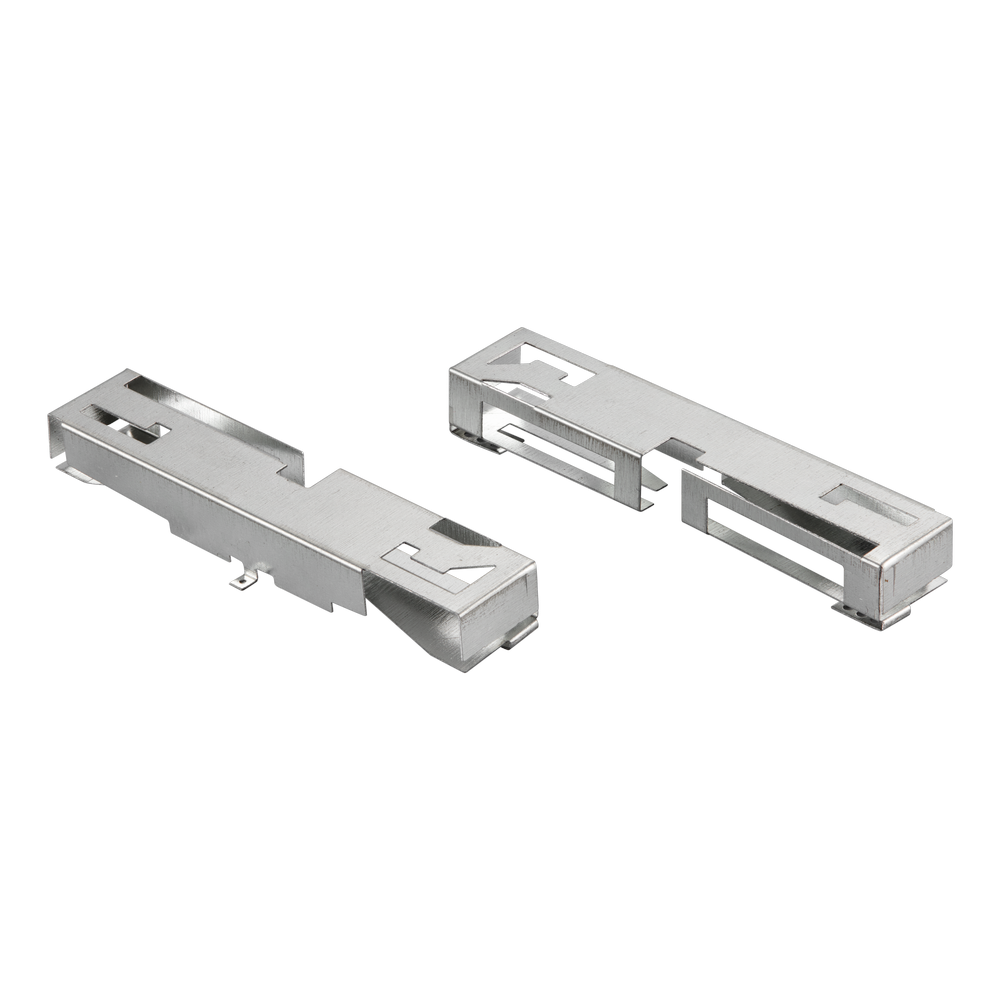

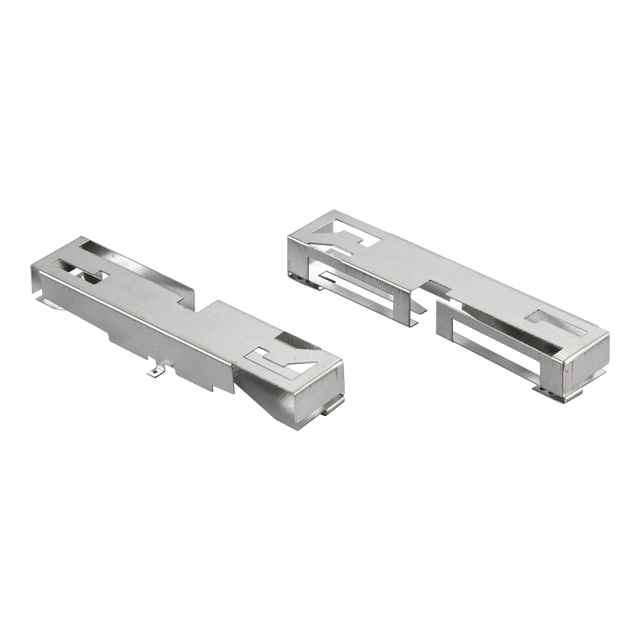

MPA.66.A Antenna Wideband 5G, 4G/LTE, Wi-Fi 6E/7, NB-IoT, Cat-M SMD/SMT on-board for Consumer Electronics, Smart Cities and Infrastructure, Automotive and Transportation, Healthcare and Medical Devices

Wideband on-board antenna for compact embedded devices, designed to support ultra-wideband operation across cellular and Wi-Fi bands in a durable stamped-metal form factor.

• Wideband coverage: supports modern 5G NR and LTE bands plus Wi-Fi operation up to 6 GHz.
• Compact SMD footprint: designed for integration into space-constrained product designs.
• Stamped-metal PIFA design: robust construction for durable device integration.
• Use cases: Consumer Electronics, Smart Cities and Infrastructure, Automotive and Transportation, Healthcare and Medical Devices, Public Safety and Emergency Services, Point-of-Sale (POS) and Kiosks.

Installation / Environmental

The following is an example on how to integrate the MPA.66.A into a design. This antenna has 3 pins, where one pin is used for the RF Feed. Recommended using a minimum of 50x125mm ground plane (PCB) to ensure optimal performance.
Top view of PCB

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: PIFA, Monopole
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 50.6mm x 10.6mm x 7.3mm
Weight: 1.76g

5GNR/4G/LTE/Wi-Fi/NB-IoT (SMD RF Feed)

Frequency: 600-7125 MHz (617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925, 5925-7125 MHz)
Standards: 5GNR/4G/LTE/3G/NB-IoT/Cat M/Wi-Fi
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni directional
Max. Input Power: 10W
Peak Gain (Max): 6.73 dBi

Download Datasheet PDF
