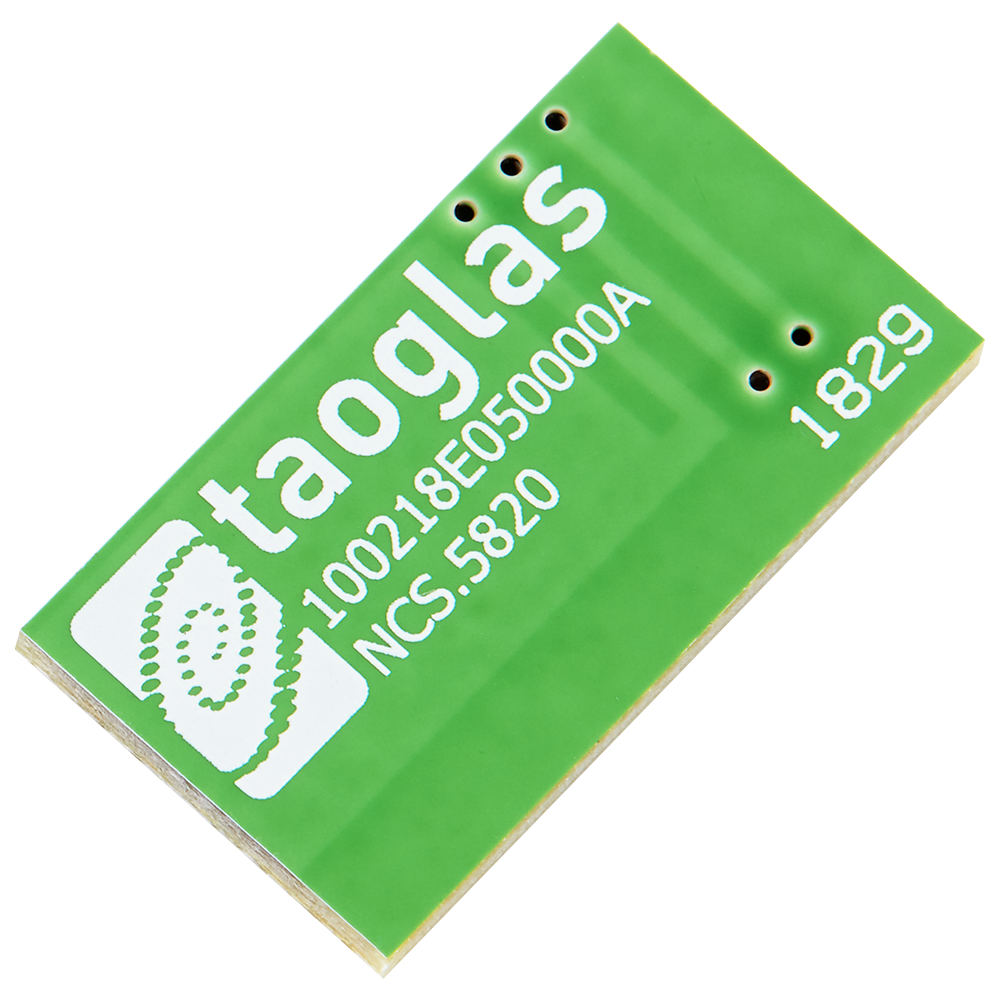

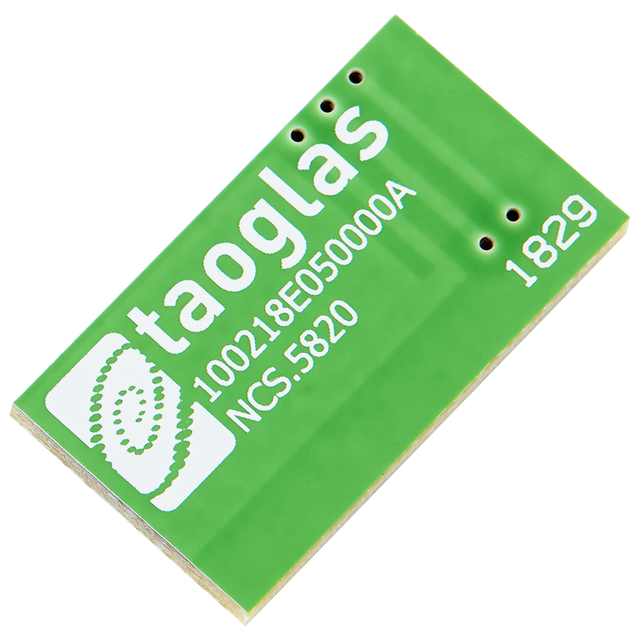

NCS.5820 Antenna Low-Profile 4G/LTE, NB-IoT SMD/SMT chip Extensis for Remote monitoring / Smart meters, Network devices, Smart cities & buildings, Manufacturing automation

NCS.5820 is a compact, low-profile embedded SMD antenna designed to help product designers add low-power cellular IoT connectivity to very small devices.

It supports global NB-IoT coverage across key LTE bands, enabling improved device mobility across regions and carriers compared with single-band alternatives. The small footprint and low height make it well-suited to space-constrained designs while still providing strong efficiency across the supported bands.

• Low-profile, small-footprint embedded design for compact devices
• Global NB-IoT band support to help simplify regional deployments
• Designed for low-power IoT devices where battery life and coverage are critical

Typical use cases include remote monitoring / smart meters, network devices, smart cities & buildings, manufacturing automation, agriculture, and environment & asset tracking.

Technical Specifications

Operating Temperature: -40°C ~ +85°C
Antenna Technologies: Chip
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: NB-IoT
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 20 x 11 x 1.6mm RoHS and REACH compliant
Weight: 0.74 g

NB-IoT (LTE Bands 5, 8 & 20)

Frequency: 791-960MHz
Standards: NB-IoT (LTE Band 5 / Band 8 / Band 20)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 5W
VSWR: <2
Efficiency (%): Band 5: 44.1, Band 8: 48.8, Band 20: 38.1
Peak Gain (dBi): Band 5: 0.60, Band 8: 0.60, Band 20: -0.08
